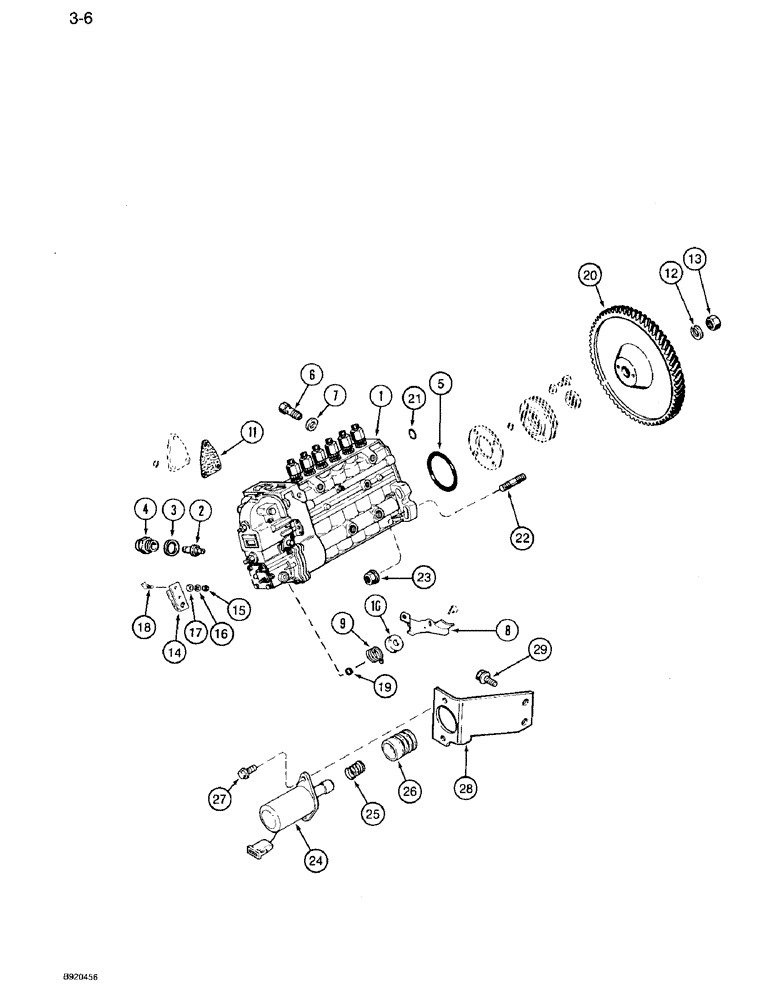

Запчасти Case IH 7110 (3-06) - FUEL INJECTION PUMP AND DRIVE, 6T-830 ENGINE, 7110 TRACTOR ONLY, PRIOR TO ENGINE SERIAL NO. 44827152 (03) - FUEL SYSTEM

JR915683

REMAN-INJECTION PUMP

PUMP ASSEMBLY - injection, remanufactured, North America only, component parts shown on this figure do not apply to the remanufactured assembly

1шт.

JC913339

CORE

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly

1шт.

1

J915683

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection, new, Includes: Ref. 2 - 19

1шт.

2

A77720

PIN

- timing

1шт.

3

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

Plug M18 x 24 x 1.5

1шт.

4

J912888

PLUG

- timing

1шт.

5

A41856

O-RING,3mm Thk x 75mm ID

- sealing

1шт.

6

J913681

BANJO BOLT

VALVE - bolt, overflow

1шт.

7

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

Washer - Sealing, Special 14 x 20 x 1 mm

1шт.

8

J910979

LEVER

- pump shutoff, Replaces: J914094

1шт.

9

J912890

SPRING

- lever shutoff

1шт.

10

691292C1

RETAINER

HOUSING - spring return

1шт.

11

A46322

GASKET

- cover plate

1шт.

12

A77775

LOCK WASHER

- lock, Replaces: J912895

1шт.

13

A41852

LOCK NUT

- hex lock

1шт.

14

1808728C1

LEVER

- throttle control

1шт.

15

1806312C1

NUT

- throttle lever

1шт.

16

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

17

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

18

1808822C1

THUMB SCREW,M6 x 26mm

BOLT - throttle lever

1шт.

19

680187C1

O-RING,2.5mm Thk x 9mm ID

- special sealing

1шт.

20

J912614

GEAR

- fuel pump

1шт.

21

J916284

O-RING

- 12.37 ID x 2.62 mm, fuel pump to gear housing

1шт.

22

J915036

STUD

- pump mounting, 55 mm (2-5/32 in)

4шт.

23

J902662

FLANGE NUT

- hex flange, 10 mm

4шт.

24

J921978

SOLENOID

- fuel shutoff, 12 volt, Includes: Ref. 25 and 26, push-button style, for electrical style order J928160

1шт.

25

J921760

SPRING

- return, plunger, Replaces: A77702

1шт.

26

J924912

BOOT

- protective, plunger, Replaces: A77681

1шт.

27

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

2шт.

28

J916142

SUPPORT

BRACKET - solenoid mounting

1шт.

29

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 20 mm, class 10.9

2шт.
