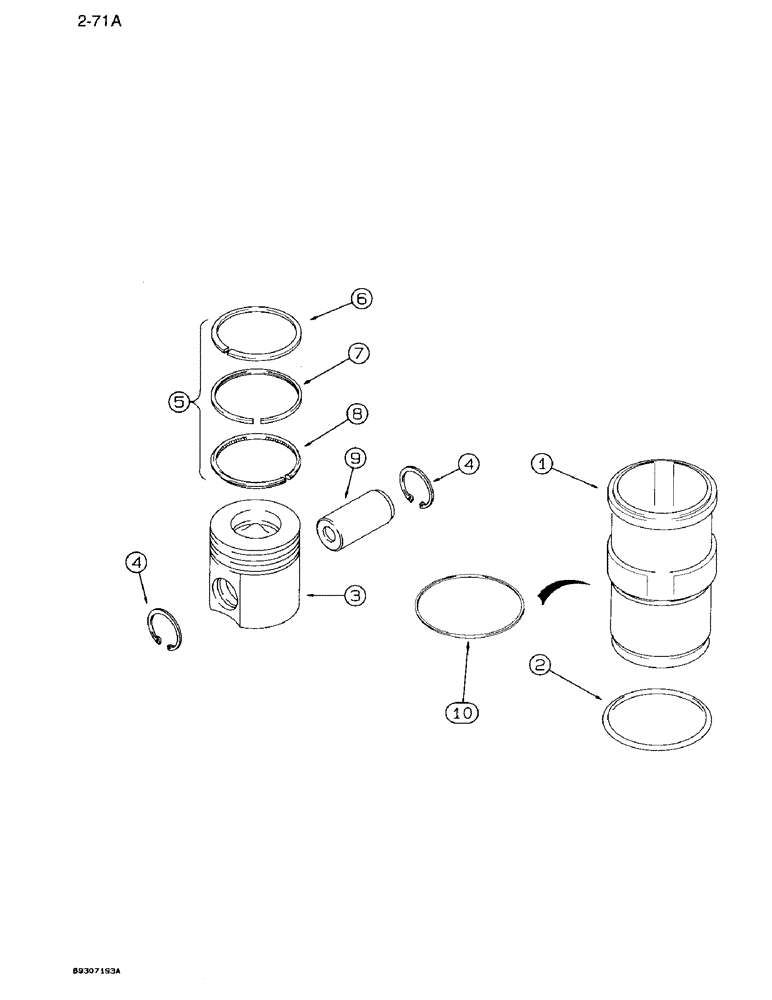

Запчасти Case IH 7110 (2-71A) - PISTONS, 6T-830 ENGINE, PISTONS ENGINE SERIAL NUMBER 44706126 AND AFTER (02) - ENGINE

A77798

PACKAGE, REPAIR

KIT - piston and sleeve, includes piston stamped 9564 or 3163, Includes: Ref. 1 - 8

6шт.

1

J919937

SLEEVE CYLINDER,114.02mm ID x 130.66mm OD x 237.12mm L

SLEEVE - piston

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

O-RING - sleeve

1шт.

A77771

PISTON ASSY.

KIT - piston, standard, includes piston stamped 9564 or 3163, Includes: Ref. 3 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

PISTON - cylinder, stamped 9564 or 3163

1шт.

4

G109044

SNAP RING,1.75", Int, #175

Ring, Snap, 1.75", Int, #175

2шт.

5

A77802

PISTON RING SET

KIT - piston ring, used with piston stamped 9564 or 3163, Replaces: A77744, Includes: Ref. 6, 7, and 8

1шт.

6

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

7

NSS

NOT SOLD SEPARAT

RING - keystone with reverse twist, compression, middle

1шт.

8

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

9

J901597

PIN

- piston

1шт.

10

J924445

SHIM,126.8mm ID x 130.5mm OD x 0.25mm Thk

Cylinder sleeve (.010") 0.254mm Thk

1шт.

Use as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

10

J924446

SHIM,126.8mm ID x 130.5mm OD x 0.38mm Thk

Cylinder sleeve (.015") 0.381mm Thk

1шт.

Use as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

10

J924447

SHIM,126.8mm ID x 130.5mm OD x 0.5mm Thk

Cylinder sleeve (.020") 0.508mm Thk

1шт.

Use as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

10

J924448

SHIM,0.762mm Thk

Cylinder sleeve (.030") 0.762mm Thk

1шт.

Use as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

10

J924449

SHIM,1.000mm Thk

Cylinder sleeve (.040") 1.000mm Thk

1шт.

Use as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.
