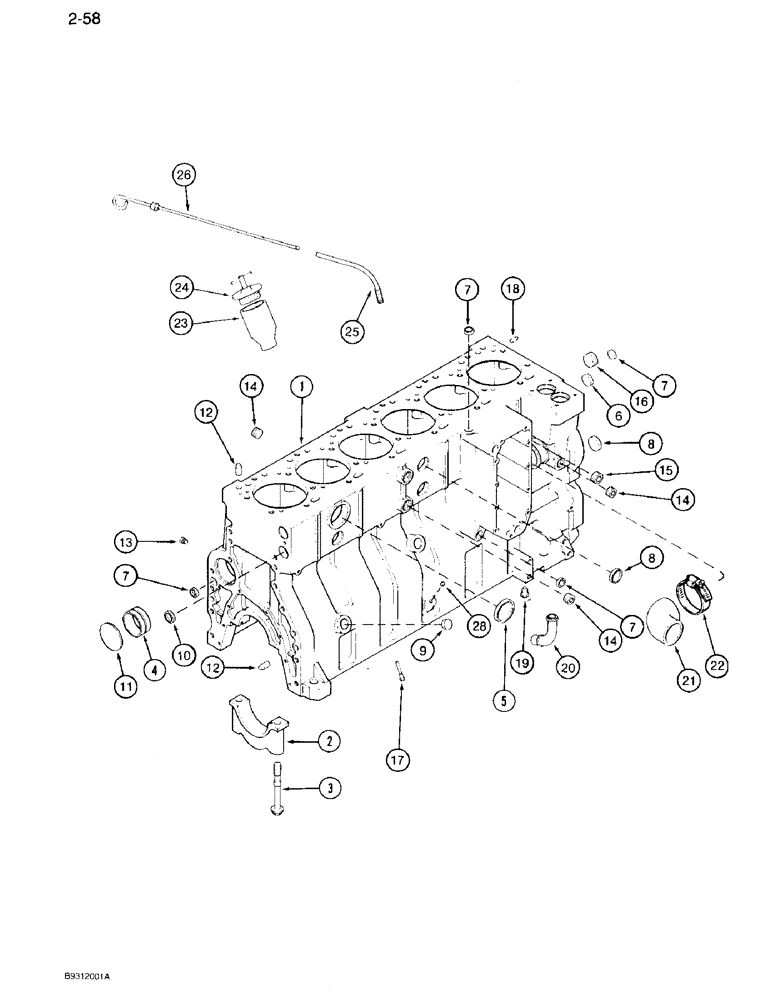

Запчасти Case IH 7110 (2-58) - CYLINDER BLOCK, 6T-830 ENGINE, BLOCK WITH 12 PISTON COOLING NOZZLES, ENGINE S/N 44487830 - 44706125 (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1989005C1
ENGINE ASSEMBLY
ENGINE ASSY ENGINE ASSEMBLY - 6T-830, complete, 7110 Tractor
1шт.
1989005C2
ENGINE ASSEMBLY
ENGINE ASSY ENGINE ASSEMBLY - 6T-830, complete, 7110 Tractor
1шт.
1989006C1
ENGINE ASSEMBLY
ENGINE ASSY ENGINE ASSEMBLY - 6T-830, complete, 7110 Tractor
1шт.
1989006C2
ENGINE ASSEMBLY
ENGINE ASSY ENGINE ASSEMBLY - 6T-830, complete, 7110 Tractor
1шт.
Includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe, uses oil filter and cooler shown on Figure 2-38, for service order 1989098C2 basic engine shown on Figure 2-62
1шт.
AR174398
REMAN-BASIC ENGINE
Remanufactured Basic Engine Assembly, assembly includes short block assembly, cylinder head, valve cover, front cover, oil pan, water pump, thermostat and gasket kit to transfer trim parts
1шт.
AC174398
CORE-BASIC ENGINE
Return Number. KNOWN POTENTIAL CORE VARIATIONS, REFER TO CORE CRITERIA FOR PROPER CORE IDENTIFICATION
1шт.
1989098C1
BASIC ENGINE
ENGINE ASSEMBLY - basic, new
1шт.
JR921843
ENGINE, EXCHANGE
Engine (Exchange) Block Assembly, Short, Remanufactured, Component Parts Shown On This Figure Do Not Apply To The Remanufactured Assembly
1шт.
J921057
CRANKCASE
BLOCK ASSEMBLY short, engine, new, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, uses item 1 sleeve and pistons stamped 8749, 9928, 9564, or 3163, shown on Figure 2-70, Includes: Ref. 1 - 9
1шт.
Order Refs.s 10 - 20 on Figure 2-60, when ordering J921057 short block.
1шт.
JC921057
CORE-SHORT ENGINE
RETURN NUMBER use this part number to return short block core for credit when using a remanufactured assembly, N.A. Only
1шт.
1
J920036
CYLINDER BLOCK
BLOCK ASSEMBLY stripped, engine, Includes: Ref. 2 - 9
1шт.
Order Refs. 10 - 20 when ordering JR920036 block assembly or J920036 stripped block.
1шт.
1
JR920036
CRANKCASE
Block Assembly Stripped, Remanufactured, Component Parts Shown On This Figure Do Not Apply To The Remanufactured Assembly
1шт.
Order Refs. 10 - 20 when ordering JR920036 block assembly or J920036 stripped block.
1шт.
1
JC919374
CORE-ENGINE
Return Part Number, Use This Part Number To Return Stripped Block For Credit When Using a Remanufactured Assembly
1шт.
2
J917313
BEARING CAP
CAP bearing, main
7шт.
3
J916369
FLANGE BOLT,Hex, M14 x 2 x 128mm, Cl 10.9
SCREW, , Main bearing cap to block Hex Flg Hd, M14 x 128
14шт.
5
A77782
PLUG
PLUG expansion, 58 mm O.D., Replaces: J900965
1шт.
6
A77586
PLUG
PLUG expansion, 28.9 mm O.D.
1шт.
7
A77506
PLUG
PLUG - expansion, 21 mm O.D.
4шт.
8
J905401
PLUG
PLUG expansion, 35 mm O.D.
4шт.
9
A77439
PLUG
PLUG expansion, 22 mm O.D.
1шт.
A77716
BLOCK
KIT block hardware, no longer available, order components separately, Includes: Ref. 10 - 20
1шт.
Order Refs. 10 - 20 when ordering JR920036 block assembly or J920036 stripped block.
1шт.
10
A77530
PLUG
PLUG expansion, 30 mm O.D.
2шт.
13
J906619
PLUG,1/8" - 27
PLUG hex, 1/8 inch PT
6шт.
14
A77429
PLUG
PLUG hex socket, 1/2 inch PT
4шт.
15
A77505
PLUG
PLUG hex socket, 3/4 inch PT
2шт.
16
A77533
PLUG
PLUG hex socket, 1 inch PT
1шт.
17
J919003
NOZZLE INJECTION
NOZZLE cooling, piston
12шт.
19
217-103
COCK, DRAIN
VALVE drain, coolant
1шт.
20
J903744
PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L
TUBE turbo drain
1шт.
21
J920762
ELBOW
HOSE elbow, water, Replaces: J909389
1шт.
22
J918521
HOSE CLAMP,59mm - 83mm
CLAMP adjustable, hose, coolant, 1-13/16 - 2-3/4
1шт.
23
J905408
TUBE,35.13 mm ID x 52.39 mm OD x 100 mm L
TUBE filler, oil
1шт.
25
J905778
TUBE,9.52 mm OD x 184.8, 107.7 mm L
TUBE oil dipstick
1шт.
26
J908094
DIPSTICK
DIPSTICK oil
1шт.
27
A77595
KIT
KIT engine block heater, not shown, See Figure 2-56 for component parts
1шт.
28
J900955
PLUG
PLUG, 10 mm, left-hand or right-hand dipstick hole, if used
1шт.
