Запчасти Case IH 7110 (2-48) - CYLINDER HEAD AND VALVE MECHANISM, 6T-830 ENGINE (02) - ENGINE

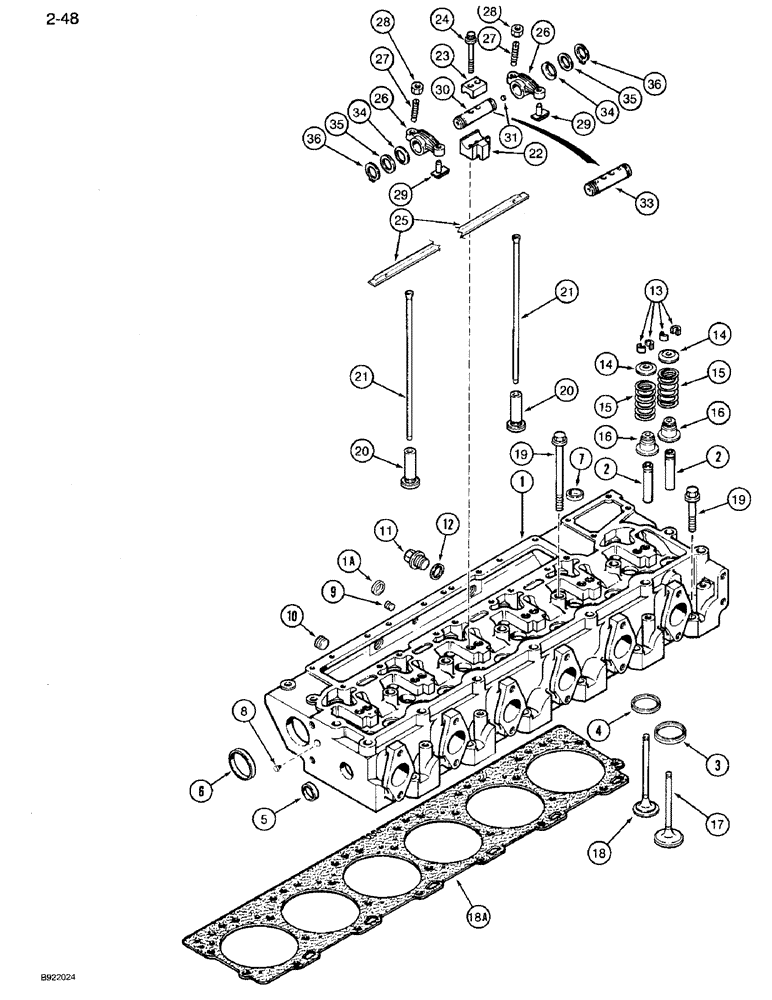

Схема запчастей Case IH 7110 - (2-48) - CYLINDER HEAD AND VALVE MECHANISM, 6T-830 ENGINE (02) - ENGINE
13
11
34
35
36
7
2
21
27
10
22
1a
26
24
20
16
6
28
8
19
20
3
23
33
15
17
14
25
27
5
2
29
34
19
35
18
16
29
14
1
9
31
15
36
18a
26
4
21
28
30
12

Артикул

Название

Примечание

Количество

J925644

HEAD (CYLINDER)

HEAD ASSEMBLY cylinder, new, with valves, Replaces: J913111 and J917768, Includes: Ref. 1 - 18A

1шт.

JR968930

REMAN-CYLINDER HEAD

HEAD ASSEMBLY cylinder, remanufactured, component parts shown on this figure do not apply to the remanufactured assembly, Replaces: JR913111, Includes: Ref. 1 - 18

1шт.

JC968930

CORE-CYLINDER HEAD

Return Part Number

1шт.

JC913111

HEAD (CYLINDER)

Return Part Number

1шт.

1

J919919

HEAD (CYLINDER)

HEAD ASSEMBLY cylinder, without valves, Replaces: J911287, Includes: Ref. 1A - 7

1шт.

1a

J912900

PLUG

PLUG expansion, 24 mm

1шт.

Some early 7100 series Magnum heads may had a threaded hole here with 1/2-14 NPTF. Later heads had a drilled hole with a cup plug installed.

1шт.

2

J923564

VALVE GUIDE

GUIDE stem, valve, Replaces: J901187

12шт.

3

J908830

INSERT

INSERT seat, intake valve

6шт.

3

J914839

INSERT

INSERT seat, intake valve, 0.254 mm oversize, service repair only

6шт.

S/B NTR SB 059 88 FOR CONNECTORS

1шт.

The oversize valve insert is not part of the head assembly and must be ordered separately.

1шт.

4

J904716

INSERT

INSERT seat, exhaust valve

6шт.

4

J914836

INSERT

INSERT seat, exhaust valve, 0.254 mm oversize, service repair only

6шт.

S/B NTR SB 059 88 FOR CONNECTORS

1шт.

The oversize valve insert is not part of the head assembly and must be ordered separately.

1шт.

5

A77530

PLUG

PLUG expansion, 30 mm O.D.

1шт.

6

A77782

PLUG

PLUG expansion, 58 mm O.D., Replaces: J900965

2шт.

7

A77590

PLUG

PLUG expansion, 28,7 mm

5шт.

8

A77534

PLUG

PLUG hex, 1/16 inch PT

1шт.

9

A77428

PLUG

PLUG hex, 1/4 inch PT

1шт.

10

A77429

PLUG

PLUG hex socket, 1/2 inch PT

2шт.

11

J904386

PLUG

PLUG hex flange, 22 mm

2шт.

12

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER seal, plug

2шт.

13

J901177

VALVE

KEEPER valve

24шт.

14

J912976

RETAINER

RETAINER valve spring

12шт.

15

J906412

VALVE SPRING

SPRING, VALVE

12шт.

16

J915707

SEAL

SEAL intake and exhaust valve stem and guide

12шт.

17

J924492

STD INLET VALVE

STD ENGINE INLET VALVE VALVE intake, Replaces: J902253 and J915506

6шт.

18

J921444

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE VALVE exhaust, Replaces: J902254

6шт.

18a

J921850

GASKET

GASKET cylinder head

1шт.

19

J907233

BOLT

BOLT cylinder head, 150 mm long

14шт.

Prior to Engine S/N 44487830

1шт.

19

J917728

BOLT

BOLT cylinder head, 160 mm long

14шт.

Engine S/N 44487830 and after.

1шт.

19

J907234

BOLT

BOLT cylinder head, 70 mm long

12шт.

19

J917729

BOLT,Flng, M14 x 80mm

BOLT cylinder head, 80 mm long

12шт.

Engine S/N 44487830 and after.

1шт.

20

J907240

TAPPET

TAPPET valve, push rod

12шт.

21

J905194

PUSH ROD

ROD push, rocker arm

12шт.

22

J905870

SUPPORT

SUPPORT shaft, rocker arm

6шт.

23

J901693

CLAMP

CLAMP retaining, shaft

6шт.

24

868-10065

12 PT SCREW,M10 x 65mm, Cl 12.9

SCREW, Flg, 12 Pt Hd, M10 x 65, 12.9

12шт.

25

J919677

TUBE

MANIFOLD oil, rocker arm, Replaces: J910911

1шт.

26

J901717

ROCKER

ARM ASSEMBLY rocker, Includes: Ref. 27 - 29

12шт.

27

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW set, adjusting, special

1шт.

28

425-116

NUT,3/8" - 24, Gr 5

NUT hex, jam, 3/8 inch NF

1шт.

29

NSS

NOT SOLD SEPARAT

INSERT rocker

1шт.

30

J915415

SHAFT

SHAFT rocker, no longer available, order J919435 shaft, Ref. 33

6шт.

31

J907555

PLUG

PLUG rocker arm shaft, use with J915415 rocker shaft, Ref. 30, only

12шт.

33

J919435

SHAFT

SHAFT rocker, Replaces: J915415 with plug

6шт.

34

J906100

SPRING CUP

WASHER spring

12шт.

35

J907206

WASHER,22.5mm ID x 30mm OD x 1mm Thk

WASHER flat, end

12шт.

36

B18206

SNAP RING,#87, Ext

Ring, Snap, #87, Ext

12шт.
