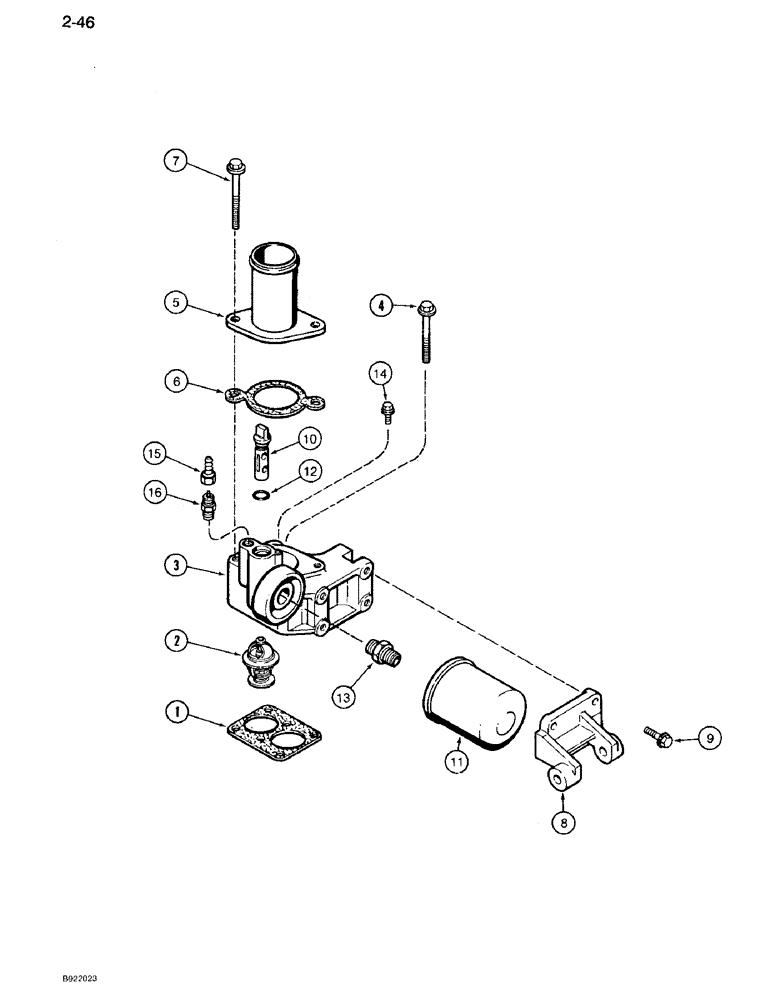

Запчасти Case IH 7110 (2-46) - THERMOSTAT HOUSING, 6T-830 ENGINE (02) - ENGINE

1

J914310

GASKET,0.8mm Thk

thermostat housing

1шт.

2

J907242

THERMOSTAT

coolant, 83 degree C

2шт.

3

J924586

HOUSING

thermostat, Replaces: J913708, Start Serial: 44808257

1шт.

4

845-8080

BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

heavy hex flange, 8 - 1.25 x 80 mm, Serial Range: -44808257

2шт.

4a

J924591

OUTLET

TUBE outlet, Start Serial: 44808257

1шт.

5

J912800

CONNECTION

TUBE outlet

1шт.

6

J918779

GASKET,1.19mm Thk

outlet tube, Replaces: J914309 and A77705

1шт.

7

845-8095

BOLT,Hvy Hex, M8 x 95mm, Cl 8.8

heavy hex flange, 8 - 1.25 x 95 mm

2шт.

8

J918544

SUPPORT

mounting, alternator, Replaces: J911480

1шт.

9

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

heavy hex flange, 8 - 1.25 x 25 mm

4шт.

10

J912837

COCK

VALVE shutoff

1шт.

11

A77544

FILTER

coolant

1шт.

12

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

1шт.

13

A77623

ADAPTER,3/4" - 10 x 11/16" - 16

filter

1шт.

14

845-6010

BOLT,Hvy Hex, M6 x 10mm, Cl 8.8

1шт.

15

J911925

COUPLING

hose

1шт.

16

J911901

VALVE, CHECK

VALVE check

1шт.
