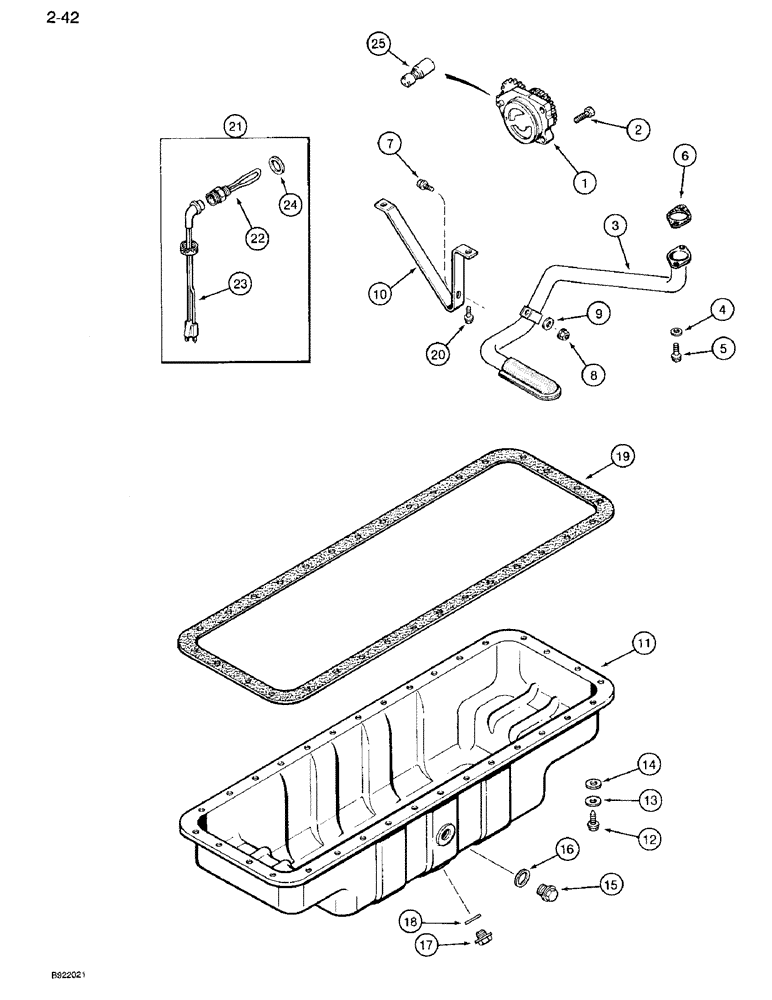

Запчасти Case IH 7110 (2-42) - OIL PUMP, PAN AND HEATER, 6T-830 ENGINE (02) - ENGINE

1

J914007

PUMP, ENGINE OIL

PUMP ASSEMBLY engine oil, new, 28 tooth drive gear, used only on 6 piston cooling nozzle engine, no longer available, for service order A77801 kit, shown below, Serial Range: -44487830

1шт.

Part of oil pump and pressure regulator valve kit P/N A77801.

1шт.

JR910066

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP PUMP ASSEMBLY oil, with 28 tooth drive gear, remanufactured, North America only, used only on 6 piston cooling nozzle engine, Serial Range: -44487830

1шт.

JC910066

PUMP

RETURN NUMBER use this part number to return pump core for credit when using a remanufactured assembly, Serial Range: -44487830

1шт.

1

J924644

PUMP, ENGINE OIL

PUMP ASSEMBLY engine oil, new, 24 tooth drive gear, Replaces: J918213 and J921067, Start Serial: 44487830

1шт.

JR924644

PUMP

PUMP ASSEMBLY oil, with 24 tooth drive gear, remanufactured, North America only, Replaces: JR921067, Start Serial: 44487830

1шт.

JC924644

PUMP

RETURN NUMBER use this part number to return pump core for credit when using a remanufactured assembly, Replaces: JC921067, Start Serial: 44487830

1шт.

JR948071

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

JC948071

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

2

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT hex, CL 8.8, M8 x 1.25 x 30

4шт.

3

J921719

TUBE

TUBE oil suction, with screen, Replaces: J912228

1шт.

4

J908738

SPACER

SPACER mounting

2шт.

5

845-6030

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

BOLT heavy hex flange, 6 - 1.00 x 30 mm

2шт.

6

J914302

GASKET

GASKET mounting, oil tube, Replaces: J906202

1шт.

7

J901865

FLANGE BOLT,Hvy Hex, M6 x 20mm, Cl 8.8, Full Thd

BOLT hex flange, special

1шт.

8

J906216

FLANGE NUT

NUT hex flange, special, M6

1шт.

9

J910960

WASHER

WASHER flat, retaining

1шт.

10

J913427

BRACE

BRACE suction tube, Replaces: J910785

1шт.

11

J914015

ENGINE OIL PAN

PAN oil, engine, Replaces: J912003

1шт.

12

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

BOLT, Hex, Flg Hd, M8 x 25, Spcl

32шт.

13

J910266

LOCK WASHER

WASHER spring, Belleville

32шт.

14

J908316

WASHER

WASHER flat, M9 x 16 x 1

32шт.

15

J924148

PLUG,M22 x 1.5

PLUG oil, heater hole, Replaces: J904386

1шт.

16

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER sealing

1шт.

17

J924147

PLUG,M18 x 1.5

PLUG drain, oil, magnetic, Replaces: J911638

1шт.

18

J920773

SEALING WASHER

WASHER sealing

1шт.

19

NSS

NOT SOLD SEPARAT

GASKET pan, oil

1шт.

20

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

BOLT, Hex Flg, M6 x 15, 8.8, Full Thd

2шт.

21

A77580

SERVICE KIT

KIT heater, oil pan, also order item 24, J902425 washer, Includes: Ref. 22 and 23

1шт.

22

NSS

NOT SOLD SEPARAT

ELEMENT heater, 120 volt

1шт.

23

J905113

CABLE

CABLE heater, 6 foot

1шт.

24

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER sealing

1шт.

25

J918532

PLUNGER

PLUNGER pressure regulator, use with item 1, J921067 pump, Serial Range: -44487830

1шт.

Part of oil pump and pressure regulator valve kit P/N A77801.

1шт.

A77679

GASKET KIT

KIT gasket, oil pan, Includes: Ref. 6, 16, 18 and 19, Replaces: A77583

1шт.

A77801

PACKAGE

KIT oil pump and pressure regulator valve, Includes: Ref. 1, J921067 pump assembly and Ref. 25, J918532 plunger, use to replace oil pump prior to Engine Serial Number 44487830, Includes: Ref. 1 (P/N J914007) and Ref. 25

1шт.
