Запчасти Case IH 7110 (2-18) - EXHAUST SYSTEM, P.I.N. JJA001835 THROUGH JJA0033578 (02) - ENGINE

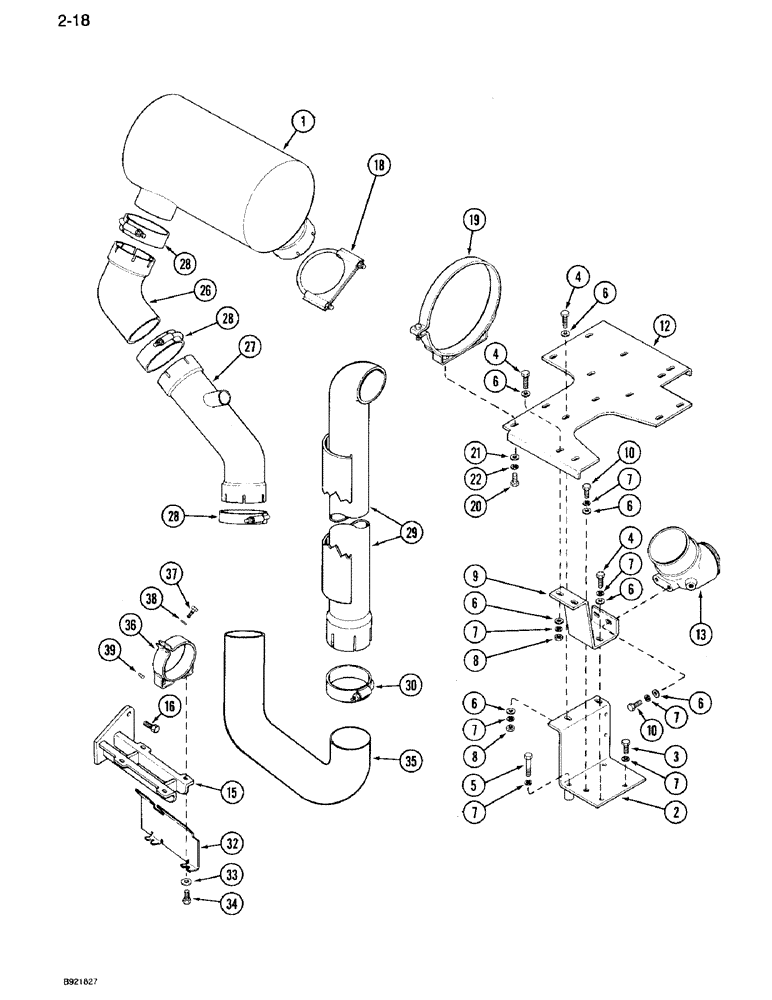

Схема запчастей Case IH 7110 - (2-18) - EXHAUST SYSTEM, P.I.N. JJA001835 THROUGH JJA0033578 (02) - ENGINE
7
30
4
34
37
36
4
35
16
4
2
22
18
13
1
7
21
38
9
7
10
8
7
8
28
15
39
29
12
6
33
6
6
19
7
10
6
26
6
28
7
7
3
27
32
6
6
20
5
28

Артикул

Название

Примечание

Количество

1

A184157

MUFFLER

exhaust

1шт.

2

1289169C2

BRACKET

muffler support

1шт.

3

814-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

4

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

5

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 21 x 2 mm

1шт.

7

892-1110

LOCK WASHER,M10

WASHER lock, 10 mm

1шт.

8

825-1110

NUT,M10, Cl 8

hex M10, Cl 8

2шт.

9

REF

INSTRUCTION

BRACKET elbow, See Figure 2-34

1шт.

10

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

3шт.

12

REF

INSTRUCTION

SUPPORT air cleaner, See Figure 2-8

1шт.

13

REF

INSTRUCTION

ELBOW turbocharger, See Figure 2-34

1шт.

15

1342060C1

SUPPORT

BRACKET exhaust

1шт.

16

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

3шт.

18

A184592

CLAMP

muffler

1шт.

19

A173223

MOUNTING CLIP

CLAMP retaining

1шт.

20

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

1шт.

21

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 21 x 2 mm

1шт.

22

892-1110

LOCK WASHER,M10

WASHER lock, 10 mm

1шт.

26

A184564

ELBOW

TUBE exhaust

1шт.

27

A184565

PIPE

TUBE ejector exhaust

1шт.

28

A173381

CLAMP,117.7mm ID

retaining

3шт.

29

1342150C1

PIPE

EXTENSION, Includes: shield, exhaust

1шт.

30

A173381

CLAMP,117.7mm ID

retaining

1шт.

32

1342143C1

COVER

bracket, exhaust

1шт.

33

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 2 mm

4шт.

34

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

hex, 8 x 25 mm

4шт.

35

1342006C1

PIPE

exhaust, lower

1шт.

36

1342185C2

CLAMP,114.3mm - 130mm

exhaust

2шт.

37

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

38

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 21 x 2 mm

4шт.

39

825-1410

NUT,M10, Cl 8

2шт.

Выбрано товаров: 32
