Запчасти Case IH 7110 (9-120) - CAB DOOR RETAINING PARTS (09) - CHASSIS/ATTACHMENTS

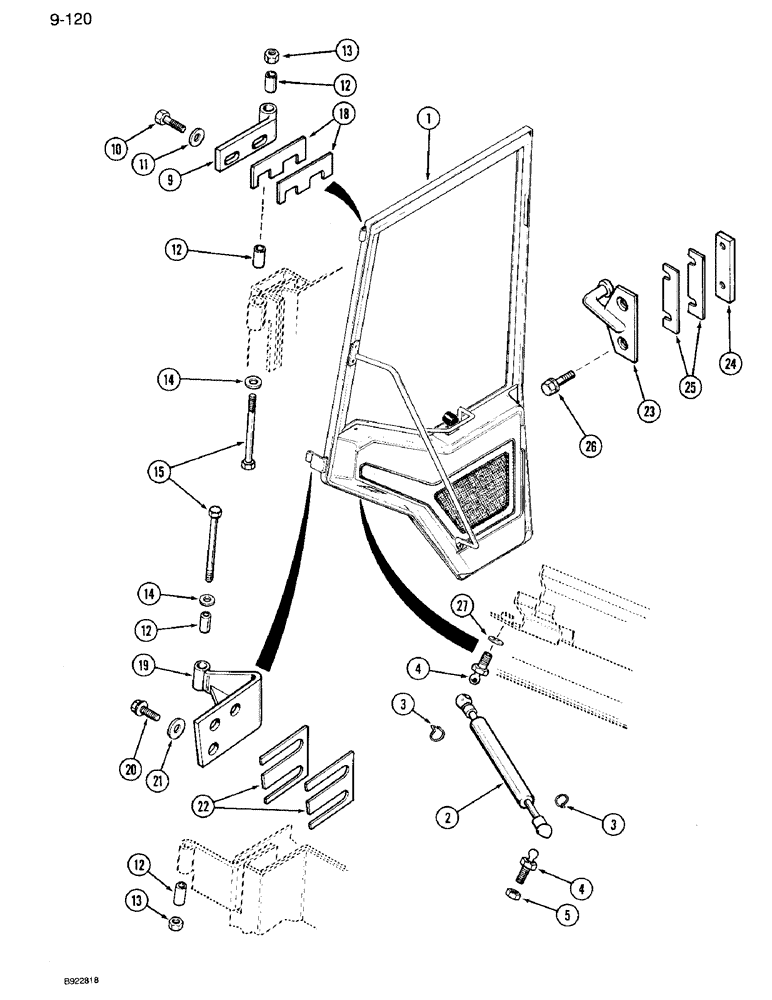

Схема запчастей Case IH 7110 - (9-120) - CAB DOOR RETAINING PARTS (09) - CHASSIS/ATTACHMENTS
13
10
12
21
1
2
12
3
11
14
5
22
13
20
9
15
23
18
19
26
3
12
24
4
4
14
27
12
25

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

See Figure 9-118

1шт.

2

1280263C1

CYLINDER ASSY.

CYLINDER - door

1шт.

3

3233348R1

CLIP

- retaining

2шт.

4

3234063R1

BALL STUD,M10 x 1.5

STUD - ball

2шт.

5

829-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 10

- hex flange, 8 mm

1шт.

9

96627C2

HINGE

- door, upper

1шт.

Includes one each of Refs. 3 and 4 also includes A67967 door assembly on Figure 9-118.

1шт.

10

121-116

SERRATED BOLT,Hex, 5/16" - 18 x 1"

2шт.

11

195-81005

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

- flat, 3/8 x 7/8 x 5/64 inch

2шт.

12

96676C2

BUSHING

- hinge

4шт.

Includes one each of Refs. 3 and 4 also includes A67967 door assembly on Figure 9-118.

1шт.

13

231-4115

NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

2шт.

Includes one each of Refs. 3 and 4 also includes A67967 door assembly on Figure 9-118.

1шт.

14

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

Includes one each of Refs. 3 and 4 also includes A67967 door assembly on Figure 9-118.

1шт.

15

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

- hex, 5/16 NC x 3 inch

2шт.

Includes one each of Refs. 3 and 4 also includes A67967 door assembly on Figure 9-118.

1шт.

18

97060C1

SHIM

- hinge, upper

1шт.

19

96623C2

HINGE

- door, lower

1шт.

Includes one each of Refs. 3 and 4 also includes A67967 door assembly on Figure 9-118.

1шт.

20

121-116

SERRATED BOLT,Hex, 5/16" - 18 x 1"

3шт.

21

195-81005

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

- flat, 3/8 x 7/8 x 5/64 inch

3шт.

22

97061C1

SHIM

- hinge, lower

1шт.

23

1283245C2

PLATE ASSY.

PLATE - striker

1шт.

24

1283244C1

PLATE ASSY.

PLATE - tapping

1шт.

25

1283255C1

SHIM

- striker

1шт.

26

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

27

396-31041

WASHER,10.31mm ID x 20.63mm OD x 3.4mm Thk

1шт.

Includes one each of Refs. 3 and 4 also includes A67967 door assembly on Figure 9-118.

1шт.
