Запчасти Case IH 7110 (9-096) - SEAT BELT, VINYL SEAT WITHOUT SWIVEL (09) - CHASSIS/ATTACHMENTS

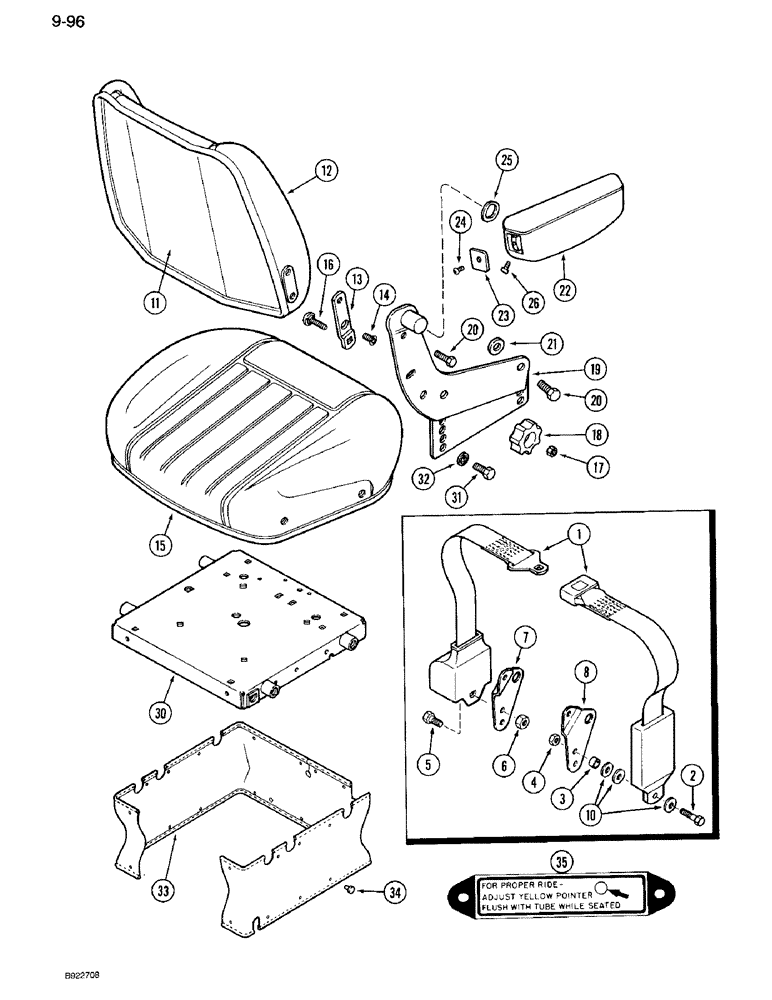

Схема запчастей Case IH 7110 - (9-096) - SEAT BELT, VINYL SEAT WITHOUT SWIVEL (09) - CHASSIS/ATTACHMENTS
23
31
17
24
13
25
11
12
7
21
26
15
18
2
5
35
20
16
30
20
14
1
22
8
10
34
6
19
3
32
4
33

Артикул

Название

Примечание

Количество

1

1343982C1

SAFETY BELT

SAFETY BELT, Replaces 1954788C1

1шт.

2

326-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 8

1шт.

3

S5375

SPACER,3/8" Pipe x 3/8"

- bolt

1шт.

4

131-1217

LOCK NUT,7/16"-14, GC

NUT - hex, self-locking, 7/16 inch NC

1шт.

5

326-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1шт.

6

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

1шт.

7

1974766C1

SUPPORT

BRACKET - retainer, belt

1шт.

8

1974765C1

SUPPORT

BRACKET - retainer, belt right

1шт.

10

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

- flat, 17/32 x 1-1/16 x 3/32 inch

3шт.

A177457

SEAT

AND SUSPENSION ASSEMBLY - vinyl, without swivel, Includes: Ref. 11 - 35 and P/N's A177457 and 1987124C1

1шт.

1987124C1

CUSHION, SEAT

CUSHION KIT - backrest and seat, vinyl, Replaces: A49655 and A45570, Includes: Ref. 11 - 15 and P/N's A49655, N9034, and N6674, without swivel

1шт.

A49655

BACKREST

KIT - backrest, vinyl, seat, without swivel, Includes: Ref. 11 - 14 and trim and clip

1шт.

11

NSS

NOT SOLD SEPARAT

PAN - backrest, seat, vinyl, without swivel

1шт.

12

NSS

NOT SOLD SEPARAT

PAD AND COVER - backrest, seat, vinyl, without swivel

1шт.

13

A48343

LINK

- tilt, backrest, seat, vinyl, without swivel

2шт.

14

473-13816

SCREW,FLAT, 3/8" - 16 x 1"

- self-tapping, flat Phillips, 3/8 NC x 1 inch, seat, vinyl, without swivel

2шт.

N9034

SEAT

TRIM - backrest, seat, vinyl, without swivel

1шт.

N6674

CLIP

- trim, seat, vinyl, without swivel

1шт.

1987103C1

CUSHION

KIT - seat cushion, vinyl, without swivel, includes pad, pan, trim and clip

1шт.

15

NSS

NOT SOLD SEPARAT

PAD - seat cushion, vinyl, without swivel

1шт.

NSS

NOT SOLD SEPARAT

PAN - seat, vinyl, without swivel

1шт.

N9034

SEAT

TRIM - seat, 5.08 feet, vinyl, without swivel

1шт.

N6674

CLIP

- trim, seat, vinyl, without swivel

1шт.

16

A45527

CARRIAGE BOLT

- retaining, link, use 130669A1, seat, vinyl, without swivel

2шт.

17

131-206

NUT,3/8"-16

NUT - hex jam, 3/8 inch NC, use 130669A1, seat, vinyl, without swivel

2шт.

18

A45487

BUTTON

KNOB - tilt, backrest, use 130669A1, seat, vinyl, without swivel

2шт.

19

A49656

SUPPORT

BRACKET - right side, shown, seat, vinyl, without swivel

1шт.

19

NLS

NO LONGER SERVICED

BRACKET - left side, seat, vinyl, without swivel

1шт.

20

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

Seat, Vinyl, without swivel Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

21

A45116

WASHER

SPACER - cushion, seat, vinyl, without swivel

4шт.

A45489

ARMREST

KIT - seat, right-hand, shown, vinyl, without swivel, Replaces: 1987125C1

1шт.

A45488

ARMREST

KIT - seat, left-hand, includes: Ref. 22 - 26 vinyl, without swivel

1шт.

22

NSS

NOT SOLD SEPARAT

ARMREST - right, shown, seat, vinyl, without swivel

1шт.

22

NSS

NOT SOLD SEPARAT

ARMREST - left, seat, vinyl, without swivel

1шт.

23

NSS

NOT SOLD SEPARAT

COVER PLATE - right armrest shown, Replaces: A45584, seat, vinyl, without swivel

1шт.

23

NSS

NOT SOLD SEPARAT

COVER PLATE - left armrest, seat, vinyl, Replaces: A45583, without swivel

1шт.

24

263-50510

SELF-TAP SCREW,Slotted Pan Hd, #10 x 5/8"

SCREW - self-tapping, pan head slotted, No. 10-16 x 5/8 inch, seat, vinyl, without swivel

1шт.

25

A47352

WASHER

- wave, 1-1/8 inch ID, seat, vinyl, without swivel

2шт.

26

413-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

SCREW - armrest, Replaces: A45572, seat, vinyl, without swivel

2шт.

Bolt is 3/8 x 4-1/4-16 hex head, this will not work here. Order A45572 Allen wrench head bolt, overall length is just over 3/4".

1шт.

30

A46726

HOUSING

PLATE - upper housing, seat, vinyl, without swivel

1шт.

31

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Seat, vinyl, without swivel Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

32

193-92

LOCK WASHER,Int Tooth, 5/16"

WASHER - internal lock, 5/16 inch, seat, vinyl, without swivel

4шт.

138929A1

BOOT

KIT - boot, seat, vinyl, without swivel, Includes: Ref. 33 and 34

1шт.

33

NSS

NOT SOLD SEPARAT

COVER - suspension, Replaces: A45576, seat, vinyl, without swivel

1шт.

34

151-705

CLIP,Rd 1/2" Hd, 1/4" Hole

RIVET - snap button, 1/2 inch, seat, vinyl, without swivel

24шт.

35

A47778

DECAL

- instruction, seat, vinyl, without swivel

1шт.

Выбрано товаров: 47
