Запчасти Case IH 7110 (9-090) - AIR SUSPENSION SEAT, SUSPENSION, P.I.N. JJA0028200 AND AFTER (09) - CHASSIS/ATTACHMENTS

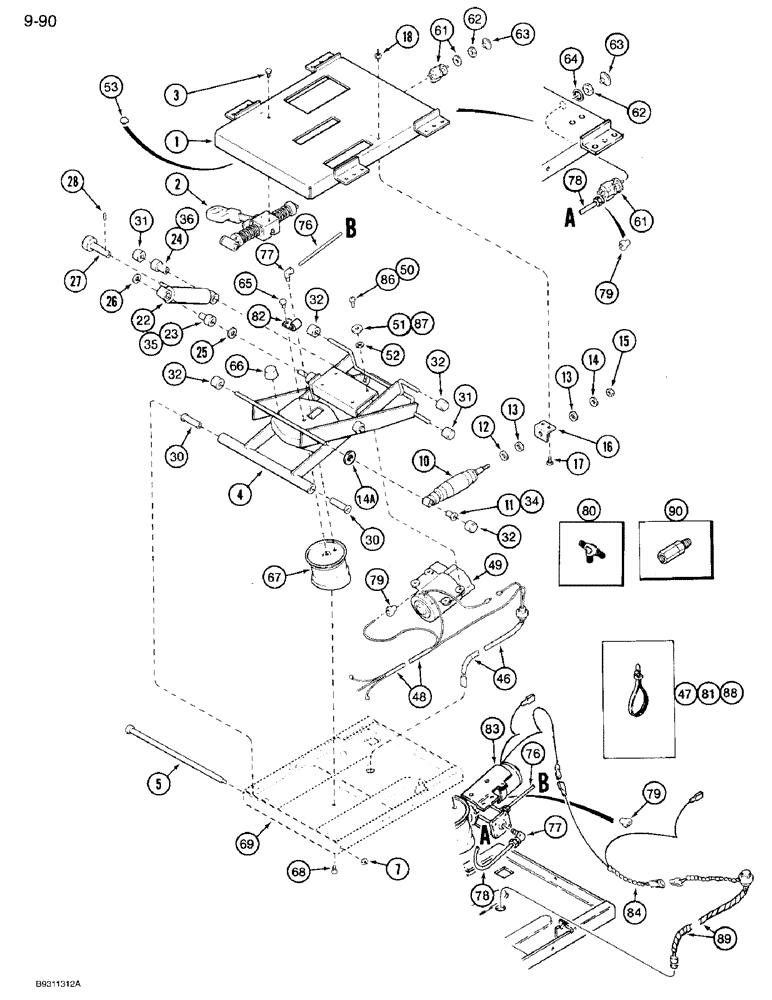

Схема запчастей Case IH 7110 - (9-090) - AIR SUSPENSION SEAT, SUSPENSION, P.I.N. JJA0028200 AND AFTER (09) - CHASSIS/ATTACHMENTS
53
13
52
61
79
3
79
65
2
18
10
77
64
49
14
51
22
63
48
31
36
62
80
63
28
17
87
84
61
13
62
23
30
16
67
5
81
77
86
83
32
46
66
78
31
47
14a
32
76
25
32
35
90
76
1
4
68
50
69
24
7
32
79
88
27
78
15
82
30
11
26
34
12
89

Артикул

Название

Примечание

Количество

1987214C4

SEAT ASSY.

SEAT ASSEMBLY - air suspension, without brackets, no longer available, order 1999936C1 on Figure 9-95A, Replaces: 1987214C3, Includes: Ref. 1 - 90 and 1990641C2

1шт.

1990641C2

PACKAGE

KIT - seat suspension, parts list Figure 9-90 - 9-94, Replaces: 1990641C21, Includes: Ref. 1 - 90

1шт.

1

1990642C1

HOUSING

- upper, suspension

1шт.

2

1990645C1

LATCH

- isolator, fore and aft, parts list Figure 9-94

1шт.

3

276-24812

SELF-TAP SCREW,5/16" - 18 x 3/4"

SCREW, SELF TAPPING, hex head, 5/16 NC x 3/4"

2шт.

4

1990643C1

FRAME ASSY

ARM - scissor, suspension

1шт.

5

A49529

SHAFT

- scissor arm

1шт.

7

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex lock, 3/8 inch NC

1шт.

1990646C3

PACKAGE

KIT - shock absorber, Includes: Ref. 10 and 11, 12 - 15, 17, and 18

1шт.

10

NSS

NOT SOLD SEPARAT

ABSORBER - shock

1шт.

11

NSS

NOT SOLD SEPARAT

BEARING - fore/aft, shock absorber

1шт.

12

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

13

A49679

BUSHING

WASHER - rubber

2шт.

14

A49678

WASHER

- flat, 21/64 x 1 x 5/64 inch

1шт.

14a

NSS

NOT SOLD SEPARAT

SPACER - shock, if used

1шт.

15

131-1169

LOCK NUT,5/16"-24, GA

NUT, LOCK, 5/16"-24, GA

1шт.

16

1981845C1

ANGLE

- mounting

1шт.

17

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

Bolt, Carriage, Short NK, 1/4"-20 x 1/2", G5, Full Thd

2шт.

18

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.

1987218C2

PACKAGE

KIT - shock absorber, Replaces: 1987218C1, Includes: Ref. 22 - 24

1шт.

22

NSS

NOT SOLD SEPARAT

ABSORBER - shock

1шт.

23

NSS

NOT SOLD SEPARAT

BEARING - shock

1шт.

24

NSS

NOT SOLD SEPARAT

BEARING - shock

1шт.

25

A45519

WASHER

- flat, 33/64 x 1-1/8 x 1/16 inch

1шт.

26

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

1шт.

27

1343853C1

LEVER ASSY & KNOB

KNOB - control, damping

1шт.

28

138-317

LOCK PIN,1/8" x 5/8", Slotted

PIN, 1/8" x 5/8", Slotted

1шт.

1990644C2

PACKAGE

KIT - bearing, Includes: Ref. 30 - 37

1шт.

30

NSS

NOT SOLD SEPARAT

BUSHING - shaft

2шт.

31

NSS

NOT SOLD SEPARAT

ROLLER - suspension

2шт.

32

NSS

NOT SOLD SEPARAT

ROLLER - bearing

4шт.

33

NSS

NOT SOLD SEPARAT

BEARING - isolator latch tube, not shown, See Ref. 20 on Figure 9-94

1шт.

34

NSS

NOT SOLD SEPARAT

BEARING - fore/aft shock

1шт.

35

NSS

NOT SOLD SEPARAT

BEARING - suspension shock, upper

1шт.

36

NSS

NOT SOLD SEPARAT

BEARING - suspension shock, lower

1шт.

37

NSS

NOT SOLD SEPARAT

BEARING - latch bar, not used, not shown

1шт.

46

1981848C2

HARNESS

- wire, no longer in suspension kit, order separately, Replaces: 1981848C1, no longer used, order 134237A1, Ref. 84, Replaces: 1981848C1

1шт.

47

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 6 inch long

1шт.

48

1343833C1

TUBE

TUBING - corrugated, 3/8 ID x 24 inch, if used

1шт.

49

1999947C1

COMPRESSOR

- air, no longer available, order 1999947C3, see Ref. 83 - 89, Replaces: 1981843C1 and 1981843C2

1шт.

Order fitting kit (1990548C3, Refs. 76-82) when replacing Ref. 49 compressor.

1шт.

50

440-1086

SCREW,Cross Pan Hd, #8-32 x 3/8"

- pan head cross recess, No. 8-32 x 3/8"

2-4шт.

51

495-31022

WASHER,#10

2-4шт.

52

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64"), If used, Replaces 1974732C1 5/16"

4шт.

1981852C2

IGNITION SWITCH

SWITCH ASSEMBLY - air control, no longer includes flat washer, Includes: Ref. 61 - 64

1шт.

61

NSS

NOT SOLD SEPARAT

SWITCH - air control

1шт.

62

NSS

NOT SOLD SEPARAT

NUT - hex, jam, 5/8 inch NF

1шт.

63

1987186C1

BUTTON

KNOB - switch

1шт.

64

493-11065

LOCK WASHER,Ext-Int Tooth, 5/8"

WASHER, LOCK, Ext-Int Tooth, 5/8"

1шт.

65

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

1шт.

66

1981849C2

SHOCK ABSORBER

BUMPER - rubber, Replaces: 1981849C1

2шт.

67

1981842C1

SPRING

- air

1шт.

68

443-13812

SCREW,Cross Flat Hd, 3/8"-16 x 3/4"

- machine, flat head cross recess, 3/8 NC x 3/4"

1шт.

69

REF

INSTRUCTION

HOUSING - lower, suspension, See Figure 9-94

1шт.

1990548C3

PACKAGE

KIT - air line and fittings, Replaces: 1990548C1, Includes: Ref. 76 - 82

1шт.

76

NSS

NOT SOLD SEPARAT

TUBE - nylon, 1/4 x 11-5/8 inch, replaces 5/32 O.D. x 6 inch tube

1шт.

77

NSS

NOT SOLD SEPARAT

ELBOW - 90 degree, 1/8 PT x 5/32 inch tube

1-2шт.

78

NSS

NOT SOLD SEPARAT

TUBE - nylon, 1/4 x 28 inch, replaces 5/32 O.D. x 33 inch tube

1шт.

79

NSS

NOT SOLD SEPARAT

ADAPTER - 1/8 PT x 5/32 inch tube

1-2шт.

80

NSS

NOT SOLD SEPARAT

TEE - male, 5/32 x 5/32 tube x 1/8 NPT, if used

1шт.

81

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

4шт.

82

NSS

NOT SOLD SEPARAT

CLAMP - J-type

1шт.

1999947C3

COMPRESSOR

KIT - compressor, Includes: Ref. 83 - 89

1шт.

83

NSS

NOT SOLD SEPARAT

COMPRESSOR - air, mounts to left-hand holes in suspension arm

1шт.

84

134237A1

HARNESS

- compressor

1шт.

85

NSS

NOT SOLD SEPARAT

SPACER - 7/32 ID x 11/32 O.D., not used, not shown

2шт.

86

440-1086

SCREW,Cross Pan Hd, #8-32 x 3/8"

- pan head cross recess, No. 8-32 x 3/8"

2шт.

87

495-31022

WASHER,#10

2шт.

88

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

89

134456A1

HARNESS

- wire adapter, with grommet

1шт.

90

1990650C1

VALVE

- check, if used

1шт.
