Запчасти Case IH 7110 (9-076) - AIR SUSPENSION SEAT, SEAT BELT, CUSHIONS AND ARM RESTS, PRIOR TO SERIAL NUMBER JJA0028200 (09) - CHASSIS/ATTACHMENTS

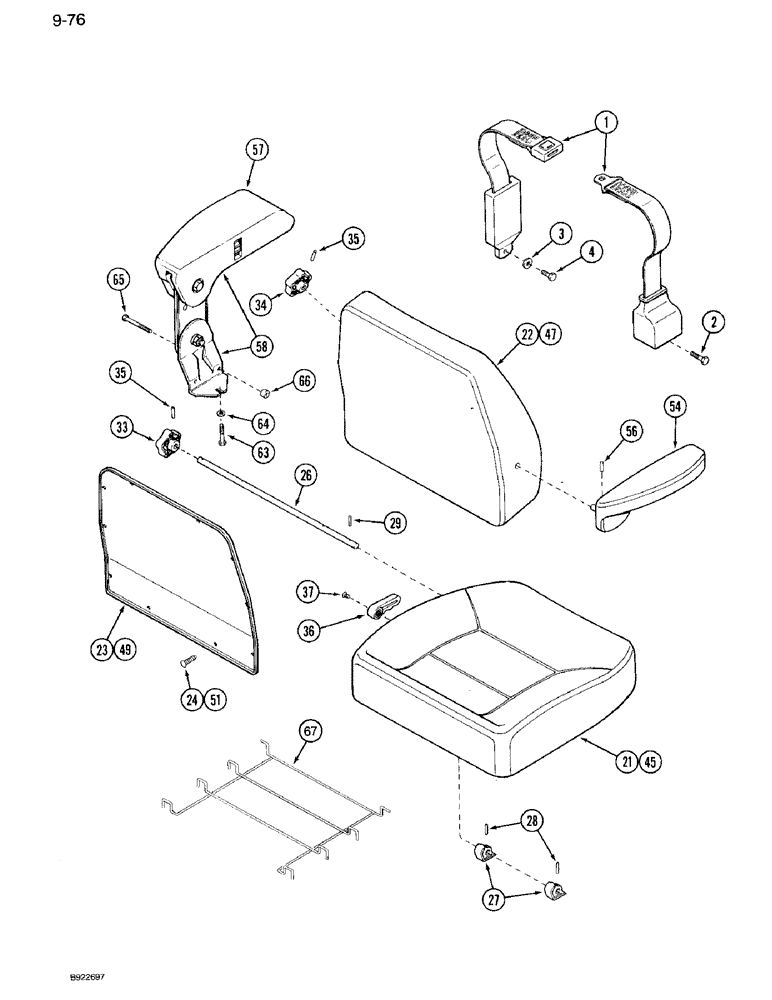

Схема запчастей Case IH 7110 - (9-076) - AIR SUSPENSION SEAT, SEAT BELT, CUSHIONS AND ARM RESTS, PRIOR TO SERIAL NUMBER JJA0028200 (09) - CHASSIS/ATTACHMENTS
23
33
27
3
58
35
24
45
67
4
21
29
49
63
54
65
34
37
47
1
2
26
56
22
36
35
57
64
51
66
28

Артикул

Название

Примечание

Количество

1340097C3

SEAT

ASSEMBLY - air suspension, with seat belt and brackets, no longer available, order 1999936C1 on Figure 9-95A, Replaces: 1340097C2, Includes: Ref. 1 - 66

1шт.

1

1343982C1

SAFETY BELT

SAFETY BELT, Order 1344158C1 kit shown on Figure 9-86 which includes mounting bracket

1шт.

2

328-724

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 8

1шт.

3

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

- flat, 17/32 x 1-1/16 x 3/32 inch

1шт.

4

328-716

BOLT,Hex, 7/16" - 20 x 1", Gr 8

- hex, 7/16 NF x 1-1/2 inch, Grade 8

1шт.

1340096C1

SEAT

ASSEMBLY - air suspension, without belt and brackets, no longer available, order 1999936C1 on Figure 9-95A, Includes: Ref. 21 - 66 and Cushion Kit

1шт.

1344004C3

SEAT ASSY.

CUSHION KIT - seat and backrest, Replaces: 1343846C1 and 1344004C1, Includes: Ref. 21 - 37

1шт.

21

NSS

NOT SOLD SEPARAT

CUSHION - seat, order Ref. 45

1шт.

22

132886A1

BACKREST

CUSHION seat, order Ref. 47

1шт.

23

NSS

NOT SOLD SEPARAT

COVER - backrest order Ref. 49

1шт.

24

1974722C1

CLIP,ELECTRICAL

CLIP - retaining

10шт.

1343847C2

SHAFT ASSY.

SHAFT ASSEMBLY - cam, seat tilt, Replaces: 1343847C1, Includes: Ref. 26 - 28

1шт.

26

NSS

NOT SOLD SEPARAT

SHAFT - cam, Replaces: 1343848C1

1шт.

27

NSS

NOT SOLD SEPARAT

CAM - seat tilt, Replaces: 1343828C1

2шт.

28

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

2шт.

29

138-2022

PIN,5/32" x 1 1/4", Coiled

1шт.

33

1981826C1

KNOB

- seat tilt, order 1999691C1 kit, Figure 9-78

1шт.

34

1981828C1

BUTTON

KNOB - lumbar, order 1999691C1 kit, Figure 9-78

1шт.

35

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, , In 1999691C1 kit, Figure 9-78 5/32" x 1", Slotted

2шт.

36

1987212C1

PACKAGE

LEVER ASSEMBLY - backrest tilt, order 1999691C1 kit, Figure 9-78, Replaces: 1974711C1, Includes: Ref. 37

1шт.

37

30299R1

SCREW,Cross Oval Hd, M6 x 12

- machine, oval head cross recess, 6 x 12 mm

1шт.

45

1974701C2

CUSHION, SEAT

KIT - seat cushion, Replaces: 1974701C1, includes cushion and ring

1шт.

Also order Ref. 67 support shown on this Fig. and P/N 1343847C2 shaft assembly, Ref. 10 - 12 on Fig. 9-86 for seats prior to seat S/N 683824.

1шт.

NSS

NOT SOLD SEPARAT

CUSHION - seat

1шт.

NSS

NOT SOLD SEPARAT

RING - hog

48шт.

47

1974702C2

PACKAGE,SERVICE

KIT - backrest cushion, Replaces: 1974702C1, includes cushion and ring

1шт.

Uses P/N 132886A1 Seat Back cushion.

1шт.

NSS

NOT SOLD SEPARAT

CUSHION - backrest

1шт.

NSS

NOT SOLD SEPARAT

RING - hog

44шт.

49

1974713C2

PACKAGE

KIT - backrest cover, Replaces: 1974713C1, Includes: Ref. 51 and cover

1шт.

NSS

NOT SOLD SEPARAT

COVER - backrest

1шт.

51

1999693C1

KIT

CLIP - retaining, bag of 12, Replaces: 10 of 1974722C1

1шт.

54

1974703C2

ARMREST ASSY.

KIT - armrest, right-hand, includes armrest and pin

1шт.

NSS

NOT SOLD SEPARAT

ARMREST - seat, right-hand

1шт.

56

NSS

NOT SOLD SEPARAT

PIN - drive

1шт.

57

1974704C1

ARMREST

KIT - armrest, left-hand, alternative part is ref. 58

1шт.

58

107394A1

ARMREST

KIT - armrest, black, left-hand, includes adjusting mechanism, alternative part is Ref. 57, Replaces: 1344182C1

1шт.

107399A1

SET OF PARTS

KIT - service, adjustable armrest, includes wheel, cable, hub, and hardware, not shown, Replaces: 1999682C1

1шт.

The Thumb Wheel is NSS.

1шт.

63

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch, Replaces 413-532

1шт.

64

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16"), If used

1шт.

65

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

- hex, 5/16 NC x 2-3/4 inch, Replaces 413-548

2шт.

66

1343875C1

SPACER

- 25/64 ID x 1/2 inch

2шт.

67

1999440C1

SUPPORT

- seat cushion, not included in 1340097C3 seat assembly

1шт.
