Запчасти Case IH 7110 (9-070) - SEAT SWIVEL, AIR/OIL SUSPENSION (09) - CHASSIS/ATTACHMENTS

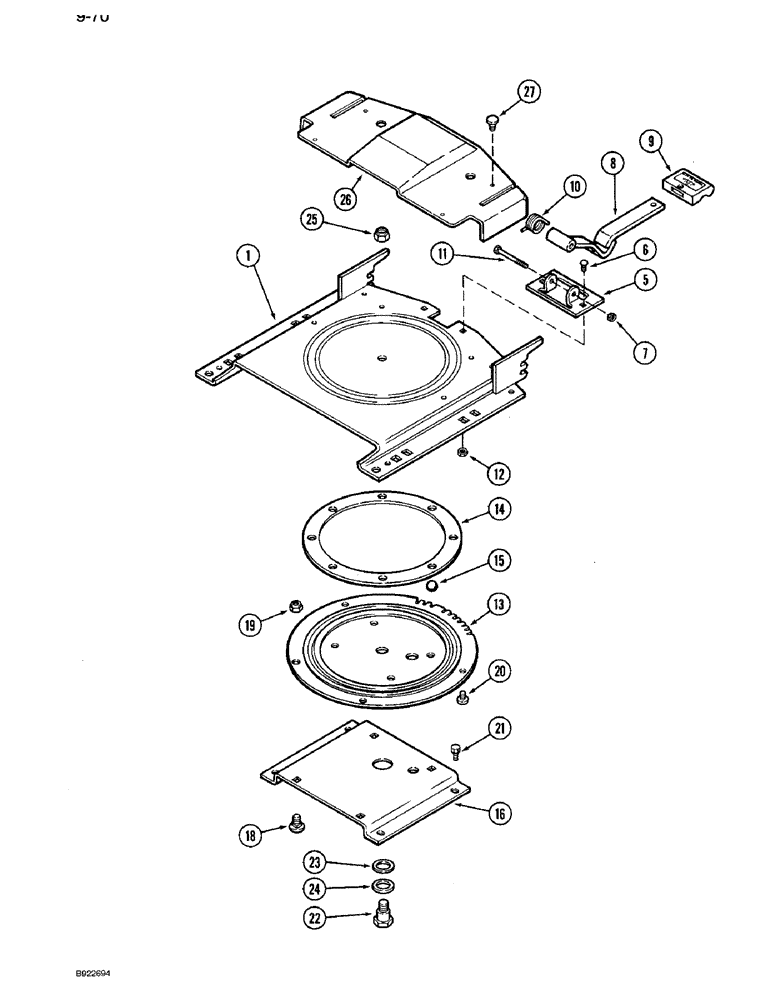

Схема запчастей Case IH 7110 - (9-070) - SEAT SWIVEL, AIR/OIL SUSPENSION (09) - CHASSIS/ATTACHMENTS
8
9
25
20
11
24
14
10
6
18
19
23
26
22
27
5
16
7
21
15
1
12
13

Артикул

Название

Примечание

Количество

1954440C5

SEAT

ASSEMBLY - operator, air/oil, no longer available, order 1999936C1 on Figure 9-95A, Replaces: 1954440C4, Includes: Ref. 1 - 27 and P/N 1974718C1

1шт.

1974718C1

PIVOT PLATE

SWIVEL ASSEMBLY - seat, Includes: Ref. 1 - 25

1шт.

1

1974719C1

PLATE ASSY.

PLATE - top, swivel

1шт.

5

A49830

SUPPORT

BRACKET - latch, swivel

1шт.

6

411-48

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT - round head square neck, 1/4 NC x 1/2 inch

2шт.

7

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

8

1974727C1

LEVER

LATCH ASSEMBLY - swivel

1шт.

9

A49612

LEVER ASSY & KNOB

KNOB - latch swivel

1шт.

10

A49554

SPRING

- latch

1шт.

11

413-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

1шт.

12

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.

13

A49556

PLATE

- latch

1шт.

14

A49555

LARGE PLATE

RETAINER - ball

1шт.

15

211-315

BALL,1/2" Dia

- 1/2 inch diameter

8шт.

16

A49557

PLATE

- mounting, swivel

1шт.

18

411-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 2

BOLT - round head square neck, 3/8 NC x 3/4 inch

4шт.

19

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex lock, 3/8 inch NC

4шт.

20

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

- machine, pan head, Phillips, 1/4 NC x 1/2 inch

4шт.

21

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

2шт.

22

A49558

BOLT

- shoulder

1шт.

23

A49559

WASHER

- shoulder bolt

1шт.

24

F15105

WASHER

- thrust

1шт.

25

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex lock, 1/2 inch NC

1шт.

26

1974723C1

SHROUD

- swivel

1шт.

27

A49622

CLIP

- retaining

4шт.

Выбрано товаров: 25
