Запчасти Case IH 7110 (9-056) - INSTRUMENT PANEL ACOUSTICAL, CAB (09) - CHASSIS/ATTACHMENTS

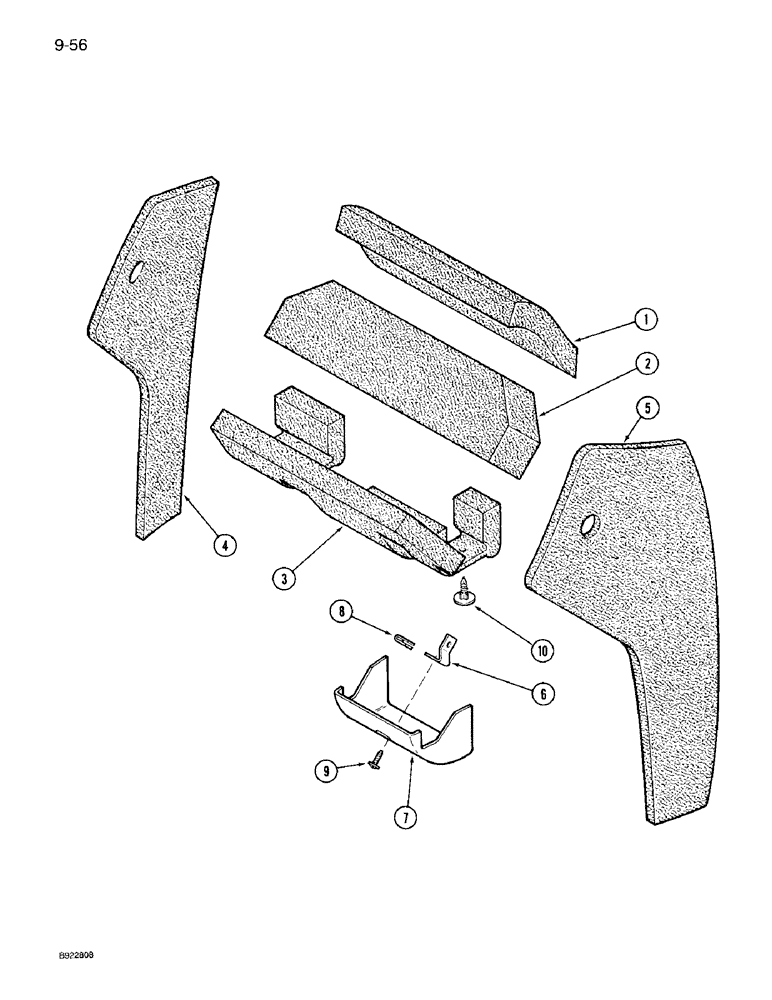

Схема запчастей Case IH 7110 - (9-056) - INSTRUMENT PANEL ACOUSTICAL, CAB (09) - CHASSIS/ATTACHMENTS
1
5
7
8
9
6
2
4
3
10

Артикул

Название

Примечание

Количество

1

1977661C1

PAD

- upper instrument housing

1шт.

2

1977660C2

PAD

- front console

1шт.

3

1977659C2

PAD

- front console lower

1шт.

4

1977663C1

PAD

- instrument side panel, left

1шт.

5

1977662C1

PAD

- instrument side panel, right

1шт.

6

1977738C1

SUPPORT

BRACKET - console cover

1шт.

7

1977737C1

COVER ASSY

COVER - console pad lower

1шт.

8

96900C1

SPRING NUT,U, #10-16, Panel type

Speed U, #10-16, Panel type

1шт.

9

1975919C1

SELF-TAP SCREW

- cross slotted truss, polyseal

8шт.

10

1977865C1

CLIP

- flat head brad type, push on

2шт.

Выбрано товаров: 10
