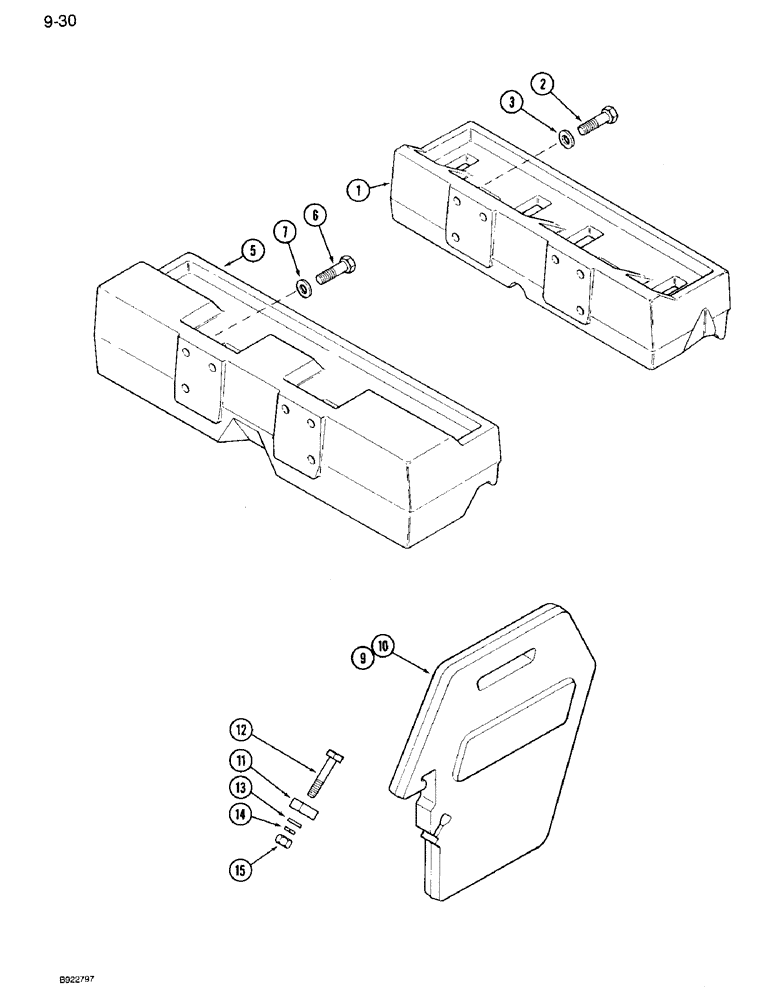

Запчасти Case IH 7110 (9-030) - FRONT END WEIGHT AND FRAME (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
A67680
ATTACHMENT
FRAME ATTACHMENT - front, 18 weight, machinery item, Includes: Ref. 1 - 3
1шт.
1
1342125C2
SUPPORT
FRAME - front weight (Maximum of 18 weights, Replaces: 1968025C2
1шт.
2
827-20065
BOLT,Hex, M20 x 2.5 x 65mm, Cl 10.9, Full Thd
- hex, 20 x 65 mm, class 10.9
6шт.
3
WASHER,22mm ID x 37mm OD x 4mm Thk
- flat, hardened, 22 x 37 x 4 mm
6шт.
A67681
ATTACHMENT
FRAME ATTACHMENT - front, 22 weight, machinery item, Includes: Ref. 5 - 7
1шт.
5
1342127C2
SUPPORT
FRAME - front weight, maximum of 22 weights, not used with MFD
1шт.
6
827-20065
BOLT,Hex, M20 x 2.5 x 65mm, Cl 10.9, Full Thd
- hex, 20 x 65 mm, class 10.9
6шт.
7
WASHER,22mm ID x 37mm OD x 4mm Thk
- flat, hardened, 22 x 37 x 4 mm
6шт.
1348233C1
WEIGHT
ATTACHMENT - front, 6 weight, machinery item, A67893, Includes: Ref. 9
1шт.
A67894
ATTACHMENT
WEIGHT ATTACHMENT - front, 22 weight, machinery item, Includes: Ref. 10
1шт.
A67919
ATTACHMENT
HARDWARE KIT - front weight, machinery item, 1 kit required per 6 weights, Includes: Ref. 11 - 15
1шт.
The new front weight bracket used on the 8900 series can be used on the 7100/7200. The new bracket is extended forward nine inches, allowing the use of 22 front weights on the 7100/7200 tractors.
1шт.
827-20090
BOLT,Hex, M20 x 2.5 x 90mm, Cl 10.9
Do not use bolts from old weight bracket Hex, M20 x 90, 10.9
1шт.
