Запчасти Case IH 7110 (9-026) - DRAWBAR HAMMERSTRAP (09) - CHASSIS/ATTACHMENTS

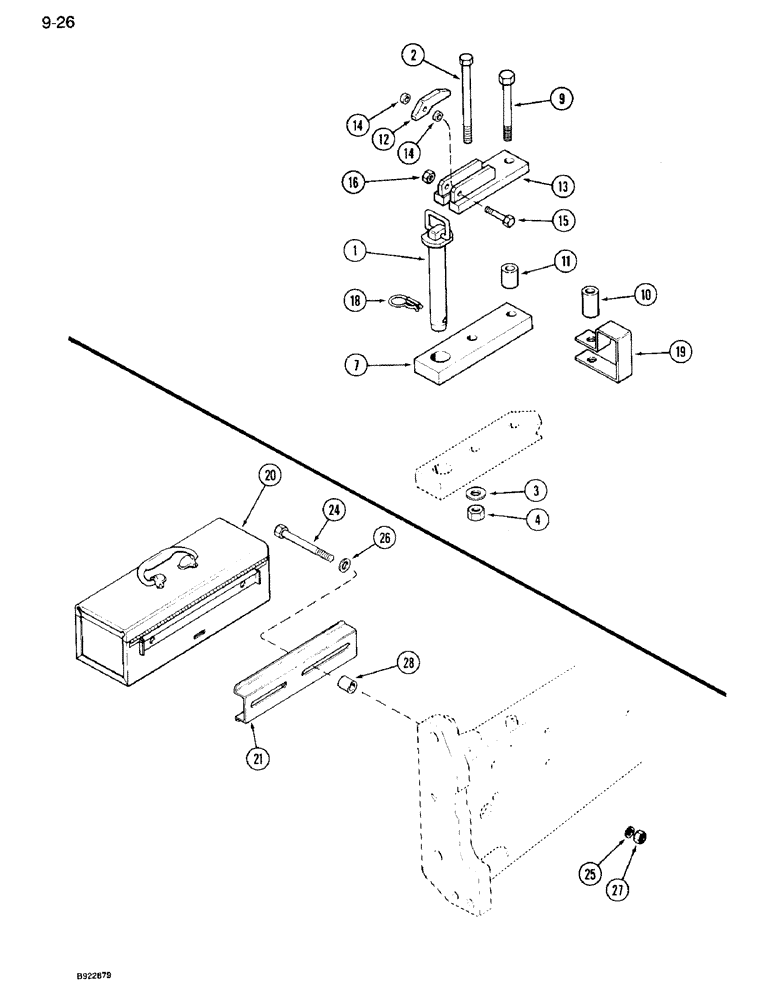

Схема запчастей Case IH 7110 - (9-026) - DRAWBAR HAMMERSTRAP (09) - CHASSIS/ATTACHMENTS
12
7
2
1
20
25
11
18
9
16
24
21
19
26
3
27
14
10
4
13
14
15
28

Артикул

Название

Примечание

Количество

A67884

PACKAGE

HAMMERSTRAP ATTACHMENT - drawbar, machinery item, Includes: Ref. 1 - 16

1шт.

1

1286985C4

HITCH PIN,40mm OD x 200mm L

PIN ASSEMBLY - hammerstrap

1шт.

2

827-20200

BOLT,Hex, M20 x 2.5 x 200mm, Cl 10.9

- hex, 20 mm - 2.5 x 200 mm, class 10.9

1шт.

3

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

- flat, 22 x 37 x 4 mm

2шт.

4

829-1420

NUT,M20, Cl 10

2шт.

7

1286984C1

DRAWBAR

HAMMERSTRAP - drawbar

1шт.

9

827-20160

BOLT,Hex, M20 x 2.5 x 160mm, Cl 10.9

- hex, 20 x 160 mm, class 10.9

1шт.

10

1286924C1

SPACER

- strap

1шт.

11

1331939C1

SPACER

- strap

1шт.

12

1965315C2

LEVER

- latch, hammerstrap

1шт.

13

1965312C3

LATCH ASSY.

LATCH - hammerstrap

1шт.

14

1965316C2

SPACER,13mm ID x 19.1mm OD x 8mm L

- latch, hammerstrap

2шт.

15

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

hex, 12 - 1.75 x 65 mm, class 10.9

1шт.

16

832-10412

NUT,M12 x 1.75, Cl 8

NUT, LOCK, M12 x 1.75, Cl 8

1шт.

18

1289372C1

SPLIT PIN/SAFETY PIN

PIN - hair, special, if equipped

1шт.

19

1331943C1

SUPPORT ASSY.

SUPPORT - safety chain, if equipped

1шт.

1983805C1

BOX

TOOL BOX ATTACHMENT - tractor, machinery item, Includes: Ref. 20 - 28

1шт.

20

A181436

TOOL BOX

BOX, TOOL

1шт.

21

A181434

SUPPORT

BRACKET - mounting, tool box

1шт.

24

814-16150

BOLT,Hex, M16 x 2 x 150mm, Cl 8.8

Tool box Hex, M16 x 150, 8.8

2шт.

25

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER, LOCK, , Tool box M16

2шт.

26

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

Flat, Tool box M16 x 30 x 3

2шт.

27

825-1416

NUT,M16, Cl 8

Toolbox M16, Cl 8

2шт.

28

1348536C1

SPACER

- mounting, tool box, Replaces: 1334638C1

2шт.

Выбрано товаров: 24
