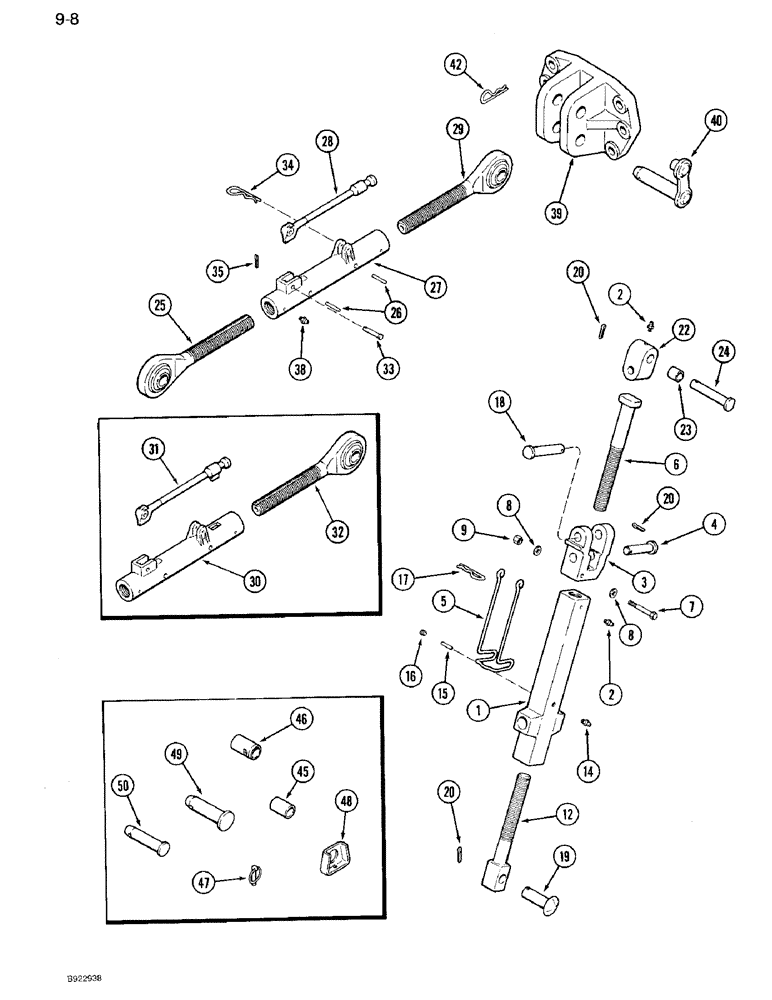

Запчасти Case IH 7110 (9-008) - HITCH UPPER LIFT LINKS, 1-3/8 INCH THREAD, 7110 TRACTOR (09) - CHASSIS/ATTACHMENTS

1

149836C4

TURNBUCKLE

- lift link

2шт.

2

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease, straight, 1/4 inch drive type

1шт.

2

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8 inch PT straight

1шт.

3

1266968C1

YOKE

- lift link

2шт.

4

27357R1

HEADED PIN,3/4" x 3 3/4"

PIN - head, 3/4 x 3-3/4 inch

2шт.

5

123464C2

CLAMP

- turnbuckle lock

2шт.

6

149838C1

ROD

- leveling

2шт.

7

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- hex, 3/8 NC x 3-1/4 inch

2шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

9

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC

1шт.

12

149837C1

ROD

- leveling

1шт.

14

219-23

LUBE NIPPLE,1/4" - 18 NPTF

FITTING - grease, straight

1шт.

15

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

16

221-841

PLUG

- 1/4 inch PT

1шт.

17

486830R1

COTTER PIN

PIN - hair

1шт.

18

1266969C1

AXLE PIN,19mm OD x 121.5mm L

PIN - head

2шт.

19

109088C3

CARRIAGE BOLT

PIN - leveling

2шт.

20

432-1620

COTTER PIN,1/4" x 1 1/4"

1шт.

22

1286725C2

BRACKET, PIVOT

SWIVEL ASSEMBLY - lift link, Includes: Ref. 23

2шт.

23

1252114C1

BUSHING,19.25mm ID x 25.46mm OD x 23.5mm L

- lift link swivel

2шт.

24

108590C1

PIN,19.05mm OD x 120.65mm L

- head, 3/4 x 4-3/4 inch

2шт.

1331854C1

DRAG LINK

LINK ASSEMBLY - upper, with 1-1/2 inch thread, See Figure 9-004, Includes: Ref. 25 - 35

1шт.

1331853C2

TURNBUCKLE

LINK ASSEMBLY - upper, with 1-3/8 inch thread, Includes: Ref. 25 - 35

1шт.

25

1252109C3

LIFT LINK END ASSY

END ASSEMBLY - ball, L.H. thread

1шт.

26

30797R1

PIN,M6 x 36, Coiled

- coiled spring, 6 x 36 mm

2шт.

27

1331856C2

TURNBUCKLE

- upper link, requires ref. 28 handle, Replaces: 1331856C1, Ref. 30

1шт.

28

1331857C2

HANDLE

- turnbuckle, Replaces: 1331857C1, Ref. 31

1шт.

29

1981984C1

BEARING

END ASSEMBLY - ball, R.H. thread without keyway, requires ref. 28 handle, Replaces: 1331858C1, Ref. 32

1шт.

30

NSS

NOT SOLD SEPARAT

TURNBUCKLE - upper link, order Ref. 27

1шт.

31

NSS

NOT SOLD SEPARAT

HANDLE - turnbuckle, order Ref. 28

1шт.

32

NSS

NOT SOLD SEPARAT

END ASSEMBLY - ball, R.H. thread with keyway, order Ref. 29

1шт.

33

SB191

HEADED PIN,3/8" x 1 3/4"

PIN - clevis, 3/8 x 1-3/4 inch

1шт.

34

486830R1

COTTER PIN

PIN - hair

1шт.

35

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

38

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

2шт.

39

142614C3

BRACKET

- link mounting, Replaces: 142614C2

1шт.

40

1286826C2

AXLE PIN

PIN - upper link bracket

1шт.

42

486830R1

COTTER PIN

PIN - hair

1шт.

A67878

SET OF PARTS

PIN AND BUSHING KIT - link, Category III to II, Includes: Ref. 45 - 50

1шт.

45

398406R1

BUSHING,26.29mm ID x 31.37mm OD x 50.8mm L

- upper link rear ball

1шт.

46

392004R1

SPACER,29.08mm ID x 36.2mm OD x 64.8mm L

- ball

2шт.

47

392181R1

SPLIT PIN/SAFETY PIN,11.13mm OD

PIN - link

3шт.

48

404788R1

SHIELD

- pin

2шт.

49

392211R2

PIN

- link implement

1шт.

50

374132R1

PIN

- link implement, Category II

1шт.
