Запчасти Case IH 7110 (9-002) - HITCH ROCKSHAFT (09) - CHASSIS/ATTACHMENTS

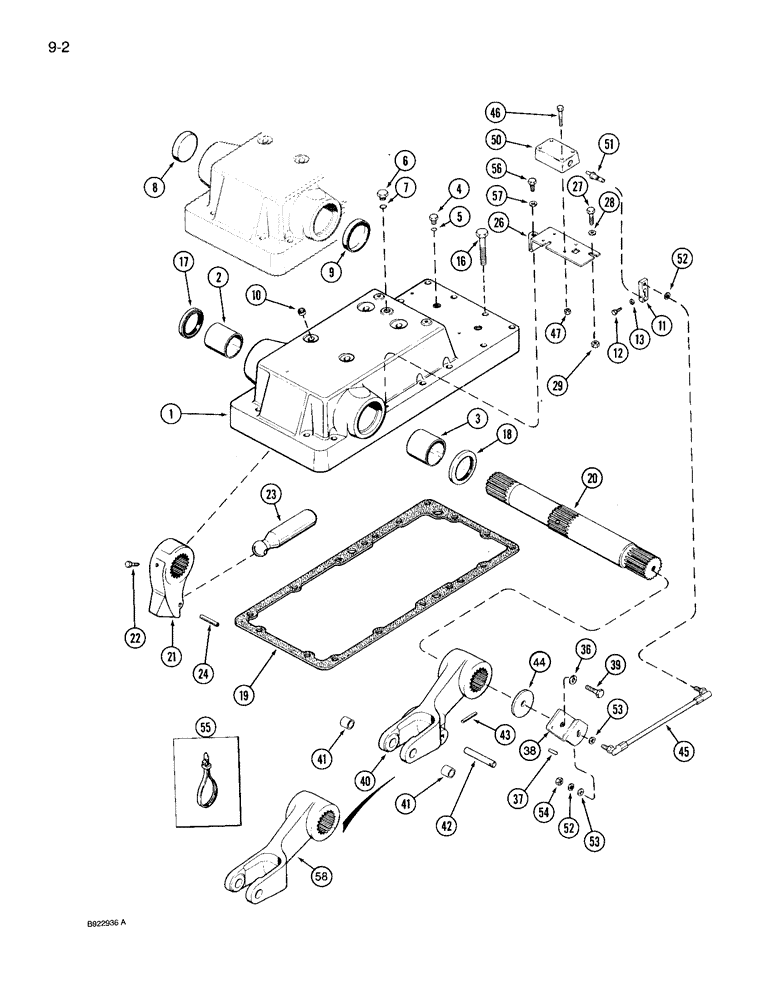

Схема запчастей Case IH 7110 - (9-002) - HITCH ROCKSHAFT (09) - CHASSIS/ATTACHMENTS
16
12
8
53
44
39
19
51
57
40
2
6
52
26
13
37
45
53
50
22
52
17
41
29
20
24
58
18
47
23
1
36
43
55
27
11
21
42
7
41
56
28
5
10
46
4
54
3
38
9

Артикул

Название

Примечание

Количество

1965461C3

COVER ASSY

COVER ASSEMBLY - rockshaft, Includes: Ref. 1 - 10, Serial Range: -AJB0055133

1шт.

1349439C2

COVER

ASSEMBLY - rockshaft, Replaces: 1349439C1, Includes: Ref. 1 - 10, Start Serial: AJB0055133

1шт.

1

NSS

NOT SOLD SEPARAT

COVER - rockshaft, order 1965461C3

1шт.

2

1331849C1

BUSHING,70.71mm ID x 75.43mm OD x 76.2mm L

- rockshaft, left

1шт.

3

1331848C1

BUSHING,76.81mm ID x 81.55mm OD x 76.2mm L

- rockshaft, right

1шт.

4

76349

PLUG,9/16" - 18 ORB

without hitch, Incl. Ref. 5 Hex Hd, 9/16"-18 ORB

2шт.

6

86512512

PLUG,7/8" - 14 ORB

- hex, 7/8-14 inch O-ring boss, without hitch, Incl. Ref. 7

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

8

380174R1

PLUG,Cup, 3.510"

without hitch Cup, 3.510"

1шт.

9

380173R1

PLUG,Cup, 3.762"

1шт.

10

380263R1

PLUG

- cup, without hitch

4шт.

11

1342165C1

LEVER

- link, potentiometer

1шт.

12

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

1шт.

13

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

16

614-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 8.8, Full Thd

16шт.

17

1347918C1

OIL SEAL,70.64mm ID x 89.1mm OD x 12.7mm Thk

- rockshaft oil, left, Replaces: 382776R1

1шт.

18

1347919C1

OIL SEAL,76.73mm ID x 95.48mm OD x 12.7mm Thk

- rockshaft oil, right, Replaces: 382778R1

1шт.

19

380264R3

GASKET,0.53mm Thk

- rear frame cover

1шт.

20

1973956C1

ROCKSHAFT

- hitch control

1шт.

21

84923C2

DIPPER

BELLCRANK - rockshaft

1шт.

22

382811R1

SET SCREW,Hex, 3/8" - 16, Lok-Thd x 1 1/2", Cone Pt

- rockshaft bellcrank

1шт.

23

84922C1

ROD,50.8mm OD x 248.49mm L

- piston connecting

1шт.

24

138-192

LOCK PIN,7/16" x 2 1/2", Slotted

PIN, 7/16" x 2 1/2", Slotted

1шт.

26

1340665C1

SUPPORT

BRACKET - potentiometer

1шт.

27

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- hex, 10 x 35 mm

1шт.

28

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

1шт.

29

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, M10 x 1.5, Cl 8

1шт.

30

1342182C1

SPACER

- bracket

1шт.

36

492-21062

LOCK WASHER,5/8"

1шт.

37

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

1шт.

38

1340669C1

LEVER

- sensor, rockshaft

1шт.

39

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

Right Hex, 5/8"-11 x 1 1/2", G5, Full Thd

1шт.

39

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

Left Hex, 5/8"-11 x 1 1/4", G5, Full Thd

1шт.

40

1286931C2

ARM

ASSEMBLY - rockshaft, left, Includes: Ref. 41, if used

1шт.

40

1286930C5

LOWER LINK

ARM ASSEMBLY - rockshaft, right, shown, Replaces: 1286930C4, Includes: Ref. 41

1шт.

41

1252114C1

BUSHING,19.25mm ID x 25.46mm OD x 23.5mm L

- pivot

2шт.

42

145474C1

PIN,19.05mm OD x 112mm L

- cylinder mounting

2шт.

43

30570R1

SPLIT PIN/SAFETY PIN

PIN - 6 x 55 mm

2шт.

44

388574R1

WASHER,16.51mm ID x 82.55mm OD x 4.78mm Thk

- rockshaft arm retaining

2шт.

45

1342171C2

ROD ASSY.

ROD ASSEMBLY - link, potentiometer, Replaces: 1342171C1

1шт.

46

814-6055

BOLT,Hex, M6 x 1 x 55mm, Cl 8.8

4шт.

47

825-5146

SERRATED NUT,M6, Flg Ser

4шт.

50

1340666C1

HOUSING

- potentiometer

1шт.

51

REF

INSTRUCTION

SHAFT - potentiometer, See Figure 4-26

1шт.

52

493-81008

LOCK WASHER,Int Tooth, 5/16"

WASHER - internal tooth lock, 5/16 inch

2шт.

53

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

54

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF

1шт.

55

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

56

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

57

492-11038

LOCK WASHER,3/8"

1шт.

58

1286923C2

ARM

ASSEMBLY - rockshaft, left, Includes: Ref. 41, if used

1шт.

229936A1

SHIM

rockshaft, 1 mm

1шт.

229937A1

SHIM

rockshaft, 2 mm, t/s 403-95C

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

Выбрано товаров: 54
