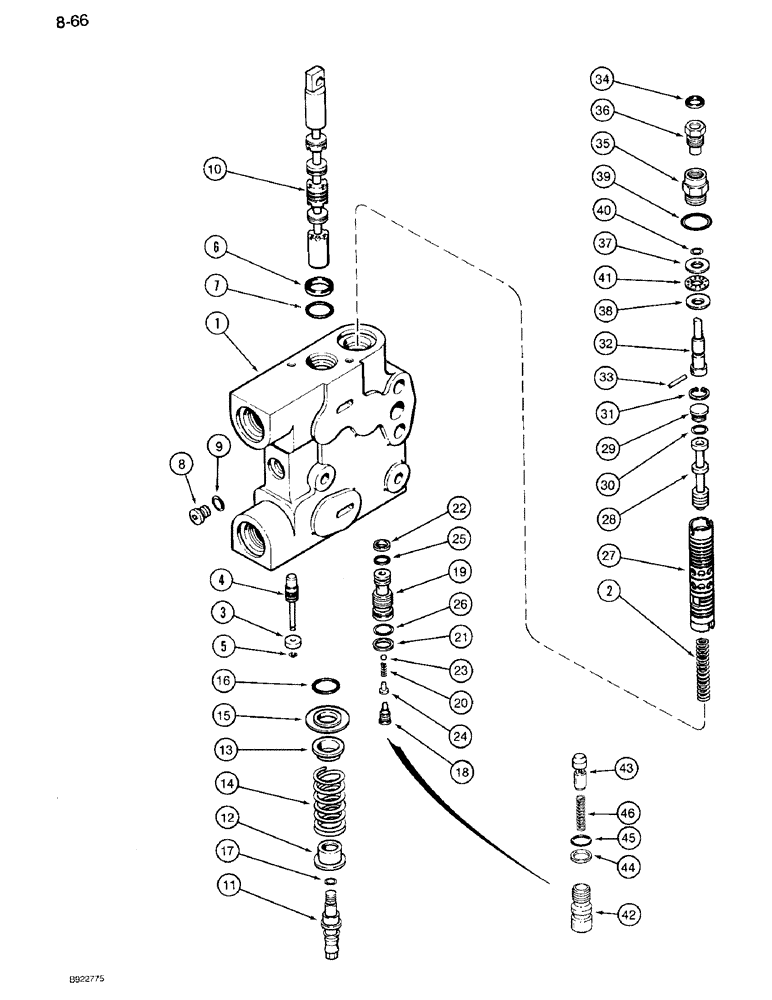

Запчасти Case IH 7110 (8-66) - HYDRAULIC REMOTE VALVE ASSEMBLY, SECOND, THIRD AND FOURTH REMOTE, WITH LOAD CHECK (08) - HYDRAULICS

1980450C6

VALVE, CONTROL

VALVE ASSEMBLY - remote, Replaces: G108905, 1980312C3, 1980312C4, 1980312C5, and 1980450C5, Includes: Ref. 1 - 46

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

24

47-24

RIVET,FH, 1/8" x 1/4"

1шт.

2

1957887C1

SPRING

- control, flow

1шт.

1957907C1

PISTON ASSY

PISTON ASSEMBLY - load check, no longer available, order components, Includes: Ref. 3 - 5

1шт.

3

1957861C1

WASHER

- retainer

1шт.

4

1957862C1

PISTON

- check, load

1шт.

5

1957859C1

SNAP RING

RING - snap

1шт.

6

71121

WIPER SEAL,15.88mm ID x 20.78mm OD x 2.74mm Thk

WIPER - piston

1шт.

7

G110391

O-RING,2.62mm Thk x 15.88mm ID, -114, 70 Duro

- piston

1шт.

8

86529630

PLUG,Hex Soc, 3/8"-24 ORB

Assembly, Includes Ref. 9 Hex Soc, 3/8"-24 ORB

1шт.

9

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

NSS

NOT SOLD SEPARAT

SPOOL ASSEMBLY - main, Includes: Ref. 10 - 17

1шт.

10

NSS

NOT SOLD SEPARAT

SPOOL - main

1шт.

11

1543364C1

STUD

- detent, Replaces: G108910

1шт.

12

G108913

SPRING CUP

RETAINER - spring, outer

1шт.

13

G108914

SPRING CUP

RETAINER - spring, inner

1шт.

14

G108915

SPRING

- centering

1шт.

15

G108630

HOLDER

RETAINER - O-ring

1шт.

16

G110391

O-RING,2.62mm Thk x 15.88mm ID, -114, 70 Duro

-spool

1шт.

17

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

2-1, .239" ID x .064" Thk, Retainer

1шт.

G108633

CHECK VALVE

CHECK ASSEMBLY - load, if used, Includes: Ref. 18 - 26

1шт.

18

86632547

PLUG,Hex, 5/16"-24 ORB

Seat Hex Soc, 5/16"-24 ORB

1шт.

19

NSS

NOT SOLD SEPARAT

BODY - check, Replaces: G108615

1шт.

20

G108938

VALVE SPRING

SPRING - load

1шт.

21

G108723

RING,14.34mm ID x 16.94mm OD x 1.32mm Thk

- backup

1шт.

22

G108724

BACK-UP RING

RING - backup

1шт.

23

211-256

BALL

- 7/32 inch, grade 50, chrome alloy steel

1шт.

25

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

26

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

1994677C1

SLEEVE ASSY

SLEEVE ASSEMBLY - control, flow, Replaces: G108961, Includes: Ref. 27 - 31

1шт.

27

NSS

NOT SOLD SEPARAT

SLEEVE - control

1шт.

28

NSS

NOT SOLD SEPARAT

SPOOL - control

1шт.

29

G108901

PLUG

- sleeve

1шт.

30

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

31

L31750

CIRCLIP,0.562", Int, #56

Ring, Snap, 0.562", Int, #56

1шт.

1343735C2

VALVE

CONTROL ASSEMBLY - flow adjustment, Replaces: 1980277C1, 1343790C1, and 1343735C1, Includes: Ref. 32 - 41

1шт.

32

1980302C2

ROD

ASSEMBLY - adjusting, flow, Replaces: 1971861C1 and 1980302C1, Includes: Ref. 33

1шт.

33

138-56

LOCK PIN,1/8" x 11/16", Slotted

PIN, 1/8" x 11/16", Slotted

1шт.

34

G101066

SEAL,9.52mm ID x 14.45mm OD x 2.74mm Thk

- oil

1шт.

35

1980226C1

PLUG

- adjusting, Replaces: 1971859C1

1шт.

36

1980227C1

NUT

NUT - compression, Replaces: G108725

1шт.

37

G108956

RACE,9.58mm ID x 20.37mm OD x 0.81mm Thk

- bearing, thin

1шт.

38

G108957

RACE,9.58mm ID x 20.37mm OD x 1.59mm Thk

- bearing, thick

1шт.

39

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 15/16 x 3/32 inch

1шт.

40

1986628C1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

- 3/8 ID x 9/16 inch

5шт.

41

F13537

THRUST BEARING

BEARING - pin

1шт.

1542563C1

KIT

CHECK ASSEMBLY - load, if used, Includes: Ref. 42 - 46

1шт.

42

NSS

NOT SOLD SEPARAT

BODY - check

1шт.

43

1543329C1

VALVE POPPET,7mm ID x 13.8mm OD x 27mm L

PLUG - poppet, load check

1шт.

44

G108723

RING,14.34mm ID x 16.94mm OD x 1.32mm Thk

- backup

1шт.

45

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

46

1994581C1

SPRING,6.1mm OD x 31.1mm L

- load check

1шт.

1343791C2

SET OF PARTS

KIT - flow control adjustment, includes 1343735C2 control assembly, plus instructions (replaces 1343791C1)

1шт.
