Запчасти Case IH 7110 (8-61A) - REMOTE HYDRAULIC BLEED LINE (08) - HYDRAULICS

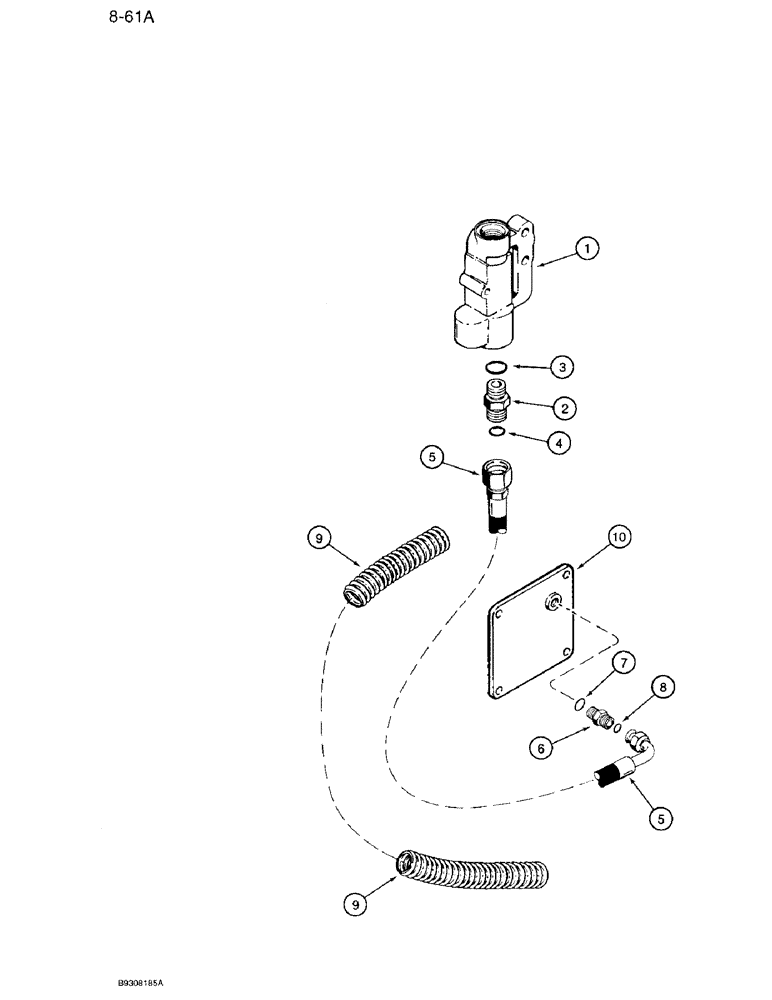

Схема запчастей Case IH 7110 - (8-61A) - REMOTE HYDRAULIC BLEED LINE (08) - HYDRAULICS
1
2
9
5
10
4
3
8
6
9
7
5

Артикул

Название

Примечание

Количество

1

1978363C2

COVER

- end, remote hydraulic valve

1шт.

2

201-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-7/16-12 face seal x 1-5/16 inch O-ring, Incl. Ref. 3 and 4

1шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 1/8 inch, boss end

1шт.

4

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face End -021, 90 Duro, .926" ID x .070" Thk

1шт.

5

1976746C1

HOSE,9.53mm ID x 533.4mm L, SAE 100R3

- 533 mm long, bleed, return

1шт.

6

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Adapter - straight, Incl Ref. 7 and 8 11/16"-16 ORFS x 9/16"-18 ORB

1шт.

8

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face end -012, 90 Duro, .364" ID x .070" Thk

1шт.

9

1968083C3

TUBE,27 mm ID, 34 mm OD

- protective, corrugated, 520 mm

1шт.

10

REF

INSTRUCTION

COVER - transmission, See Figure 6-42

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.

Выбрано товаров: 10
