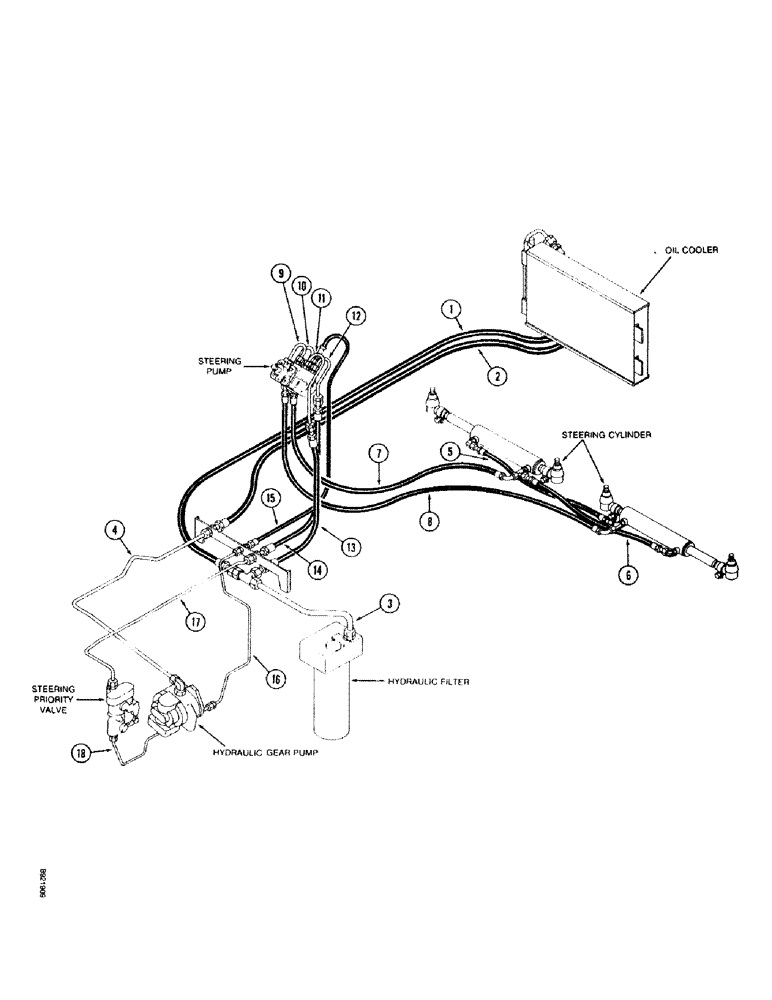

Запчасти Case IH 7110 (1-34) - PICTORIAL INDEX, STEERING HYDRAULICS, MFD TRACTOR, PRIOR TO SERIAL NUMBER JJA0027701 (00) - PICTORIAL INDEX

1

Upper Oil Cooler Hose, Pg 5-19

1шт.

2

Lower Oil Cooler Hose, Pg 5-19

1шт.

3

Oil Cooler Return Tube, Pg 5-19

1шт.

4

Pump Bulkhead Tube, Pg 8-27

1шт.

5

Left Steering Crossover Hose, Pg 5-15, 5-17

1шт.

6

Right Steering Crossover Hose, Pg 5-15, 5-17

1шт.

7

Right Turn Steering Hose, Pg 5-15, 5-17

1шт.

8

Left Turn Steering Hose, Pg 5-15, 5-17

1шт.

9

Left Turn Steering Tube, Pg 5-15, 5-17

1шт.

10

Right Turn Steering Tube, Pg 5-15, 5-17

1шт.

11

Steering Return Tube, Pg 5-15, 5-17

1шт.

12

Steering Upper Supply, Pg 5-15, 5-17

1шт.

13

Steering Return Hose, Pg 5-15, 5-17

1шт.

14

Steering Supply Hose, Pg 5-15, 5-17

1шт.

15

Signal Steering Hose, Pg 5-15, 5-17

1шт.

16

Front Signal Steering Tube, Pg 5-7

1шт.

17

Steering Supply Tube, Pg 5-7

1шт.

18

Rear Signal Steering Tube, Pg 5-7

1шт.
