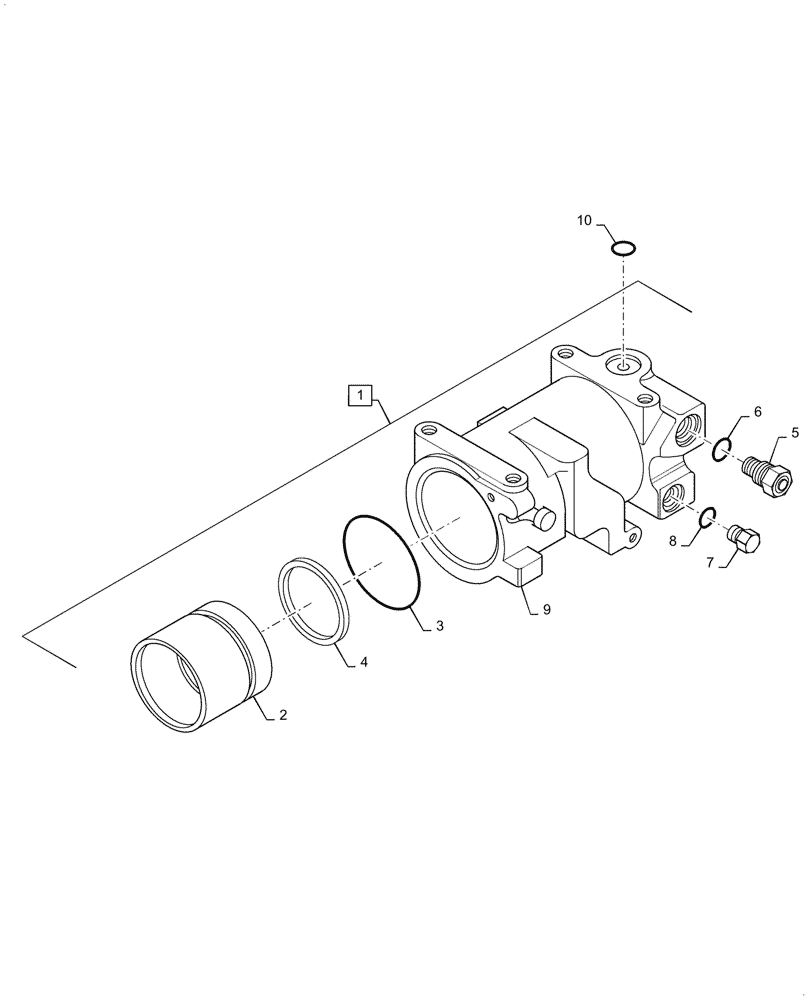

Запчасти Case IH 7110 (8-50) - HITCH CONTROL CYLINDER ASSEMBLY (08) - HYDRAULICS

1

93005C2

CYLINDER ASSY.,120.73mm Bore Dia

Hitch Control, Incl 2 - 9

1шт.

2

397229R1

PISTON

Cylinder

1шт.

3

238-6348

O-RING,0.21" Thk x 4.35" ID, -348, Cl 6, 90 Duro

1шт.

4

382605R2

WASHER

Piston

1шт.

5

1266861C92

VALVE

Relief

1шт.

6

238-6118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

1шт.

7

214389

PLUG,3/4" - 16 ORB

Replaces 9410359, Incl 8

1шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

9

1289125C2

HOUSING

Cylinder

1шт.

10

1957863C1

SEALING RING,30.79mm ID x 36.12mm OD x 3.05mm Thk

Teflon

1шт.
