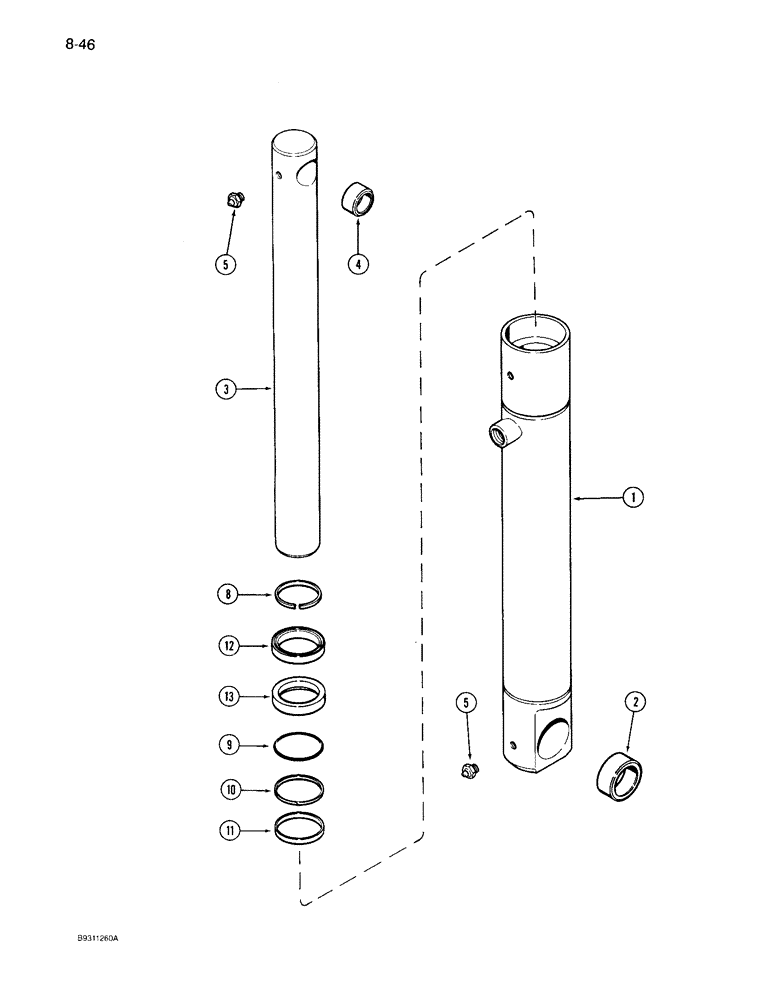

Запчасти Case IH 7110 (8-46) - HITCH CYLINDER ASSEMBLY, 1-1/2 INCH BORE, 7110 TRACTOR (08) - HYDRAULICS

149699C6

CYLINDER ASSY.

CYLINDER ASSEMBLY - 1-1/2 inch bore x 10-3/4 inch stroke, hitch, Replaces: 149699C5, Includes: Ref. 1 - 13

1шт.

1

1341305C2

HYD CYL SLEEVE

BODY ASSEMBLY - cylinder, Includes: Ref. 2

1шт.

2

149638C1

BUSHING,31.8mm ID x 38.16mm OD x 16mm L

- pivot

2шт.

3

1341300C2

PISTON ROD

ROD - piston

1шт.

4

149636C1

BUSHING,19.25mm ID x 25.46mm OD x 13mm L

- rod

2шт.

5

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease, straight, 1/4 inch drive type

2шт.

79616C1

PACKAGE

SEAL KIT - cylinder, Includes: Ref. 8 - 13

1шт.

8

NSS

NOT SOLD SEPARAT

RING - retaining, if used

1шт.

9

238-5129

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

1шт.

10

149668C1

WASHER

RING - backup

1шт.

11

149667C1

RING

- seal, rectangular

1шт.

12

403460R1

WIPER SEAL,38mm ID x 50.9mm OD x 7.94mm Thk

SEAL - wiper, rod

1шт.

13

1252335C1

SEAL,36.55mm ID x 53.06mm OD x 6.35mm Thk

- oil, piston

1шт.
