Запчасти Case IH 7110 (8-38) - HYDRAULIC PISTON PUMP ASSEMBLY (CONTD) (08) - HYDRAULICS

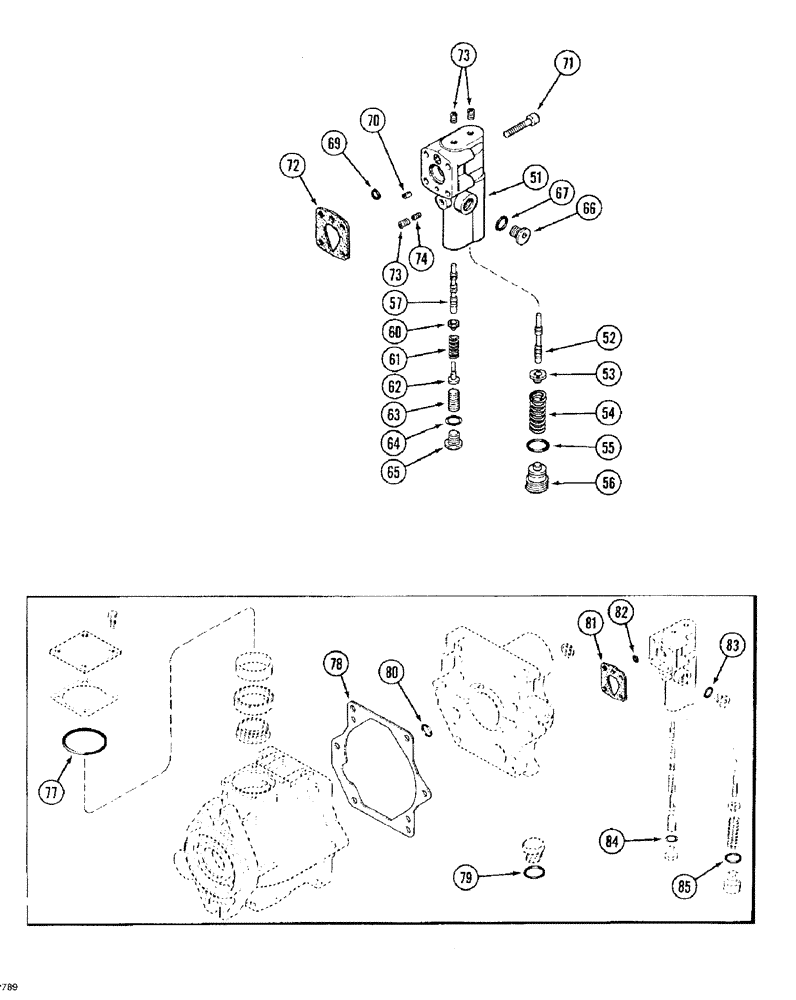

Схема запчастей Case IH 7110 - (8-38) - HYDRAULIC PISTON PUMP ASSEMBLY (CONTD) (08) - HYDRAULICS
70
63
62
55
66
84
78
61
71
77
81
51
85
65
53
56
52
60
83
69
82
54
57
72
73
73
79
74
80
67
64

Артикул

Название

Примечание

Количество

1976861C1

PACKAGE

COMPENSATOR ASSEMBLY - pump

1шт.

51

A49832

VALVE

BODY - compensator

1шт.

52

A47316

SPOOL

SPOOL - pressure, limiter

1шт.

53

A47317

PLUG

SEAT - spool

1шт.

54

A47318

SPRING

SPRING - spool

1шт.

55

238-8015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 8, 90 Duro

1шт.

56

A47320

PLUG

PLUG - adjusting

1шт.

57

A47321

SPOOL

SPOOL - sensing, load

1шт.

60

NSS

NOT SOLD SEPARAT

SEAT - spool

1шт.

61

NSS

NOT SOLD SEPARAT

SPRING - spool

1шт.

62

NSS

NOT SOLD SEPARAT

SEAT - lower

1шт.

63

NSS

NOT SOLD SEPARAT

SCREW - set, spool

1шт.

65

A49437

PLUG

PLUG - hex socket

1шт.

66

278548

PLUG,Hex, 7/16"-20 ORB

1шт.

67

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Plug

1шт.

69

238-8011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 8, 90 Duro

Valve

1шт.

70

NSS

NOT SOLD SEPARAT

SCREW - set

1шт.

71

61-31020

HEX SOC SCREW,#10 - 24 x 1 1/4"

4шт.

72

A49436

GASKET

GASKET - mounting

1шт.

73

221-850

PLUG,Hex Soc, 1/16"-27

PLUG - hex socket, 1/16 inch PT

3шт.

74

NSS

NOT SOLD SEPARAT

ORIFICE - valve

1шт.

1263244C2

PACKAGE

SEAL KIT - pump

1шт.

77

238-6137

O-RING,0.103" Thk x 2.05" ID, -137, Cl 6, 90 Duro

2шт.

78

A47280

GASKET,0.53mm Thk

GASKET - housing

1шт.

79

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Plug, 5/8 inch O.D.

1шт.

80

238-8112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 8, 90 Duro

Rod

1шт.

81

A49436

GASKET

GASKET - compensator

1шт.

82

238-8011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 8, 90 Duro

Valve

1шт.

83

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Plug, 1/4 OD tube

1шт.

85

238-8015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 8, 90 Duro

Plug

1шт.

64

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

Plug

1шт.

84

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

Plug, 5/16 inch OD tube

1шт.

Выбрано товаров: 32
