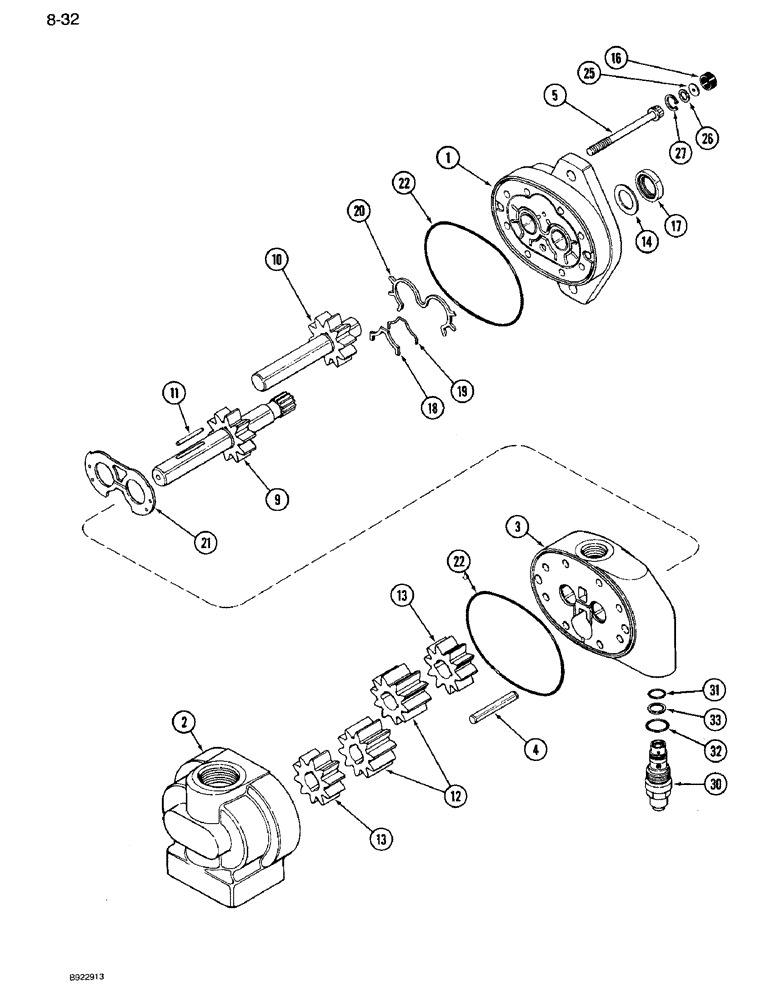

Запчасти Case IH 7110 (8-32) - HYDRAULIC GEAR PUMP ASSEMBLY, PRIOR TO TRANSMISSION SERIAL NUMBER AJB0044915 (08) - HYDRAULICS

1341835C1

PUMP, HYDRAULIC,21.63 CC

PUMP ASSEMBLY - gear, hydraulic, Includes: Refs. 1 - 33

1шт.

Part number stamped on part. Order components as listed.

1шт.

1341835C1R

REMAN-HYD PUMP

7110, 7120 - CASE IH MAGNUM TRACTOR (NORTH AMERICA), REMAN for Part No. 1341835C1 & 1954132C2, N.A. Only

1шт.

1341835C1C

CORE-HYDRAULIC PUMP

Return Number, For N.A. Only

1шт.

1954132C2

PUMP

ASSEMBLY - gear, hydraulic, Includes: Ref. 1 - 33

1шт.

Part number stamped on part. Order components as listed.

1шт.

1

1346069C1

LARGE PLATE

PLATE - front, used with 1341835C1

1шт.

1

1971484C1

PLATE ASSY.

PLATE - front, used with 1954132C2

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - rear, order assembly

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING - front, order assembly

1шт.

4

D48882

PIN

- dowel

2шт.

5

166-55

12 PT SCREW,Flg, 3/8" - 16 x 3 1/2", Gr 8

SCREW - 12 point flange head, 3/8 NC x 3-1/2 inch

4шт.

5

166-59

12 PT SCREW,Flg, 3/8" - 16 x 3 3/4", Gr 8

SCREW - 12 point flange head, 3/8 NC x 3-3/4 inch

4шт.

1971485C1

GEAR-SET

GEAR KIT - idler and drive, Includes: Ref. 9 and 10

1шт.

9

NSS

NOT SOLD SEPARAT

GEAR - drive

1шт.

10

NSS

NOT SOLD SEPARAT

GEAR - idler

1шт.

11

1971482C1

KEY

- shaft

1шт.

1971483C1

GEAR

KIT - slip fit, Includes: Ref. 12 and 13

1шт.

12

NSS

NOT SOLD SEPARAT

GEAR - pump, wide

2шт.

13

NSS

NOT SOLD SEPARAT

GEAR - pump, narrow

2шт.

14

H104117

WASHER

- seal

1шт.

1346068C1

SEAL KIT

SERVICE KIT - pump, used with 1341835C1

1шт.

1260955C4

SEAL KIT

SERVICE KIT - pump, used with 1954132C2, Includes: Ref. 16 - 27

1шт.

16

1971486C1

CYLINDER END CAP

CAP - disc

2шт.

17

381232R91

OIL SEAL

- oil, shaft, used with 1954132C2 only

1шт.

18

1971506C1

SEAL

- bearing

1шт.

19

1971507C1

O-RING

- molded, bearing

1шт.

20

1971508C1

GASKET

- backup

1шт.

21

1971509C1

PLATE

- wear

1шт.

22

238-6159

O-RING,0.103" Thk x 4.977" ID, -159, Cl 6, 90 Duro

Used with 1341835C1 -159, 90 Duro, 4.977" ID x .103" Thk

2шт.

22

H756221

O-RING,4.987" ID x 5.193" OD

- plate, front, used with 1954132C2

2шт.

25

L33506

DISC

- shim

2шт.

26

F12267

WASHER

- disc, used with 1954132C2 only

2шт.

27

1971487C1

RING, SNAP

RING - snap

2шт.

30

1971426C1

VALVE

ASSEMBLY - relief, Includes: Ref. 31 - 33

1шт.

31

238-7113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 7, 75 Duro

1шт.

32

D63414

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

- 13/16 x 1 x 3/32 inch

1шт.

33

N7319

RING

WASHER - backup

1шт.
