Запчасти Case IH 7110 (8-20) - TRANSMISSION SOLENOID VALVE TUBES, WITH MECHANICAL FRONT DRIVE (08) - HYDRAULICS

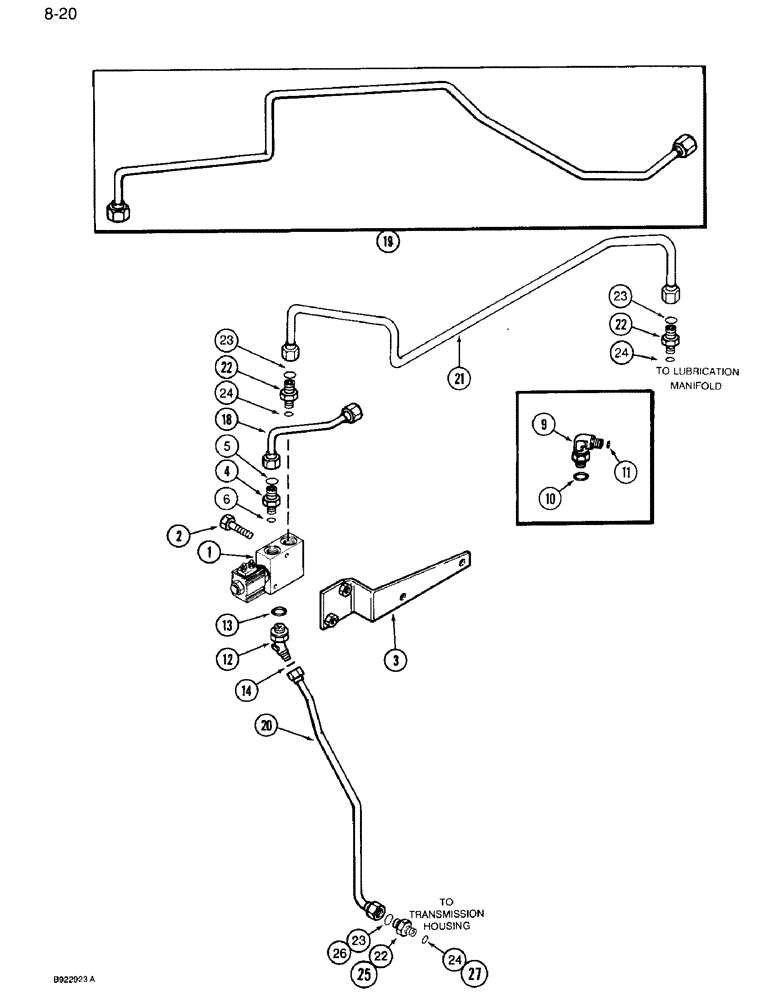

Схема запчастей Case IH 7110 - (8-20) - TRANSMISSION SOLENOID VALVE TUBES, WITH MECHANICAL FRONT DRIVE (08) - HYDRAULICS
11
26
25
20
5
6
9
4
23
19
10
14
23
24
18
27
22
22
1
13
22
23
12
3
24
24
2
21

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE ASSEMBLY - solenoid, See Figure 8-24

1шт.

2

814-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8

If equipped Hex, M6 x 35, 8.8

2шт.

3

1289347C1

BRACKET

- mounting valve, if equipped

1шт.

4

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Adapter - straight, Incl Ref. 5 and 6 11/16"-16 ORFS x 9/16"-18 ORB

1шт.

6

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

9

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

- 90 degree, 11/16-16 face x 9/16-18 inch adj. O-ring, if equipped, Includes: Ref. 10 and 11

1шт.

11

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

12

201-315

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

- 45 degree, 11/16-16 face x 9/16-18 inch adj. O-ring, Includes: Ref. 13 and 14

1шт.

14

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

18

1289343C1

HYD TUBE

TUBE - supply, valve, with hitch

1шт.

19

1978464C1

HYD TUBE

TUBE - supply, without hitch

1шт.

20

1289345C1

HYD TUBE

TUBE - pressure, valve

1шт.

21

1348291C1

HYD TUBE,0.375" OD, 540.3, 172 mm Length

TUBE - return, valve, Replaces: 1289344C1

1шт.

22

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Adapter - straight, Incl Ref. 23 and 24 11/16"-16 ORFS x 9/16"-18 ORB

2-3шт.

24

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

25

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

CONNECTOR, HYD., , Includes Ref. 26 and 27 13/16"-16 ORFS x 3/4"-16 ORB

1шт.

26

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

23

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
