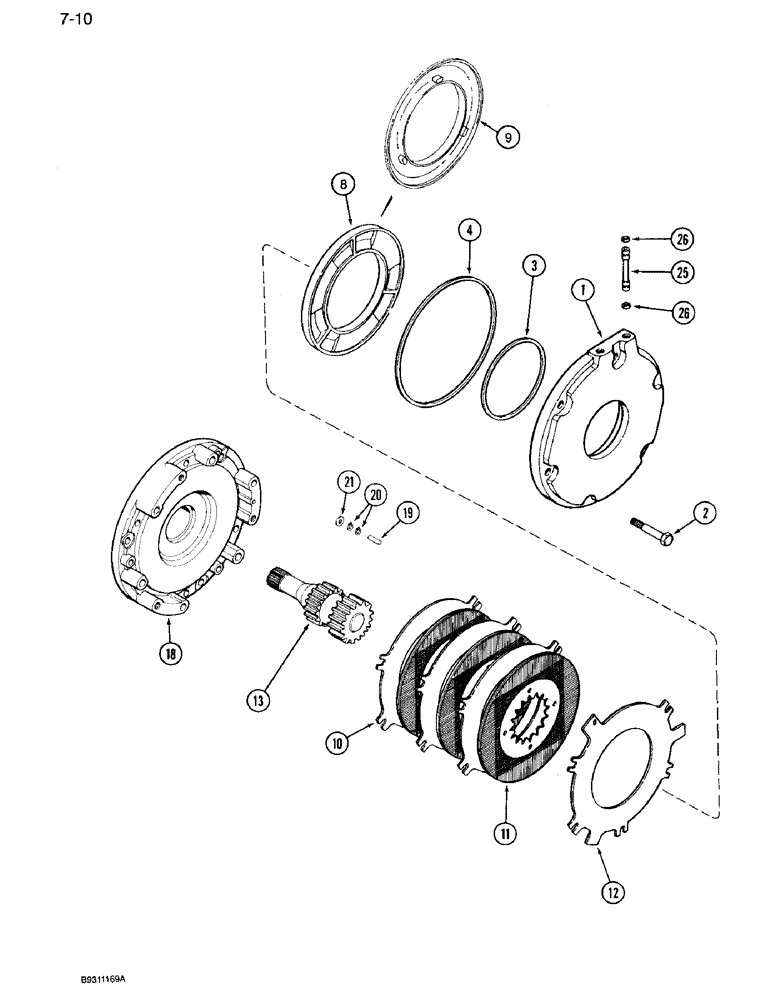

Запчасти Case IH 7110 (7-10) - DIFFERENTIAL BRAKES (07) - BRAKES

1

1342723C2

COVER

- brake, Replaces: 137760C1

2шт.

With the old cover 137760C1 the o-ring PN 238-5278 will not fit correctly. The o-ring ID will have to be stretched to 12 1/4".

1шт.

2

814-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 8.8

Right cover Hex, M16 x 110, 8.8

6шт.

2

814-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 8.8

- hex, 16 x 100 mm, left cover

6шт.

3

238-5264

O-RING,0.139" Thk x 7.484" ID, -264, Cl 5, 75 Duro

Used with Ref. 8, 120490C1 brake piston -264, 70 Duro, 7.484" ID x .139" Thk

2шт.

4

238-5278

O-RING,0.139" Thk x 11.984" ID, -278, Cl 5, 75 Duro

used with Ref. 8, 120490C1 brake piston -278, 70 Duro, 11.984" ID x .139" Thk

2шт.

8

120490C1

PISTON

- brake, if used

2шт.

9

1997422C1

PISTON

- lock, differential, if used

1шт.

1264581C1

PACKAGE

PLATE KIT - brake, Includes: Ref. 10 - 12

1шт.

10

120486C1

BRAKE PLATE,192mm ID x 350mm OD x 2.74mm Thk

PLATE - separator, set of 8

6шт.

11

120488C2

BRAKE PLATE

PLATE - friction, set of 8, Replaces: 120488C1

6шт.

12

139189C1

PLATE

- return, adjuster

2шт.

13

REF

INSTRUCTION

SHAFT - sun gear final drive, See Figure 6-116

2шт.

18

REF

INSTRUCTION

RETAINER - differential, See Figure 6-110 or 6-112

2шт.

1349198C1

ADJUSTER

ASSEMBLY - brake, Replaces: 139185C4, Includes: Ref. 19 and 20

6шт.

19

NSS

NOT SOLD SEPARAT

DOWEL - brake adjuster

1шт.

20

NSS

NOT SOLD SEPARAT

RING - retainer

2шт.

21

1342928C1

BELLEVILLE WASHER

- thrust

12шт.

25

120514C2

TUBE,7.47 mm ID, 11.85 mm OD

- inlet, brake oil, Replaces: 120514C1

4шт.

26

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

8шт.
