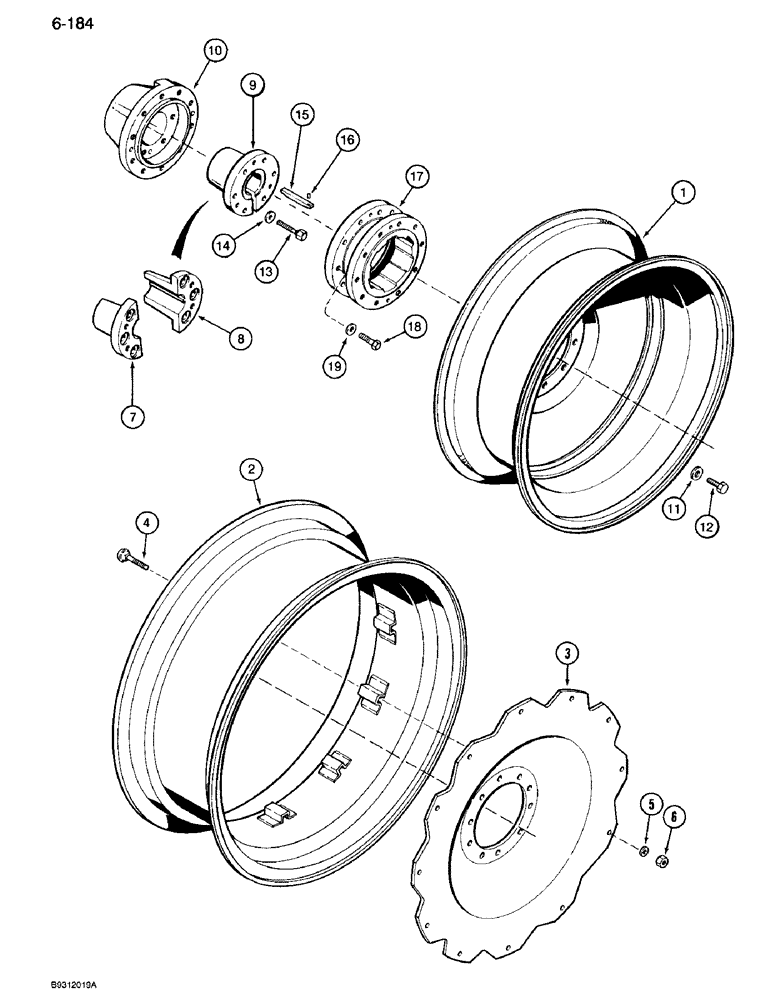

Запчасти Case IH 7110 (6-184) - STEEL DUAL WHEELS, 38, 42 AND 46 INCH, 7110 TRACTOR (06) - POWER TRAIN

A67773

WHEEL ATTACHMENT - dual, machinery item, Includes: Ref. 1

1шт.

1

1334329C1

WHEEL

- rear, steel, for 16.9-38 tire

2шт.

A67729

WHEEL ASSY.

WHEEL ATTACHMENT - dual, machinery item, Includes: Ref. 1

1шт.

1

1334330C1

WHEEL

- rear, steel, for 18.4-38 tire

2шт.

A67731

WHEEL ASSY.

WHEEL ATTACHMENT - dual, machinery item, Includes: Ref. 1

1шт.

1

1334331C1

RIM

WHEEL - rear, steel, for 20.8-38 tire

2шт.

A67791

WHEEL ASSY.

WHEEL ATTACHMENT - dual, machinery item, Includes: Ref. 1

1шт.

1

1334332C1

RIM

WHEEL - rear, steel, for 18.4-42 tire

2шт.

1340519C1

WHEEL ATTACHMENT - dual, machinery item, Includes: Ref. 1

1шт.

1

123408A1

RIM

WHEEL - rear, steel, for 14.9-46 tire

2шт.

1340519C1

WHEEL ATTACHMENT - dual, machinery item, Includes: Ref. 1 - 6

1шт.

1978546C1

WHEEL ASSY.

WHEEL ASSEMBLY - rear, steel, for 14.9-46 tire, Includes: Ref. 2 - 6

2шт.

2

NSS

NOT SOLD SEPARAT

RIM - wheel

1шт.

3

NSS

NOT SOLD SEPARAT

DISK - wheel

1шт.

4

433-1072

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4 1/2", Gr 5

BOLT - round head, square neck, 5/8 NC x 4-1/2 inch

12шт.

5

NSS

NOT SOLD SEPARAT

WASHER - flat, 21/32 x 1-5/16 x 3/16 inch

12шт.

6

425-1010

NUT,5/8"-11, G5

12шт.

1968131C2

HUB ASSY.

HUB ASSEMBLY - rear wheel, 10 bolt, Replaces: A67937, Includes: Ref. 7 -16

2шт.

7

1968133C1

BUSHING

- wheel, 3.5 inch ID, two piece, plain half, if used

1шт.

8

1968132C1

BUSHING

- wheel, 3.5 inch ID, two piece, keyed half, if used

1шт.

9

1334322C1

HUB

BUSHING - wheel, 3.5 inch ID, one piece, if used

1шт.

10

A180916

HUB

- wheel, rear, used with two piece bushings

1шт.

10

1348204C1

HUB

- wheel, rear, used with one piece bushing

1шт.

11

496-31094

WASHER,15/16" x 1 3/4" x .219", HDN

- flat, 15/16 x 1-3/4 x 7/32 inch, hardened

10шт.

12

426-1432

BOLT,Hex, 7/8" - 9 x 2", Gr 8

- hex, 7/8 NC x 2 inch, Grade 8

10шт.

13

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

SCREW - bushing

6шт.

14

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

6шт.

15

1530716C1

BUCKET TOOTH KEY

KEY - axle, 5/8 x 5 inch

1шт.

16

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

2шт.

A187233

HUB

SPACER KIT - dual wheel, 5 inch, machinery item, Includes: Ref. 17 - 19

1шт.

17

1342168C1

HUB

SPACER - wheel, rear

2шт.

18

426-1440

BOLT,Hex, 7/8" - 9 x 2-1/2", Gr 8

- hex, 7/8 NC x 2-1/2 inch, Grade 8

20шт.

19

496-31094

WASHER,15/16" x 1 3/4" x .219", HDN

- flat, 15/16 x 1-3/4 x 7/32 inch, hardened

20шт.
