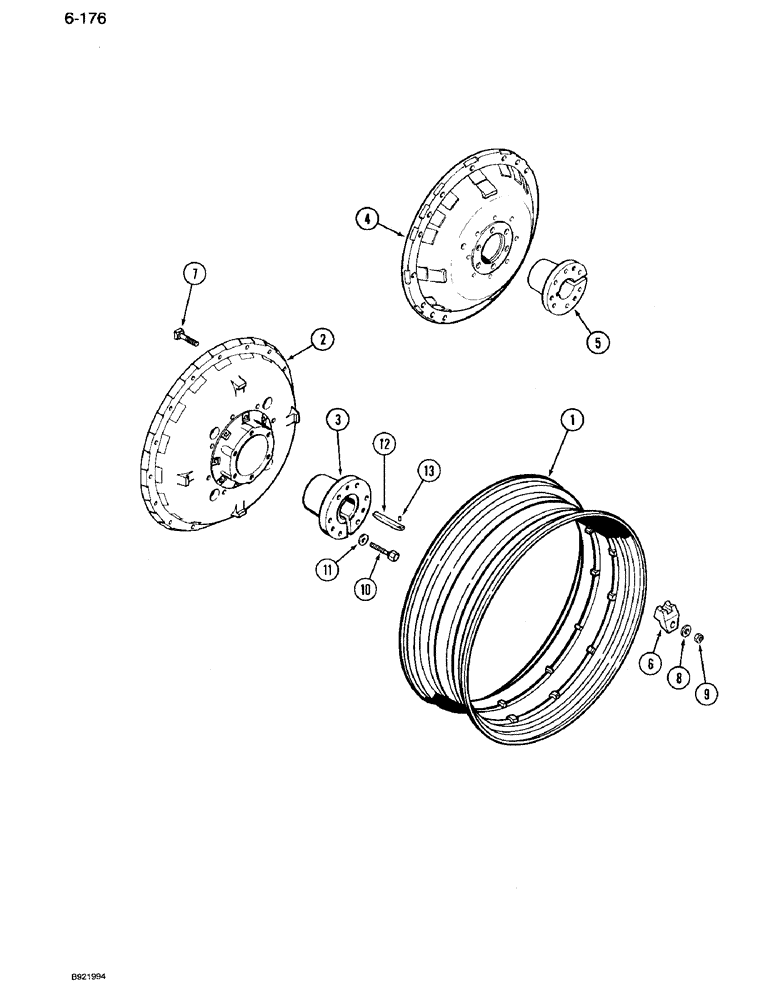

Запчасти Case IH 7110 (6-176) - SOLID CAST REAR WHEELS, 38 AND 42 INCH RIMS, 7110 TRACTOR (06) - POWER TRAIN

1

A33223

RIM

- wheel, for 16.9-38 tire

2шт.

1

1334480C1

RIM

- wheel, for 18.4-38 tire

2шт.

1

1334481C1

RIM

- wheel, for 20.8-38 tire

2шт.

1

1334482C1

RIM

- wheel, for 18.4-42 tire

2шт.

2

A161818

WHEEL

- rear, cast

2шт.

3

1334322C1

HUB

BUSHING - wheel, 3-1/2 inch ID

2шт.

4

A149777

WHEEL

- rear, cast, if equipped

2шт.

5

A145896

BUSHING

- wheel, 3-1/2 inch ID, if equipped

2шт.

6

A57654

CLAMP

- adjusting, double ramp

32шт.

7

117-618

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- square head, 3/4 NC x 3-1/2 inch

32шт.

8

A161560

WASHER,19.84mm ID x 31.7mm OD x 4.6mm Thk

- flat, wheel

32шт.

9

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

32шт.

Quantity used with rim A33223 can be either 8 or 16 per rim. All other rims require 16 per rim.

1шт.

10

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

SCREW - bushing

12шт.

11

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

12шт.

12

1530716C1

BUCKET TOOTH KEY

KEY - axle, 5/8 x 5 inch, 6 inch key, Replaces A34890

2шт.

13

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

2шт.
