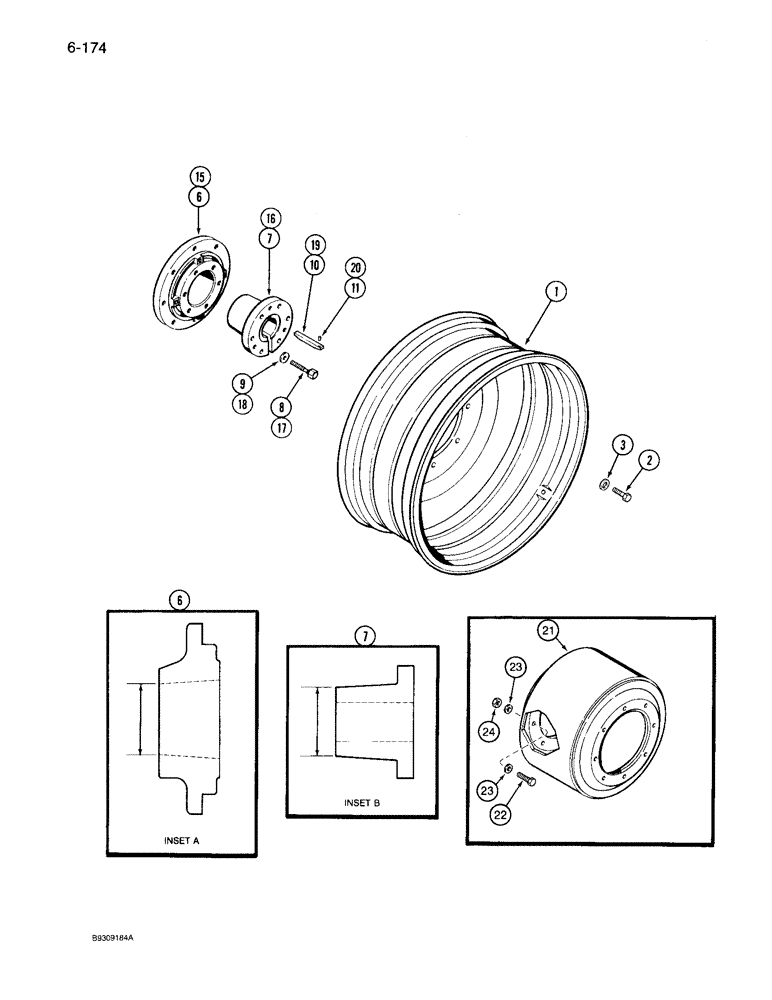

Запчасти Case IH 7110 (6-174) - STEEL REAR WHEELS, 32 AND 34 INCH, SINGLE OR DUAL, 7110 AND 7120 TRACTOR (06) - POWER TRAIN

107492A1

WHEEL ASSY.

WHEEL ATTACHMENT - dual, machinery item, Includes: Ref. 1

1шт.

1

1968161C1

RIM

WHEEL - rear, steel, for 24.5-32 tire, 3-3/16 inch offset, Includes: Ref. 1

2шт.

1

A145462

RIM

WHEEL - rear, steel, for 30.5-32 tire

2шт.

107411A1

WHEEL ASSY.

WHEEL ATTACHMENT - dual, machinery item, Includes: Ref. 1

1шт.

1

102890A1

WHEEL

- rear, steel, for 23.1-34 tire, 4-1/8 inch offset, Replaces: 1968162C1

2шт.

2

1348513C1

BOLT

- hex, 3/4 NC x 2-1/4 inch, Grade 8

16шт.

3

496-31081

WASHER,13/16" x 1 1/2" x .219", HDN

- flat, hardened, 13/16 x 1-1/2 x 7/32 inch

16шт.

A67686

HUB

ATTACHMENT - wheel, 8 bolt machinery item, 7110 Tractor, Includes: Ref. 6 - 11

1шт.

6

A145322

HUB

- wheel, tapered, dimension shown on Inset A is 6-1/8 inches, 7110 Tractor

2шт.

6

A145321

HUB CAP

HUB - wheel, tapered, if equipped, dimension shown on Inset A is 5-1/2 inches, 7110 Tractor

2шт.

7

1334322C1

HUB

BUSHING - wheel, 3-1/2 inch ID, dimension shown on Inset B is 6-1/8 inches, 7110 Tractor

2шт.

7

A59792

HUB

BUSHING - wheel, 3-1/2 inch ID, if equipped, dimension shown on Inset B is 5-1/2 inches, 7110 Tractor

2шт.

8

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

SCREW - bushing, 7110 Tractor

12шт.

9

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

7110 Tractor 13/16" x 1 1/2" x .219", HDN

12шт.

10

1530716C1

BUCKET TOOTH KEY

KEY - axle, 5/8 x 5 inch, Replaces: A34890, 6 inch key, 7110 Tractor

2шт.

11

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, , 7110 Tractor 1/4" x 1/2", Slotted

2шт.

A67685

PACKAGE

HUB ATTACHMENT - wheel, 8 bolt, machinery item, 7120 Tractor, Includes: Ref. 15 - 20

1шт.

15

A145322

HUB

- wheel, tapered, 7120 Tractor

2шт.

16

1289233C1

HUB

BUSHING - wheel, 4 inch ID, 7120 Tractor

2шт.

17

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

SCREW - 3/4 inch, hub to bushing, 7120 Tractor

12шт.

18

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

7120 Tractor 13/16" x 1 1/2" x .219", HDN

12шт.

19

A63219

KEY

- axle, 3/4 x 6 inch, 7120 Tractor

2шт.

20

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, , 7120 Tractor 1/4" x 1/2", Slotted

2шт.

A67430

PACKAGE

SPACER KIT - dual wheel, 16 inch, 7110 and 7120 Tractor, Includes: Ref. 21 - 24

1шт.

21

A149059

BUSHING

SPACER - dual wheel, 8 bolt, 16 inch, 7110 and 7120 Tractor

2шт.

22

1348513C1

BOLT

- hex, 3/4 - 10 x 2-1/4 inch, grade 8, 7110 and 7120 Tractor

16шт.

23

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

7110 and 7120 Tractor 13/16" x 1 1/2" x .219", HDN

32шт.

24

129-572

NUT,3/4"-10, G8

7110 and 7120 Tractor 3/4"-10, G8

16шт.
