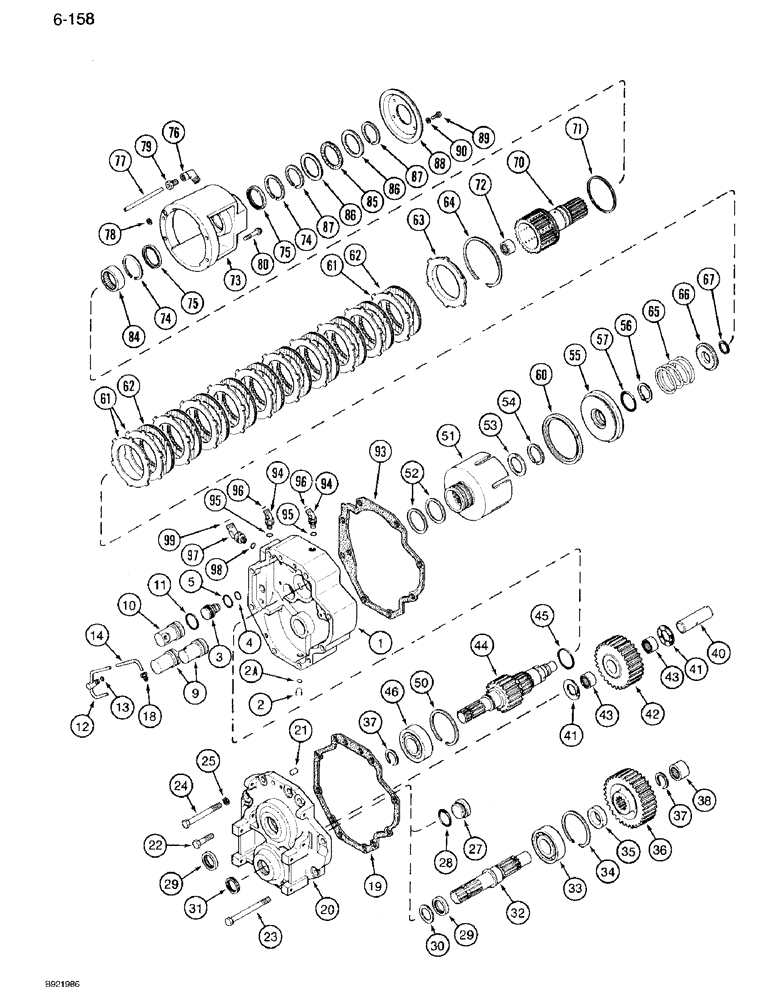

Запчасти Case IH 7110 (6-156) - PTO ASSEMBLY, DUAL SPEED - 540 AND 1000 RPM, SINGLE SPEED - 1000 RPM, 1-3/8 INCH, IF EQUIPPED (06) - POWER TRAIN

1

1349453C1

HOUSING

ASSEMBLY - PTO, Replaces: 139281C3

1шт.

PTO housing serial number is stamped on top of PTO housing.

1шт.

2

9625178

PLUG,9/16" - 18 ORB

1шт.

3

1289335C3

PISTON

ASSEMBLY - brake, anti-creep, Replaces: 1289335C2

3шт.

4

238-5018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 5, 75 Duro

-018, 70 Duro, .739" ID x .070" Thk

3шт.

5

238-5216

O-RING,0.139" Thk x 1.109" ID, -216, Cl 5, 75 Duro

3шт.

9

68074C1

CYLINDER

- brake, anti-creep

2шт.

10

68073C1

CYLINDER

- brake, anti-creep

1шт.

11

238-5029

O-RING,0.07" Thk x 1.489" ID, -29, Cl 5, 75 Duro

-029, 70 Duro, 1.489" ID x .070 Thk

3шт.

12

68075C1

TUBE

- supply, brake

1шт.

13

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

-010, 70 Duro, .239" ID x .070" Thk

1шт.

14

68077C1

TUBE

- supply, brake

1шт.

18

222-502

TUBE NUT,7/16"-24

NUT - hex, 7/16-24 inch thread

4шт.

19

139287C2

GASKET

- cover, Replaces: 139287C1

1шт.

20

148661C2

COVER

ASSEMBLY - housing, Includes: Ref. 21

1шт.

21

19846R1

DOWEL,1/2" x 1 1/4"

PIN - dowel, 1/2 x 1-1/4 inch

2шт.

22

413-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

- hex, 1/2 NC x 1-5/8 inch

2шт.

23

813-12140

BOLT,Hex, M12 x 1.75 x 140mm, Cl 8.8

- hex, 12 - 1.75 x 140 mm

6шт.

24

813-12120

BOLT,Hex, M12 x 1.75 x 120mm, Cl 8.8

- hex, 12 x 120 mm

2шт.

25

108522C1

WASHER

- seal, copper

2шт.

27

1968272C2

PLUG

- hex socket, 1-3/4 - 16 inch thread, single-speed PTO only

1шт.

28

364108R1

O-RING,0.103" Thk x 1.799" ID, -133, Cl 5, 75 Duro

- 1-13/16 ID x 3/32 inch, if equipped, single-speed PTO only

1шт.

29

381480R1

OIL SEAL

- oil, shaft, single-speed requires 1

2шт.

29

381480R1GV

SEAL

Value, Oil Seal

2шт.

30

393211R1

SHIELD

- seal, shaft, dual-speed PTO only

1шт.

31

398739R1

RING

- seal, external, dual-speed PTO only

1шт.

32

148663C1

SHAFT

- output, 540 rpm, dual-speed PTO only

1шт.

33

ST293

BALL BEARING,45mm ID x 100mm OD x 25mm W

BEARING ASSEMBLY - ball, dual-speed PTO only

1шт.

34

A31234

RING

- retaining, internal, dual-speed PTO only

1шт.

35

381505R1

SPACER,44.7mm ID x 57.15mm OD x 16.76mm L

- shaft, dual-speed PTO only

1шт.

36

381506R1

GEAR

- driven, dual-speed PTO only

1шт.

37

359894R1

RING, SNAP

RING - retaining, external, single-speed requires 1

2шт.

38

576539R1

NEEDLE BEARING,Needle, 22.2mm ID x 33.91mm OD x 38.1mm W

BEARING - needle, dual-speed PTO only

1шт.

40

381507R1

SHAFT,31.74mm OD x 98.81mm L

- idler, dual-speed PTO only

1шт.

41

381508R1

THRUST WASHER,32.26mm ID x 57.15mm OD x 2.39mm Thk

- thrust, gear, dual-speed PTO only

2шт.

42

381509R1

GEAR

- idler, PTO, dual-speed PTO only

1шт.

43

T15025

NEEDLE BEARING,Needle, 31.75mm ID x 38.11mm OD x 19.05mm W

BEARING - needle, dual-speed PTO only

2шт.

44

92501C1

SHAFT

- output, 1000 rpm, prior to PTO housing, Serial Range: -35685

1шт.

44

1349263C1

SHAFT

- output, 1000 rpm, PTO housing, Start Serial: 35685

1шт.

45

238-5138

O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro

1шт.

46

92588C2

BEARING ASSY,45mm ID x 100mm OD x 25mm W

BEARING - roller, 1000 rpm shaft, Replaces: 92588C1

1шт.

50

A31234

RING

- retaining, internal

1шт.

51

1268999C1

HOUSING

- clutch

1шт.

52

381485R1

RING,67.13mm ID x 72.21mm OD x 3.12mm Thk

- seal, cup

2шт.

53

1285725C1

THRUST WASHER,48mm ID x 65mm OD x 3.5mm Thk

- thrust, carrier

1шт.

54

68625C1

RING

- retaining, external

1шт.

55

68080C2

PISTON

- clutch

1шт.

56

D38248

SNAP RING,#187, Ext

Ring, Snap, #187, Ext

1шт.

57

238-5328

O-RING,0.21" Thk x 1.85" ID, -328, Cl 5, 75 Duro

4шт.

60

381488R1

RING,120.78mm ID x 134.34mm OD x 4.78mm Thk

SEAL - piston, clutch

1шт.

1277392C1

SET OF PARTS

DISC AND PLATE KIT - clutch, Includes: Ref. 61 and 62

1шт.

61

381489R3

DISC

- clutch

11шт.

62

381490R4

DISC

PLATE - clutch

10шт.

63

92490C1

CLUTCH PLATE,103.25mm ID x 145.8mm OD x 14mm Thk

- backing, clutch

1шт.

64

381492R1

CIRCLIP,M137.16 x 3.07mm Thk, Int

RING - snap, disc

1шт.

65

381493R1

SPRING

- release

1шт.

66

381494R1

RETAINER

- spring

1шт.

67

370504R1

RING

- retaining, external

1шт.

70

92510C1

SHAFT

- drive

1шт.

71

92488C1

SEAL,97.53mm ID x 103.53mm OD x 2.88mm Thk

SEAL - lube

1шт.

72

308674R91

NEEDLE BEARING

- roller

1шт.

73

92492C2

CARRIER

- clutch

1шт.

74

28235R1

SNAP RING,#250, 2.673", Int

RING - retaining

2шт.

75

92511C1

SEAL

SEAL - lube, carrier

2шт.

76

42411D

ELBOW,90 Degree x 3/8" NPT x 9/16"-20

- 90 degree 9/16-28 thread x 3/8 inch PT

1шт.

77

1285755C1

TUBE,0.375" OD, 135 mm Length

- lube, PTO

1шт.

78

239-5012

O-RING,Square, 0.062" Thk x 0.375" ID, -12, Cl 5, 75 Duro

1шт.

79

222-504

TUBE NUT,9/16"-20

NUT - hex, 9/16-20 inch thread

1шт.

80

27935R1

12 PT SCREW,Flg, 3/8"-16 x 1 3/4"

SCREW - 12 point head, 3/8 NC x 1-3/4 inch

4шт.

84

1277396C1

BEARING, NEEDLE

BEARING ASSEMBLY - roller, needle

1шт.

85

1286466C1

BEARING, THRUST

BEARING - thrust

1шт.

86

92502C1

THRUST WASHER,50.05mm ID x 69.95mm OD x 3.05mm Thk

WASHER - thrust, bearing

2шт.

87

327068R1

RING, SNAP

RING - snap, bearing

2шт.

88

1963868C1

RING, SNAP

RETAINER - bearing

1шт.

89

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

4шт.

90

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

93

139286C3

GASKET

- housing, Replaces: 139286C2

1шт.

94

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

- 90 degree, 11/16-16 face x 9/16-18 inch adj. O-ring, Includes: Ref. 95 and 96

2шт.

Straight Adapter is 201-101

1шт.

96

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face end -012, 90 Duro, .364" ID x .070" Thk

1шт.

97

201-321

ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

- 45 degree adjustable jumpsize, 9/16-18 x 13/16-16 inch thread, Includes: Ref. 98 and 99

1шт.

99

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face end -014, 90 Duro, .489" ID x .070" Thk

1шт.

95

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.

98

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.
