Запчасти Case IH 7110 (6-150) - PTO CONTROL (06) - POWER TRAIN

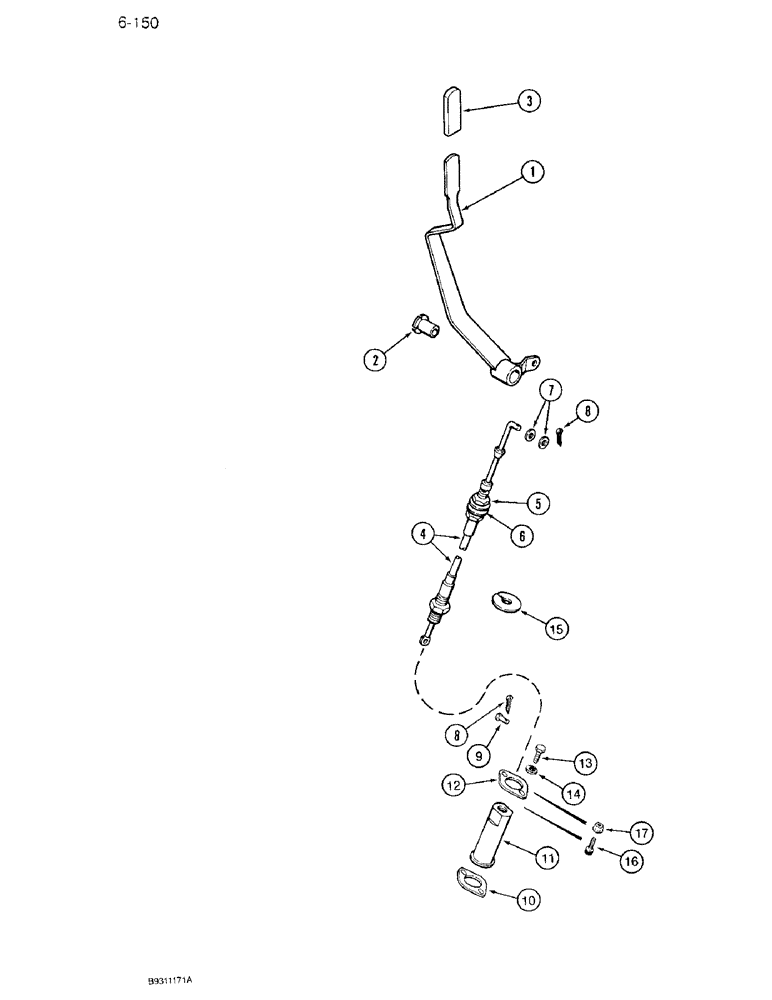

Схема запчастей Case IH 7110 - (6-150) - PTO CONTROL (06) - POWER TRAIN
10
13
6
16
12
5
8
4
17
7
3
2
8
11
15
14
9
1

Артикул

Название

Примечание

Количество

1

1280389C2

HANDLE

- control, PTO

1шт.

2

1283599C1

BUSHING,19.08mm ID x 28.58mm OD x 28.57mm L

- handle

1шт.

3

1283907C1

GRIP

- handle

1шт.

4

1280308C2

CABLE

ASSEMBLY - control, PTO, Includes: Ref. 5 and 6

1шт.

5

425-1510

JAM NUT,Jam, 5/8"-18, G5

- hex jam, 5/8 inch NF

3шт.

6

495-21069

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 9/64 inch

2шт.

7

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

8

32-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

9

97237C1

AXLE PIN

PIN - clevis

1шт.

10

97238C1

SPACER

- cable support housing

1шт.

11

1340478C1

HOUSING

- support, cable, Replaces: 96791C1

1шт.

12

1280055C1

FLANGE

- cable support housing

1шт.

13

827-6020

BOLT,Hex, M6 x 20mm, Cl 10.9, Full Thd

- hex, 6 x 20 mm, if used

2шт.

14

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

If used M6

2шт.

15

1344103C1

WASHER

- split, cable

1шт.

16

879-10625

SET SCREW,Hex Skt, M6 x 20mm, Cup Pt

SCREW - set, hex socket, 6 x 25, if used

2шт.

17

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

If used M6 x 1, Flg, Cl 8

2шт.

Выбрано товаров: 17
