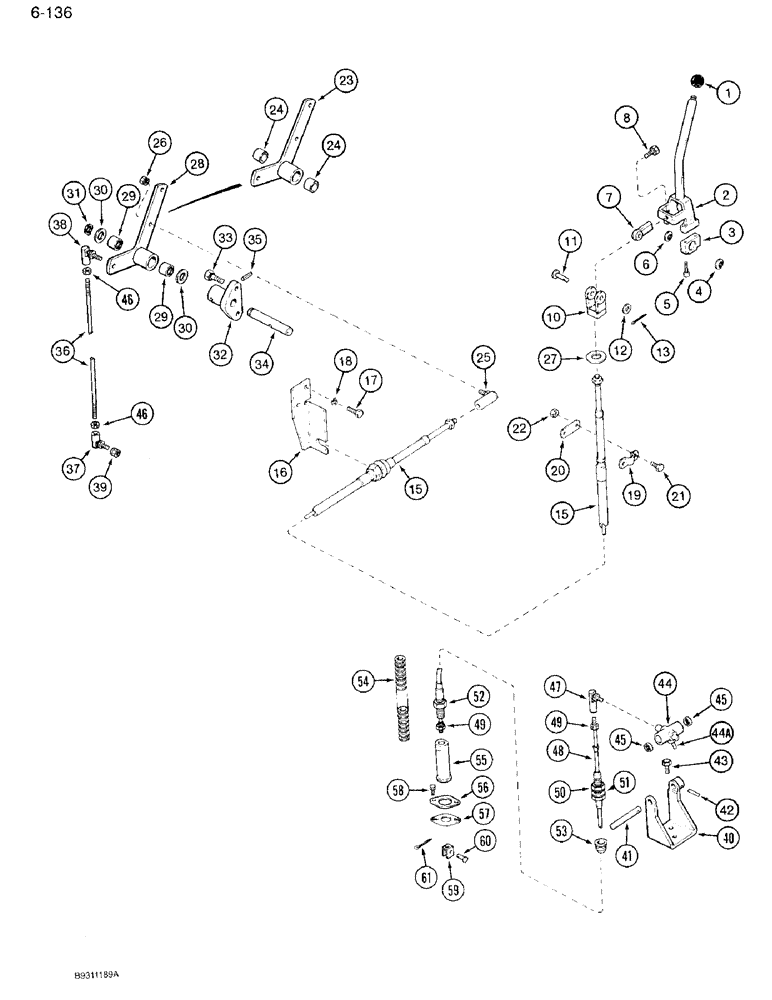

Запчасти Case IH 7110 (6-136) - TRANSMISSION SHIFT CONTROL, P.I.N. JJA0018865 AND AFTER (06) - POWER TRAIN

1

1280096C1

KNOB

- handle

1шт.

2

96487C4

HANDLE

- control, shift

1шт.

3

96580C3

BEARING HOUSING

BLOCK ASSEMBLY - bearing, Includes: Ref. 4

2шт.

4

96579C1

BEARING CUP,Needle, 12.7mm ID x 17.46mm OD x 7.92mm W

1шт.

5

96637C1

HEX SOC SCREW,M4 x 35mm

BOLT - hex socket head, 4 x 35 mm

4шт.

6

96982C1

WASHER

- beveled, handle pivot

2шт.

7

97202C1

BALL JOINT

END ASSEMBLY - rod

1шт.

8

414-614

BOLT,Hex, 3/8" - 24 x 7/8", Gr 5

- hex, 3/8 NF x 7/8 inch

1шт.

10

1340129C2

CLEVIS

- cable

1шт.

11

23304R1

CLEVIS PIN,3/8" x 1 9/16"

PIN, CLEVIS, 3/8" x 1 9/16"

1шт.

12

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

13

432-616

COTTER PIN,3/32" x 1"

3/32" x 1"

1шт.

15

1343929C2

CABLE ASSY.

CABLE ASSEMBLY - speed

1шт.

16

1344098C1

SUPPORT

BRACKET - cable

1шт.

17

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, 8 x 25 mm

2шт.

18

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

19

1344178C1

CLAMP

- cable

1шт.

20

1344099C1

BLOCK

SHIM - clamp

1шт.

21

628-6020

BOLT,Hex, M6 x 20mm, Cl 10.9, Full Thd

2шт.

22

832-41306

NUT,M6 x 1, Cl 10

NUT, LOCK, , Replaces 825-1406 M6 x 1, Cl 10

2шт.

23

1987155C1

LEVER

ASSEMBLY - speed, bellcrank, Includes: Ref. 24

1шт.

24

1344333C1

BUSHING,19.1mm ID x 25.48mm OD x 19.05mm L

- speed shift lever

2шт.

25

310673R1

BALL JOINT

JOINT ASSEMBLY - ball

1шт.

26

131-1169

LOCK NUT,5/16"-24, GA

NUT, LOCK, 5/16"-24, GA

1шт.

27

1344234C1

WASHER

- cable

1шт.

28

1283930C2

LEVER

ASSEMBLY - bellcrank, no longer available, for service order ref. 23, 1987155C1 lever assembly, Includes: Ref. 29

1шт.

29

97002C1

BEARING CUP,Needle, 19.05mm ID x 25.4mm OD x 20.62mm W

- needle

2шт.

30

1251551C1

WASHER

- flat, shaft

2шт.

31

23090R1

SNAP RING,#75, Ext

Ring, Snap, #75, Ext

1шт.

32

96992C2

SUPPORT ASSY.

SUPPORT - bell crank

1шт.

33

854-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 10.9

- hex, 10 x 30 mm, class 10.9

2шт.

34

1283945C1

SHAFT

- bellcrank

1шт.

35

30394R1

LOCK PIN,M6 x 50, Slotted

PIN - slotted spring, 6 x 50 mm

1шт.

36

1283926C1

ROD

- link, speed link

1шт.

37

158397H1

BALL JOINT

JOINT ASSEMBLY - ball, rod, Replaces: 653867C1

1шт.

A right hand thread 3/8" one end female and the other male fine thread.

1шт.

38

D133522

BALL JOINT,3/8" - 24 x 1-3/8"

JOINT ASSEMBLY - ball, rod

1шт.

39

131-1133

NUT,3/8"-24, GC

NUT - hex center lock, 3/8 inch NF

2шт.

40

1987022C1

SUPPORT

- handle, shift, Replaces: 96582C1

1шт.

41

96585C1

SHAFT

- trunnion

1шт.

42

30266R1

PIN,M4 x 20, Coiled

- coiled spring, 4 x 20 mm

1шт.

43

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 25 mm

2шт.

44

1340024C2

TRUNNION

ASSEMBLY - pivot, Replaces: 1340024C1, Includes: Ref. 44A and 45

1шт.

44a

124591A1

PIN,6.01mm OD x 35mm L

Trunnion, 6 x 35 mm, hardened

1шт.

45

96579C1

BEARING CUP,Needle, 12.7mm ID x 17.46mm OD x 7.92mm W

2шт.

46

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex jam, 3/8 inch NF

2шт.

47

281800C2

BALL JOINT

JOINT ASSEMBLY - ball, cable

1шт.

48

96612C3

CABLE ASSY.,1660mm L

CABLE ASSEMBLY - shift, F-N-R, Replaces: 96612C1, Includes: Ref. 49, 50, 51, and 52

1шт.

49

425-154

JAM NUT,Jam, 1/4"-28, G5

- hex jam, 1/4 inch NF

2шт.

50

425-157

JAM NUT,Jam, 7/16"-20, G5

2шт.

51

495-81120

WASHER,.344" x 1 1/4" x .120"

- flat, 1/2 x 1-1/4 x 5/64 inch

2шт.

52

425-1510

JAM NUT,Jam, 5/8"-18, G5

- hex jam, 5/8 inch NF

1шт.

53

96988C2

GROMMET

- cable, Replaces: 96988C1

1шт.

54

118156C1

CONDUIT

- convoluted, cable

1шт.

55

1340478C1

HOUSING

- support, cable

1шт.

56

1280055C1

FLANGE

- cable support housing

1шт.

57

97238C1

SPACER

- cable support housing

1шт.

58

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

2шт.

59

96790C2

CLEVIS COUPLING

CLEVIS - cable

1шт.

60

96846C2

AXLE PIN,7.87mm OD x 19.78mm L

PIN - clevis

1шт.

61

732-2012

COTTER PIN,M2 x 12

1шт.
