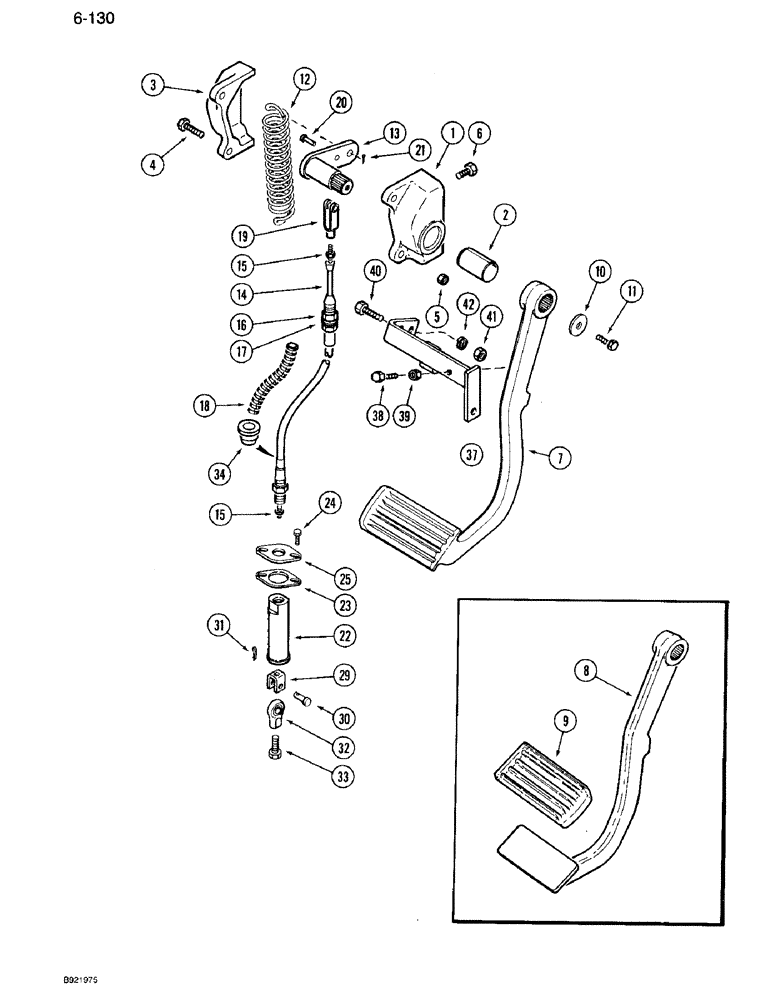

Запчасти Case IH 7110 (6-130) - INCHING PEDAL (06) - POWER TRAIN

1

120174C1

SUPPORT

ASSEMBLY - pivot, Includes: Ref. 2

1шт.

2

120173C1

BUSHING,30.28mm ID x 32.56mm OD x 47.37mm L

- pivot

1шт.

3

1252700C1

SUPPORT ASSY.

SUPPORT - pivot, pedal

1шт.

4

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

5

129-529

NUT,3/8"-16, G5, Hvy

2шт.

6

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

5шт.

7

1340256C1

PEDAL

- clutch, Start Serial: JJA0027701

1шт.

8

96942C1

PEDAL

- clutch, Serial Range: -JJA0027701

1шт.

9

97066C3

PAD

- pedal, clutch, Serial Range: -JJA0027701

1шт.

10

495-81120

WASHER,.344" x 1 1/4" x .120"

- flat, 11/32 x 1-1/4 x 7/64 inch

1шт.

11

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

12

1990620C1

SPRING

- return, Serial Range: -JJA0028200

1шт.

12

96897C2

SPRING

- return, Start Serial: JJA0028200

1шт.

13

1990549C1

ARM

- lever, pedal, Replaces: 96664C1

1шт.

14

96481C2

CABLE

ASSEMBLY - clutch, grommet, Includes: Ref. 15, 16, 17, and 34

1шт.

15

425-154

JAM NUT,Jam, 1/4"-28, G5

- hex, jam, 1/4 inch NF

2шт.

16

425-1510

JAM NUT,Jam, 5/8"-18, G5

- hex jam, 5/8 inch NF

3шт.

17

495-21069

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 9/64 inch

2шт.

18

118156C1

CONDUIT

- convoluted

1шт.

19

213-31

CLEVIS

YOKE - clevis, 1/4 inch

1шт.

20

141-52

CLEVIS PIN,1/4" x .770"

PIN - clevis, 1/4 inch

1шт.

21

32-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

22

1340478C1

HOUSING

- support, cable

1шт.

23

1280055C1

FLANGE

- housing

1шт.

24

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

2шт.

25

97238C1

SPACER

- flange, housing

1шт.

29

96790C2

CLEVIS COUPLING

CLEVIS - cable

1шт.

30

96846C2

AXLE PIN,7.87mm OD x 19.78mm L

PIN - clevis, Replaces: 96846C1

1шт.

31

732-2012

COTTER PIN,M2 x 12

1шт.

32

97202C1

BALL JOINT

ROD - end

1шт.

33

414-614

BOLT,Hex, 3/8" - 24 x 7/8", Gr 5

- hex, 3/8 NF x 7/8 inch

1шт.

34

96989C2

GROMMET

- cable

1шт.

37

96934C3

BRACKET

- stop, pedal

1шт.

38

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

hex, CL 8.8, M8 x 1.25 x 30

1шт.

39

825-1108

NUT,Hex, M8, Cl 8

1шт.

40

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

3шт.

41

825-1110

NUT,M10, Cl 8

hex M10, Cl 8

2шт.

42

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm

3шт.
