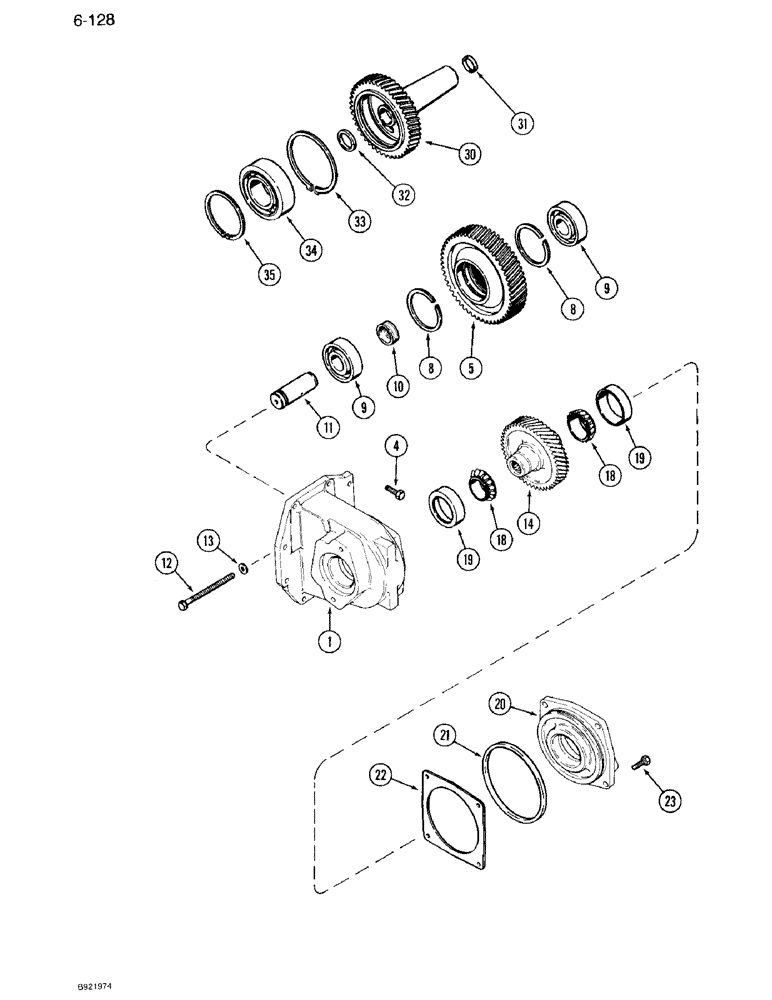

Запчасти Case IH 7110 (6-128) - TRANSMISSION PUMP DRIVE, TRANSMISSION SERIAL NUMBER AJB0041175 AND AFTER (06) - POWER TRAIN

1

1342329C1

HOUSING

ASSEMBLY - drive, transmission pump

1шт.

4

613-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

- hex, 10 mm - 1.50 x 30 mm

6шт.

4

813-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

- hex, 10 mm - 1.50 x 40 mm

2шт.

5

1286045C1

GEAR WHEEL

GEAR - idler

1шт.

8

472163R1

RING

- snap

2шт.

9

93315C1

BALL BEARING,35 mm ID x 80 mm OD x 21 mm

ASSEMBLY - ball

2шт.

10

93316C1

SPACER,35.36mm ID x 42.87mm OD x 12.3mm L

- gear, idler

1шт.

11

1286151C1

SHAFT

- gear, idler

1шт.

12

814-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 8.8

- hex, 10 x 130 mm

1шт.

13

896-12010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

- flat, 11 x 21 x 2.5 mm

1шт.

14

1342330C1

PINION

GEAR - drive, pump

1шт.

18

399933C91

ROLLER BEARING,45.24mm ID x 19.81mm W

CONE - bearing 1-25/32 ID

2шт.

19

399934C1

BEARING CUP,73.43mm OD x 15.75mm W

CUP - bearing

2шт.

20

1342331C1

FLANGED BEARING

- bearing

1шт.

21

238-5257

O-RING,0.139" Thk x 5.859" ID, -257, Cl 5, 75 Duro

1шт.

1264557C1

SHIM KIT

- pump drive, Includes: Ref. 22

1шт.

22

120946C1

SHIM,159mm ID x 176mm OD x 0.08mm Thk

Pump drive, 3 in kit 0.080mm Thk

1шт.

22

120947C1

SHIM,159mm ID x 176mm OD x 0.1mm Thk

Pump drive, 3 in kit 0.100mm Thk

1шт.

22

120948C1

SHIM,159mm ID x 176mm OD x 0.13mm Thk

Pump drive, 3 in kit 0.130mm Thk

1шт.

22

120949C1

SHIM,159mm ID x 176mm OD x 0.3mm Thk

Pump drive, 3 in kit 0.300mm Thk

1шт.

22

149011C1

SHIM,159mm ID x 176mm OD x 0.76mm Thk

Pump drive, 3 in kit 0.76mm Thk

1шт.

23

613-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

- hex, 10 mm - 1.50 x 30 mm

4шт.

30

1286014C1

GEAR WHEEL

GEAR - drive, pump, PTO

1шт.

31

238-5216

O-RING,0.139" Thk x 1.109" ID, -216, Cl 5, 75 Duro

PTO drive -216, 70 Duro, 1.109" ID x .139" Thk

1шт.

32

1286023C1

RING,Locking, 43.31mm ID x 47.31mm OD x 2.87mm Thk

- seal, gear, PTO drive

1шт.

33

114349H1

SNAP RING,#237, Ext

RING, SNAP, , PTO drive #237, Ext

1шт.

34

ST269A

BALL BEARING,60mm ID x 110mm OD x 22mm W

BEARING - shaft, Replaces: A20291, PTO drive

1шт.

35

101-21433

SNAP RING,#433, 4.641", Int

RING, SNAP, , Replaces 895107C1, PTO Drive #433, 4.641", Int

1шт.
