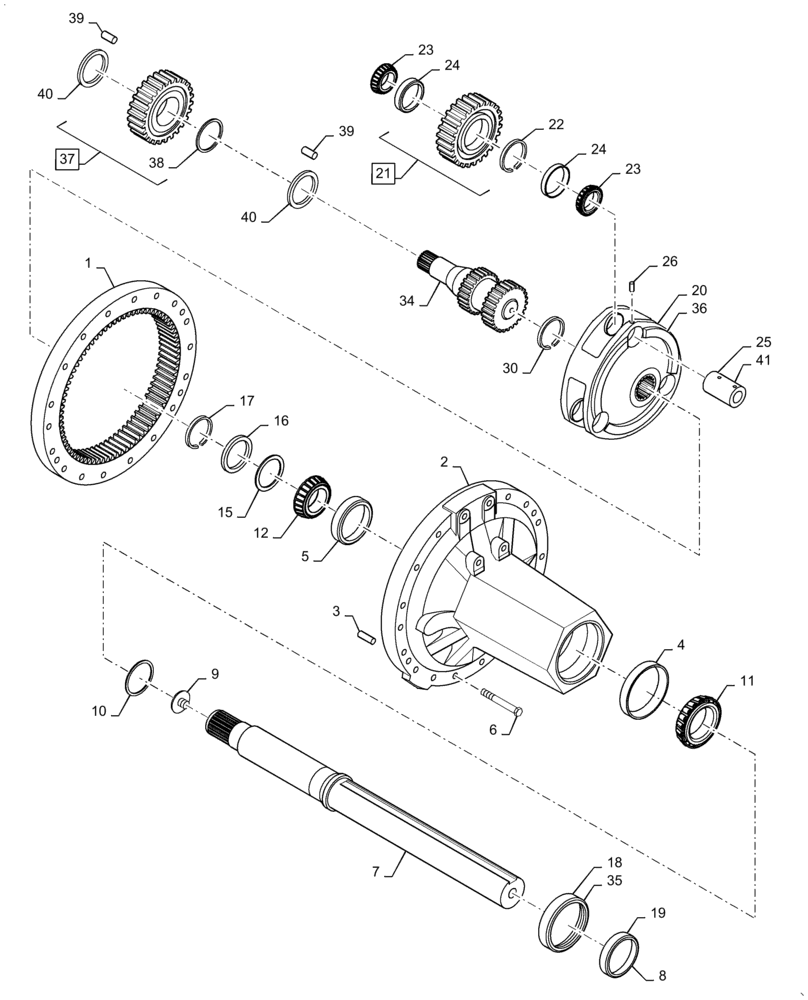

Запчасти Case IH 7110 (6-116) - REAR AXLE AND CARRIERS, 96 AND 112 INCH AXLE, 7110 TRACTOR (06) - POWER TRAIN

1

120942C2

GEAR

- 72T, ring axle, Replaces: 120942C1

2шт.

2

1968487C1

CARRIER

ASSEMBLY - axle, Replaces: 137768C1, Incl 3 - 5

2шт.

3

837-16040

DOWEL,M16 x 40

PIN - dowel, 16 x 40 mm

2шт.

4

619697C1

BEARING CUP,149.98mm OD x 26.90mm W

CUP - bearing

2шт.

5

622337C1

BEARING CUP,129.99mm OD x 23.90mm Thk

CUP - bearing, inner

2шт.

6

813-16120

BOLT,Hex, M16 x 2 x 120mm, Cl 8.8

- hex, 16 x 120 mm

32шт.

7

1968336C4

SHAFT ASSY.

AXLE ASSEMBLY - rear, 3-1/2 diameter x 112 inch, Replaces: 1968336C3, Incl 9

2шт.

7

1968337C4

SHAFT ASSY.

AXLE ASSEMBLY - rear, 3-1/2 diameter x 96 inch, Replaces: 1968337C3, Incl 9

2шт.

Changed on the earlier tractor serial numbers and a rear axle insert was positioned Ref. 9 on the end. The dealer will need to order this to complete the repair.

1шт.

8

1968333C1

BUSHING,90mm ID x 109.85mm OD x 19.5mm L

1шт.

Axle assembly item 7 was changed on the earlier tractor serial numbers and a rear axle insert was positioned item 9 on the end. The dealer will need to order this to complete the repair.

1шт.

9

1981270C1

INSERT

- rear axle

2шт.

10

238-5238

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

2шт.

11

38703D

BEARING, ROLLER, CYL,88.91mm ID x 36.22mm W

CONE - bearing

2шт.

12

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

CONE - bearing, inner

2шт.

15

1264592C1

SHIM KIT

- bearing, Incl 15 Shims, Three of Each Size

1шт.

15

143933C1

SHIM

- bearing, 0.76 mm, 3 in kit

1шт.

15

143934C2

SHIM

- bearing, 0.30 mm, 3 in kit

1шт.

15

143935C1

SHIM

- bearing, 0.18 mm, 3 in kit

1шт.

15

143936C1

SHIM

- bearing, 0.10 to 0.13 mm, 3 in kit

1шт.

15

143937C1

SHIM

- bearing, 0.06 to 0.09 mm, 3 in kit

1шт.

16

137777C1

RING

- thrust, axle

2шт.

17

1277025C1

RING

- retaining, axle

2шт.

94546C1

SEAL KIT

SEAL AND SLEEVE KIT - axle; Incl 19, 35

2шт.

18

85244C1

OIL SEAL

SEAL - oil, standard

2шт.

19

92688C1

BUSHING,109.87mm ID x 120mm OD x 25.5mm L

SLEEVE - wear

2шт.

20

137779C1

PINION CARRIER

CARRIER - gear, planet

2шт.

21

1251840C1

GEAR

GEAR ASSEMBLY - planet, if used; Incl 22

6шт.

22

67240C1

RING

- retaining, internal, if used

6шт.

23

625742C1

ROLLER BEARING,2.1654" ID x 3.5433" OD x 0.9055" W

CONE - bearing, if used

12шт.

24

625743C1

BEARING CUP,90mm OD x 18.5mm W

CUP - bearing, if used

12шт.

25

120461C5

SHAFT

- bearing, planet gear, if used

6шт.

26

30355R1

PIN,M8 x 26, Coiled

- spiral, 8 x 26 mm

6шт.

30

143938C1

SNAP RING,#315, 2.980, Ext

RING - retaining, external

2шт.

34

1981238C1

SHAFT

- sun gear final drive, Replaces: 1259732C1, A31227, 1259753C1, and 94803C1

2шт.

35

84842C1

OIL SEAL,120mm ID x 160.23mm OD x 12mm Thk

SEAL - oil, oversize, See 94546C1 kit

2шт.

36

1349351C1

PINION CARRIER

CARRIER - gear, planet, if used

2шт.

37

1349354C1

PINION

GEAR ASSEMBLY - planet, if used, Incl 38

6шт.

38

1349348C1

THRUST RING

RING - thrust, if used

6шт.

39

1349353C1

NEEDLE BEARING

BEARING - needle, if used

348шт.

40

1997886C1

THRUST WASHER

WASHER - thrust, if used

12шт.

41

1349352C1

SHAFT

- bearing, planet gear, if used

6шт.
