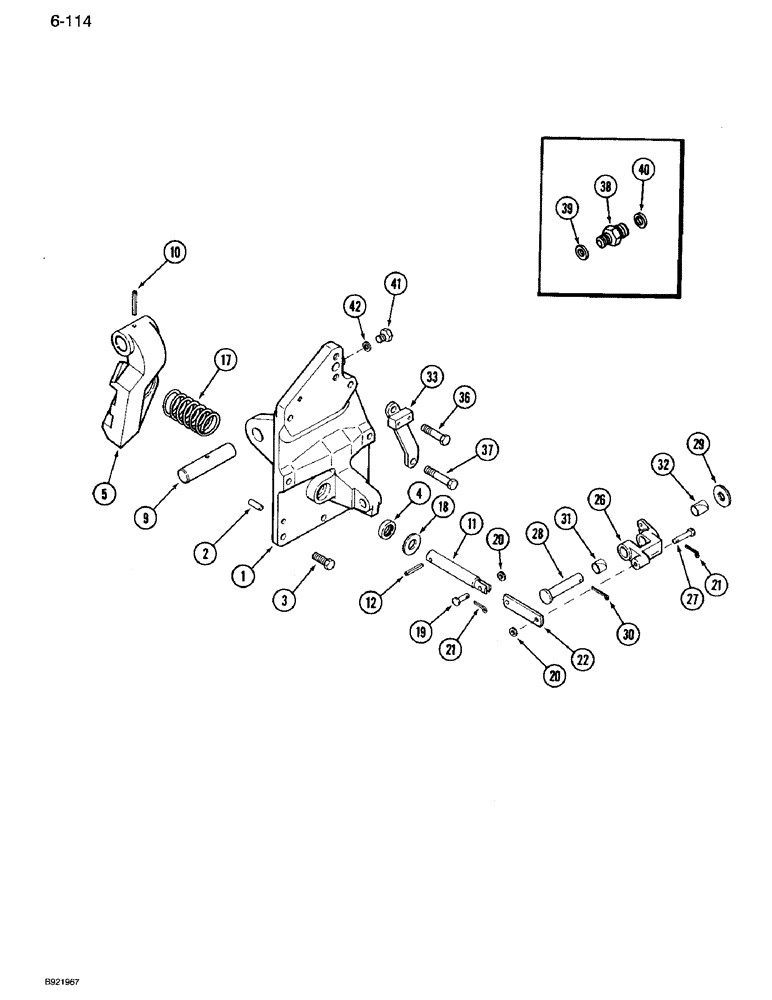

Запчасти Case IH 7110 (6-114) - TRANSMISSION, PARK LOCK (06) - POWER TRAIN

1

94809C3

COVER ASSY

COVER ASSEMBLY - lock, park, Includes: Ref. 2

1шт.

2

837-10025

DOWEL,M10 x 25

PIN - dowel, hardened, 10 x 25 mm

2шт.

3

613-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

- hex, 10 - 1.5 x 30 mm

3шт.

3

813-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

- hex, 10 - 1.5 x 40 mm

2шт.

4

G105118

OIL SEAL

- oil, Replaces: A50421

1шт.

5

94811C2

LEVER

- pawl, lock

1шт.

9

148740C1

SHAFT

- pawl, lock

1шт.

10

30681R1

PIN,M6 x 45, Coiled

- spring, 6 x 45 mm

1шт.

11

94813C1

ROD

ASSEMBLY - pull, lever, Includes: Ref. 12

1шт.

12

30797R1

PIN,M6 x 36, Coiled

- spring, 6 x 36 mm

1шт.

17

1968499C1

SPRING

- hold down lock

1шт.

18

195-545

WASHER,3/4", SAE

- flat, 13/16 x 1-15/32 x 1/8 inch, if used

1шт.

19

30569R1

CLEVIS PIN,M8 x 25

PIN - clevis, 8 x 25 mm

1шт.

20

934675R1

WASHER,M8 x 16 x 1.6

- flat, 8 x 17 x 2 mm

2шт.

21

732-2016

COTTER PIN,M2 x 16

PIN - cotter, 2 x 16 mm

2шт.

22

148743C1

BAR

LINK - over center, lock

1шт.

26

1954042C2

DRIVE, ANGLE

BELLCRANK - over center

1шт.

27

30739R1

CLEVIS PIN,M8 x 35

PIN - clevis, 8 x 35 mm

1шт.

28

94794C1

CLEVIS PIN

PIN - clevis, 16 x 80 mm

1шт.

29

495-81175

WASHER,21/32" x 1" x .120"

- flat, 21/32 x 1 x 7/64 inch

1шт.

30

732-4025

COTTER PIN,M4 x 25

PIN - cotter, 4 x 25 mm

1шт.

31

94795C1

STRIP

BEARING - strip, bellcrank

1шт.

32

94796C1

BUSHING

- strip, bellcrank

1шт.

33

1334342C1

BRACKET

- cable

1шт.

36

813-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

- hex, 10 - 1.5 x 45 mm

1шт.

37

813-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

- hex, 10 - 1.5 x 60 mm

1шт.

38

201-126

HYD CONNECTOR,13/16"-16 ORFS x 9/16"-20 ORB

CONNECTOR ASSEMBLY - straight, 9/16 x 13/16 inch thread, Includes: Ref. 39 and 40, Serial Range: -AJB0044915

1шт.

40

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face end -014, 90 Duro, .489" ID x .070" Thk

1шт.

41

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 42 Hex Hd, 9/16"-18 ORB, Start Serial: AJB0044915

1шт.

39

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.

42

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.
