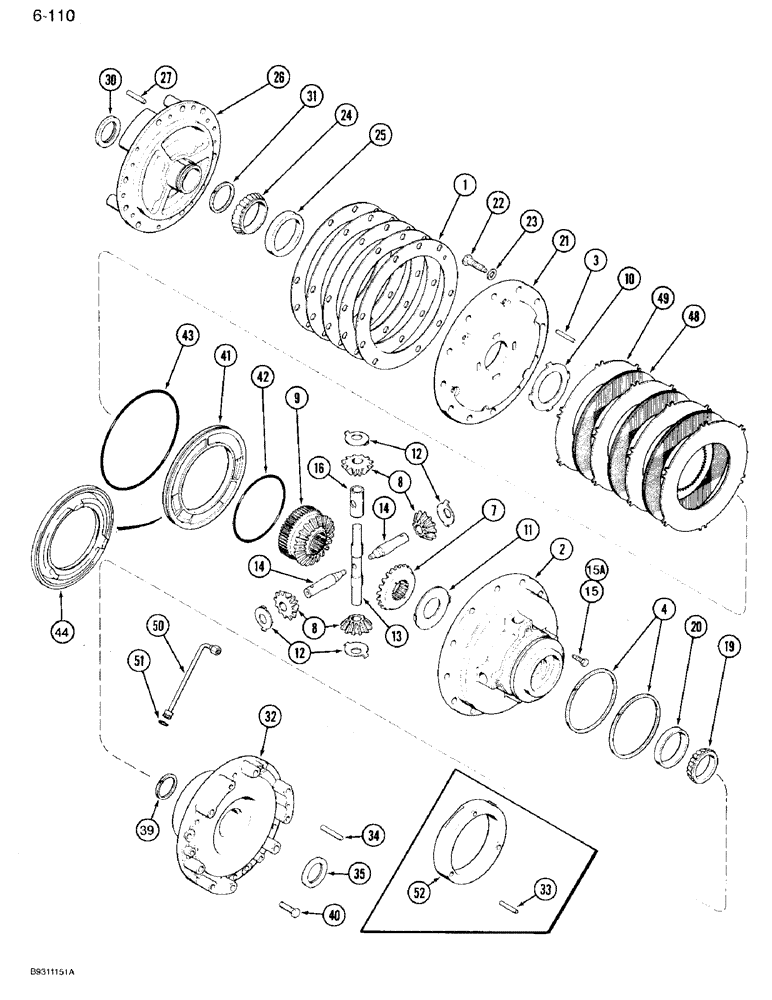

Запчасти Case IH 7110 (6-110) - TRANSMISSION, DIFFERENTIAL, 7110 TRACTOR (06) - POWER TRAIN

1264586C1

SHIM KIT

- retainer, Includes: Ref. 1

1шт.

1

120513C2

SHIM,290mm ID x 388mm OD x 0.08mm Thk

- retainer, 0.09 mm, 4 in kit

1шт.

1

120512C2

SHIM

- retainer, 0.10 mm, 4 in kit

1шт.

1

120509C2

SHIM

- retainer, 0.18 mm, 2 in kit

1шт.

1

120510C2

SHIM

- retainer, 0.31 mm, 4 in kit

1шт.

1

120511C2

SHIM

- retainer, 0.74 mm, 2 in kit

1шт.

2

1997751C1

CAGE

CASE - differential, right, Replaces: 94643C1 and 94643C2

1шт.

There is no seal groove in this housing and is to be used with piston #44 (has molded in seals).

1шт.

3

837-10060

DOWEL,M10 x 60

PIN - dowel, hardened, 10 x 60 mm

6шт.

4

148940C1

RING

- seal

2шт.

7

1264681C2

GEAR

- bevel, differential, 22 teeth

1шт.

8

1264923C2

GEAR

- pinion, differential, 12 teeth

4шт.

9

1264682C2

GEAR

- lock, bevel

1шт.

10

94646C2

LOCK WASHER,88mm ID x 144mm OD x 1.62mm Thk

- thrust, lock, Replaces: 94646C1

1шт.

11

94647C2

THRUST WASHER,58mm ID x 124mm OD x 1.62mm Thk

- thrust, differential, Replaces: 94647C1

1шт.

12

94645C2

THRUST WASHER,28mm ID x 75mm OD x 1.5mm Thk

- thrust, pinion, Replaces: 94645C1

4шт.

13

1276902C2

LONG SHAFT

SHAFT - pinion, long, Replaces: 1276902C1

1шт.

14

1285777C2

SHORT SHAFT

SHAFT - pinion, short, Replaces: 1285777C1

2шт.

15

1285778C1

BOLT,Hex, M10 x 1.5 x 33mm, Cl 10.9

BOLT - pin, pinion, if used

2шт.

15a

1997421C1

BOLT

- pin, pinion, if used

2шт.

16

1963820C1

SPACER

- gear

1шт.

19

529452R1

BEARING ASSY,2.9528" ID x 4.5276" OD x 0.9843"

CONE - bearing, right

1шт.

20

529453R1

BEARING, CUP

CUP - bearing, right

1шт.

21

94644C1

COVER ASSY

COVER - case differential

1шт.

22

828-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9

12шт.

23

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

Flat M17.5 x 30 x 4, HT

12шт.

24

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

CONE - bearing, left, 3.348 inch ID

1шт.

25

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

CUP - bearing, left

1шт.

26

137756C2

RETAINER

- bearing, left

1шт.

27

136433A1

DOWEL,M12 x 65mm, HDN

PIN - dowel, 12 x 65 mm, hardened, Replaces: 837-12065

5шт.

30

139059C1

SEAL,70mm ID x 90mm OD x 8mm Thk

- oil, retainer, Replaces: 136433A1

1шт.

31

148941C1

RING

- seal, bearing

1шт.

32

1997450C1

RETAINER

ASSEMBLY - differential, right, Replaces: 137798C3

1шт.

33

837-10060

DOWEL,M10 x 60

PIN - dowel, 10 x 60 mm, hardened, if equipped

3шт.

34

136433A1

DOWEL,M12 x 65mm, HDN

PIN - dowel, 12 x 65 mm, hardened, Replaces: 837-12065

5шт.

35

139059C1

SEAL,70mm ID x 90mm OD x 8mm Thk

- oil, Replaces: 136433A1

1шт.

39

148942C2

RING

- seal, retainer, if equipped

1шт.

40

613-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd

left retainer Hex, M16 x 40, 8.8, Full Thd

3шт.

40

613-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 8.8, Full Thd

right retainer Hex, M16 x 45, 8.8, Full Thd

3шт.

41

92914C1

PISTON ASSY.

PISTON - lock, differential, if used

1шт.

Piston is used with old housing which has seal groove.

1шт.

42

238-5264

O-RING,0.139" Thk x 7.484" ID, -264, Cl 5, 75 Duro

Used with Ref. 41, 92914C1 piston -264, 70 Duro, 7.484" ID x .139" Thk

1шт.

43

238-6277

O-RING,0.139" Thk x 11.484" ID, -277, Cl 6, 90 Duro

Used with Ref. 41, 92914C1 piston -277, 90 Duro, 11.484" ID x .139" Thk

1шт.

44

1997422C1

PISTON

- lock, differential, if used

1шт.

94667C1

PLATE

KIT - lock, differential, Includes: Ref. 48 and 49

1шт.

48

NSS

NOT SOLD SEPARAT

PLATE - friction

3шт.

49

NSS

NOT SOLD SEPARAT

PLATE - separator

4шт.

50

137803C1

HYD TUBE,9.25 mm Diameter, 222, 54.9 mm Length

TUBE - pressure, lock

1шт.

51

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

52

139226C1

RING

- slip, lock, if equipped

1шт.
