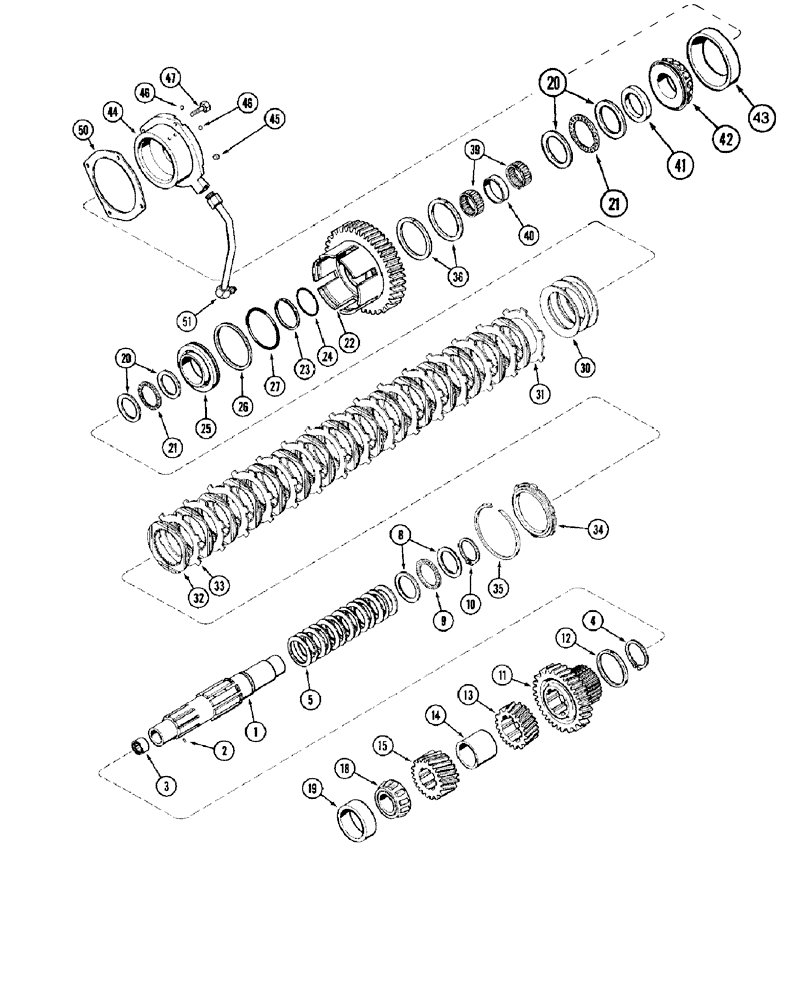

Запчасти Case IH 7110 (6-106) - TRANSMISSION, RANGE COUNTERSHAFT (06) - POWER TRAIN

1

1954059C2

SHAFT

ASSEMBLY - counter, Includes: Ref. 2

1шт.

2

38-3605

PIN,3/32" x 5/16", Coiled

Replaces: 20747R1 3/32" x 5/16", Coiled

3шт.

3

1277191C1

NEEDLE BEARING

ASSEMBLY - roller

1шт.

4

144348C1

SNAP RING,Ext Rtng, 66.294mm ID

RING - retainer, external

1шт.

5

1286012C2

BELLEVILLE WASHER

- return, Belleville

13шт.

8

1286043C1

THRUST WASHER,63.56mm ID x 82.38mm OD x 2.37mm Thk

WASHER - thrust, needle, 2.50 inch ID

2шт.

9

572182R1

THRUST BEARING,63.5mm ID x 82.5mm OD x 1.98mm W

BEARING ASSEMBLY - thrust, needle, 2.50 inch ID

1шт.

10

583564R1

SNAP RING,#250, 2.356, Ext

RING - retainer

1шт.

11

1285978C1

PINION

GEAR - driven, medium range, 39T

1шт.

12

1286052C1

RING,Locking, 98.8mm ID x 106.6mm OD x 4.5mm Thk

- seal, clutch

1шт.

13

1285980C1

PINION

GEAR - driven, high range

1шт.

14

1286041C2

SPACER

- gear, Replaces: 1286041C1

1шт.

15

1285990C1

PINION

GEAR - driver, constant mesh, 23T

1шт.

18

84986C1

BEARING ASSY,49.21mm ID x 44.48mm W

CONE - bearing

1шт.

19

84987C1

BEARING ASSY

CUP - bearing

1шт.

20

1286042C1

THRUST WASHER,57.21mm ID x 76.05mm OD x 2.37mm Thk

WASHER - thrust, needle, 2.25 inch ID

4шт.

21

K620185

THRUST BEARING

BEARING ASSEMBLY - thrust, needle, 2.25 inch ID

2шт.

22

1285968C3

GEAR

- driven, low range, Replaces: 1285968C2

1шт.

23

1286077C1

RING,74.96mm ID x 78mm OD x 2.28mm Thk

- driven, low range

1шт.

24

1286081C1

O-RING,1.78mm Thk x 69.57mm ID, -39, 60 Duro

RING - piston, low

1шт.

25

1285999C2

PISTON ASSY.

PISTON - clutch, low, Replaces: 1285999C1

1шт.

26

1286079C1

RING,128.96mm ID x 132mm OD x 2.28mm Thk

- piston

1шт.

27

1286083C1

O-RING,1.78mm Thk x 120.37mm ID, -48, 60 Duro

RING - piston, low

1шт.

30

93129C1

BELLEVILLE WASHER

- cushion Belleville

3шт.

31

93190C1

CLUTCH PLATE,107mm ID x 158mm OD x 2.01mm Thk

- reaction, spring

1шт.

32

92935C5

DISC,98.63mm ID x 141mm OD x 1.95mm Thk

- friction, clutch, Replaces: 92935C4

15шт.

33

92934C2

DISC

- separator, clutch

14шт.

34

1342854C1

DISC

- backing, clutch, Replaces: 1285994C1

1шт.

35

1285996C1

SNAP RING,151mm OD, Internal

RING - retaining, plate

1шт.

36

1286028C2

RING,109.41mm ID x 113.41mm OD x 2.87mm Thk

- gear, low range

2шт.

39

80907C1

NEEDLE BEARING,Needle, 57.15mm ID x 66.7mm OD x 25.4mm W

BEARING ASSEMBLY - needle, caged

2шт.

40

93269C1

SPACER,62.45mm ID x 66.48mm OD x 12.68mm L

- bearing

1шт.

41

1286038C1

SPACER

- bearing, front

1шт.

42

287679C1

BEARING ASSY,50.8mm ID x 26.91mm W

CONE - bearing

1шт.

43

1968297C1

BEARING CUP,47.62 mm ID x 111.15 mm OD x 30.36 mm

CUP - bearing

1шт.

44

1286119C2

CAGE

ASSEMBLY - bearing, Includes: Ref. 45 and 46, Serial Range: -AJB0055133

1шт.

44

1342622C1

BEARING HOUSING

CAGE ASSEMBLY - bearing, Includes: Ref. 45 and 46, Start Serial: AJB0055133

1шт.

45

1286084C1

PIN,12.02mm OD x 11mm L

- dowel, 12 x 11 mm

1шт.

46

30725R1

BALL,7mm Dia

- steel, 7 mm diameter, if equipped

1шт.

47

613-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

- hex, 10 x 30 mm, Replaces: 30021R1

4шт.

93277C1

SHIM KIT

- cage, Includes: Ref. 50

1шт.

50

1286066C1

SHIM,149mm ID x 180mm OD x 0.08mm Thk

Cage, 2 in kit 0.08mm Thk

1шт.

50

1286067C1

SHIM,149mm ID x 180mm OD x 0.1mm Thk

Cage, 2 in kit 0.10mm Thk

1шт.

50

1286068C1

SHIM,149mm ID x 180mm OD x 0.13mm Thk

Cage, 2 in kit 0.13mm Thk

1шт.

50

1286069C1

SHIM,149mm ID x 180mm OD x 0.3mm Thk

Cage, 2 in kit 0.30mm Thk

1шт.

50

1286070C1

SHIM,149mm ID x 180mm OD x 0.76mm Thk

Cage, 2 in kit 0.76mm Thk

1шт.

51

1286087C1

TUBE

- rear, low clutch

1шт.
