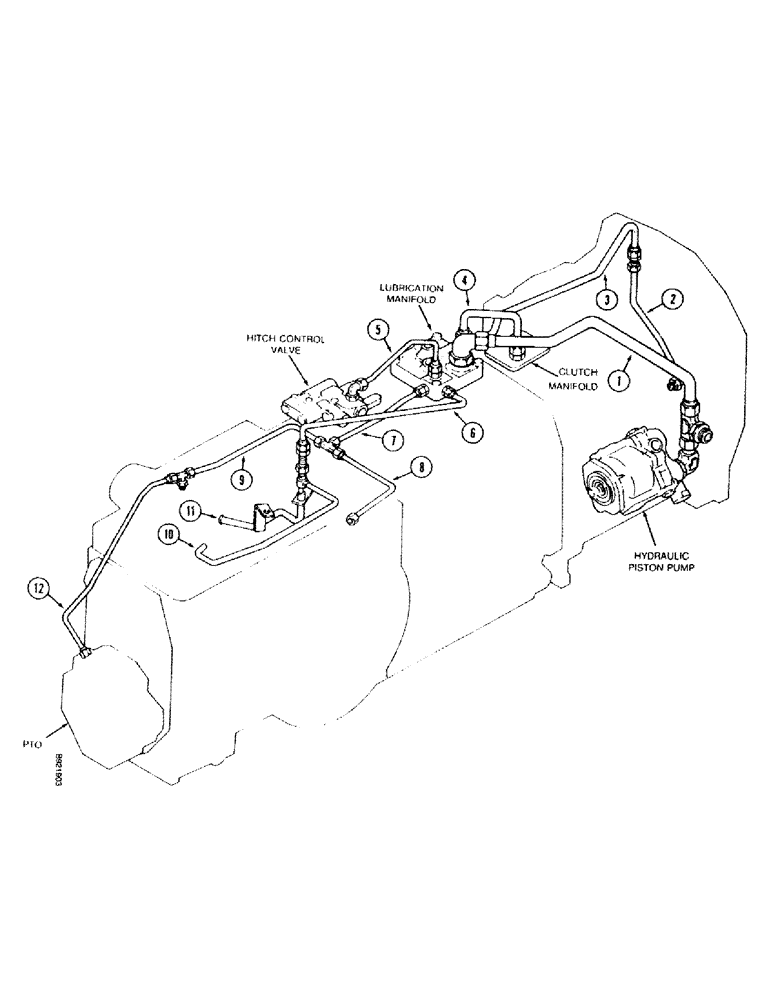

Запчасти Case IH 7110 (1-22) - PICTORIAL INDEX, LUBRICATION HYDRAULICS, TRANSMISSION SERIAL NUMBER AJB0055133 AND AFTER (00) - PICTORIAL INDEX

1

Manifold Lubrication Tube, Pg 8-7B

1шт.

2

Lubrication Supply Tube, Pg 6-27

1шт.

3

Creeper Drive Lubrication Tube, Pg 6-51

1шт.

4

Odd/Even Lubrication Tube, Pg 6-51

1шт.

5

Valve Return Tube, Pg 8-41

1шт.

6

Draft Cylinder Lubrication Tube, Pg 6-51

1шт.

7

Main Lubrication Supply Tube, Pg 6-51

1шт.

8

Right Brake Lubrication Tube, Pg 6-53

1шт.

9

Left Brake Lubrication Tube, Pg 6-53

1шт.

10

Internal Lubrication Tube, Pg 8-43

1шт.

11

Bevel Gear Lubrication Tube, Pg 6-125

1шт.

12

PTO Lubrication Tube, Pg 6-53

1шт.
