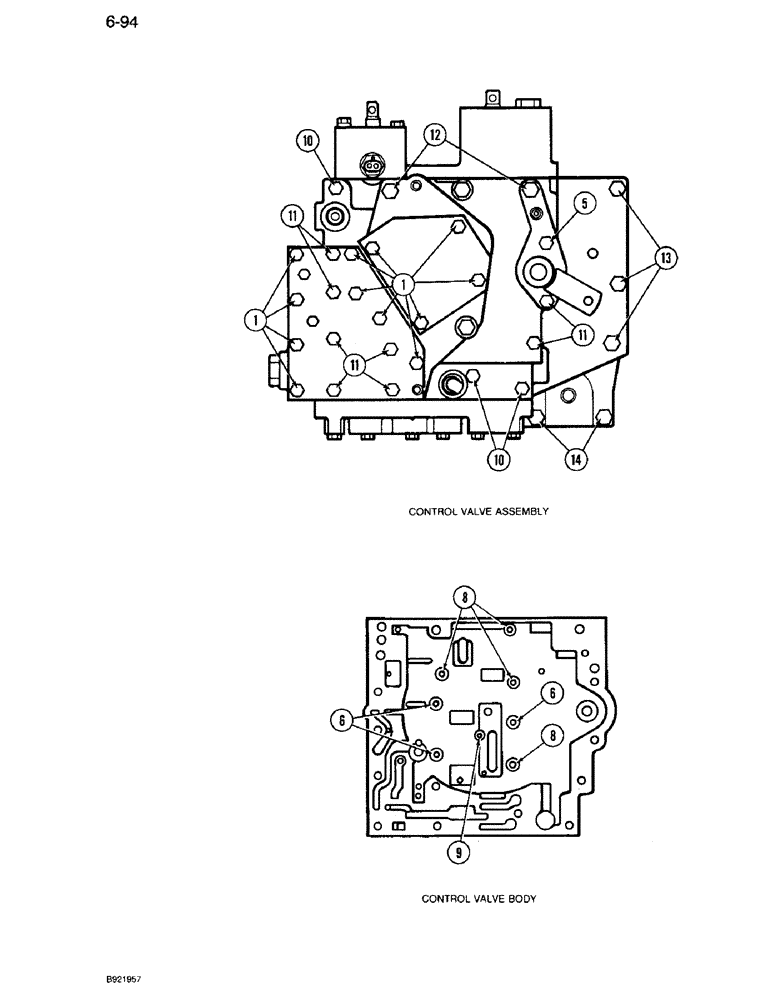

Запчасти Case IH 7110 (6-094) - TRANSMISSION CONTROL VALVE ASSEMBLY, VALVE BOLTS AND PATTERN, FOUR SPEED REVERSE VALVES (06) - POWER TRAIN

1981145C2

VALVE

ASSEMBLY - control, without creeper, Includes: Ref. 1, 5, and 6, Serial Range: -AJB0055133

1шт.

1981146C2

VALVE

ASSEMBLY - control, with creeper, Includes: Ref. 1, 5, and 6, Serial Range: -AJB0055133

1шт.

1994672C1

VALVE, CONTROL

VALVE ASSEMBLY - control, without creeper, Includes: Ref. 1, 5, and 6, Serial Range: AJB0055133-AJB0059983

1шт.

1994673C1

VALVE, CONTROL

VALVE ASSEMBLY - control, with creeper, Includes: Ref. 1, 5, and 6, Serial Range: AJB0055133-AJB0059983

1шт.

103182A1

VALVE, CONTROL

VALVE ASSEMBLY - control, without creeper, Includes: Ref. 1, 5, and 6, Start Serial: AJB0059984

1шт.

103183A1

VALVE, CONTROL

VALVE ASSEMBLY - control, with creeper, Includes: Ref. 1, 5, and 6, Start Serial: AJB0059984

1шт.

1

613-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, 8 x 25 mm

12шт.

5

828-8120

BOLT,Hex, M8 x 1.25 x 120mm, Cl 10.9

- hex, 8 x 120 mm, class 10.9, Replaces: 31255R1

1шт.

6

862-8055

HEX SOC SCREW,M8 x 55mm, Cl 12.9

BOLT - hex socket, 8 x 55 mm, Replaces: 561-601

3шт.

8

861-8070

HEX SOC SCREW,M8 x 70mm, Cl 12.9

BOLT - hex socket, 8 x 70 mm, class 12.9, Replaces: 30830R1

4шт.

9

862-6070

HEX SOC SCREW,M6 x 70mm, Cl 12.9

BOLT - hex socket, 6 x 70 mm, Replaces: 864-6070

1шт.

10

828-8120

BOLT,Hex, M8 x 1.25 x 120mm, Cl 10.9

- hex, 8 x 120 mm, class 10.9

3шт.

11

828-8140

BOLT,Hex, M8 x 1.25 x 140mm, Cl 10.9

- hex, 8 x 140 mm, class 10.9, Replaces: 31256R1

8шт.

12

813-10175

BOLT,Hex, M10 x 1.5 x 175mm, Cl 8.8

- hex, 10 x 175 mm

2шт.

13

813-10065

BOLT,Hex, M10 x 1.5 x 65mm, Cl 8.8

- hex, 10 x 65 mm, Replaces: 931352R1

3шт.

14

814-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8

4шт.
