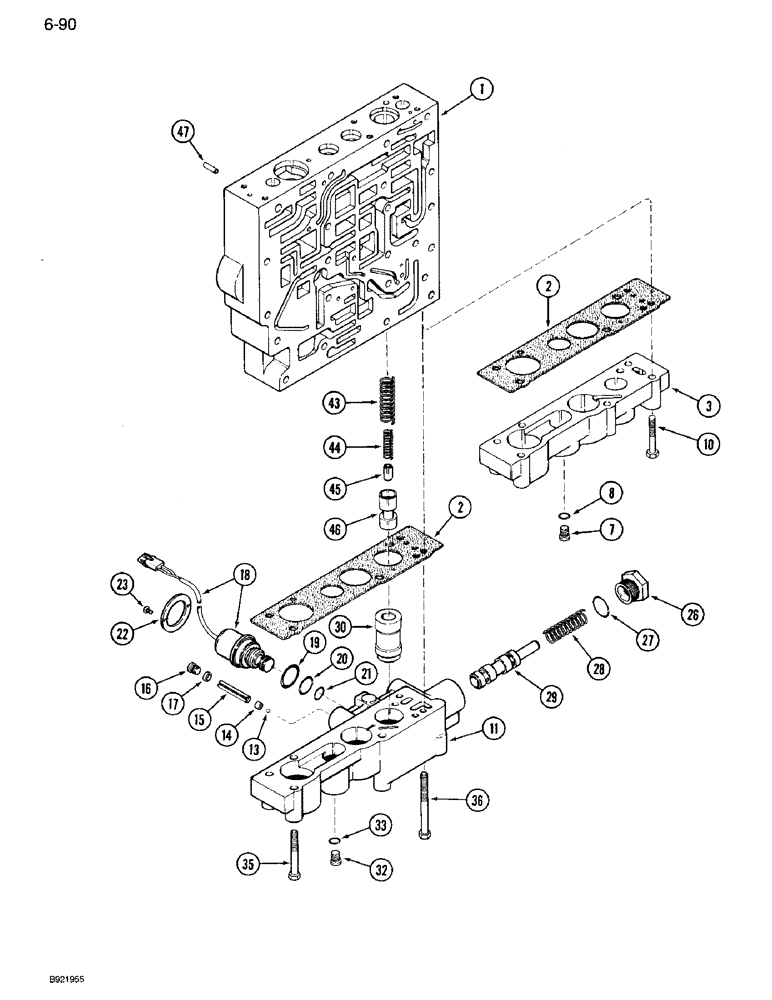

Запчасти Case IH 7110 (6-090) - TRANS. CONTROL VALVE ASSY, BODY SECTION, CREEPER VALVE BODY & LOWER PLATE, FOUR SPEED REVERSE VALVES (06) - POWER TRAIN

1981145C2

VALVE

ASSEMBLY - control, without creeper, Includes: Ref. 1 - 47, Serial Range: -AJB0055133

1шт.

1981146C2

VALVE

ASSEMBLY - control, with creeper, Includes: Ref. 1 - 47, Serial Range: -AJB0055133

1шт.

1994672C1

VALVE, CONTROL

VALVE ASSEMBLY - control, without creeper, Includes: Ref. 1 - 47, Serial Range: AJB0055133-AJB0059983

1шт.

1994673C1

VALVE, CONTROL

VALVE ASSEMBLY - control, with creeper, Includes: Ref. 1 - 47, Serial Range: AJB0055133-AJB0059983

1шт.

103182A1

VALVE, CONTROL

VALVE ASSEMBLY - control, without creeper, Includes: Ref. 1 - 47, Start Serial: AJB0059984

1шт.

103183A1

VALVE, CONTROL

VALVE ASSEMBLY - control, with creeper, Includes: Ref. 1 - 47, Start Serial: AJB0059984

1шт.

1

REF

INSTRUCTION

BODY ASSEMBLY - valve, See Figure 6-84

1шт.

2

1968260C2

GASKET

- lower plate and valve body

1шт.

3

1981070C1

PLATE ASSY.

PLATE - lower, without creeper

1шт.

7

86529630

PLUG,Hex Soc, 3/8"-24 ORB

Assembly, Includes Ref. 8 Hex Soc, 3/8"-24 ORB

2шт.

8

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

10

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

- hex, 8 - 1.25 x 50 mm (8.8), Replaces 814-8050

6шт.

1981301C2

VALVE

ASSEMBLY - creeper, Includes: Ref. 1 - 33

1шт.

1968248C3

BODY

ASSEMBLY - creeper valve, Includes: Ref. 11 - 17

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - creeper valve

1шт.

13

211-205

BALL

- 7/32 inch diameter, Replaces: 17007R1

1шт.

14

NSS

NOT SOLD SEPARAT

SEAT - check valve

1шт.

15

138-137

LOCK PIN,1/4" x 1 3/8", Slotted

PIN, 1/4" x 1 3/8", Slotted

1шт.

16

86529630

PLUG,Hex Soc, 3/8"-24 ORB

Includes Ref. 17 Hex Soc, 3/8"-24 ORB

7шт.

17

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

18

1958159C2

SOLENOID VALVE

VALVE ASSEMBLY - solenoid, creeper, Includes: Ref. 19 - 21

1шт.

19

238-5121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

1шт.

20

238-5017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

-017, 70 Duro, .676" ID x .070" Thk

1шт.

21

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

-014, 70 Duro, .489" ID x .070" Thk

1шт.

22

1968281C1

RETAINER

- solenoid valve

1шт.

23

30841R1

SCREW,Cross Pan Hd, M4 x 8

- pan head cross recessed, 4 x 8 mm

2шт.

26

1963881C1

PLUG

- hex, 1-1/16-12 inch O-ring boss

1шт.

27

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

28

1968250C2

COMPRESSION SPRING

SPRING - compression, Replaces: 1968250C1

1шт.

29

1981127C3

SPOOL

- creeper valve

1шт.

30

1981071C1

PLUG

- valve body

1шт.

32

86529630

PLUG,Hex Soc, 3/8"-24 ORB

Assembly, Includes Ref. 33 Hex Soc, 3/8"-24 ORB

2шт.

33

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

35

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

- hex, 8 - 1.25 x 50 mm (8.8), Replaces 814-8055

3шт.

36

813-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

- hex, 8 x 80 mm, Replaces: 931535R1

3шт.

43

1963814C1

SPRING

- compression, creeper only

1шт.

44

1963815C1

SPRING

- compression, creeper only

1шт.

45

1981089C1

STOP

- spool, creeper only

1шт.

46

1981068C1

SPOOL

- blocker, creeper only

1шт.

47

837-6016

DOWEL,M6 x 16

PIN - dowel, 6 x 16 mm, without creeper

1шт.
