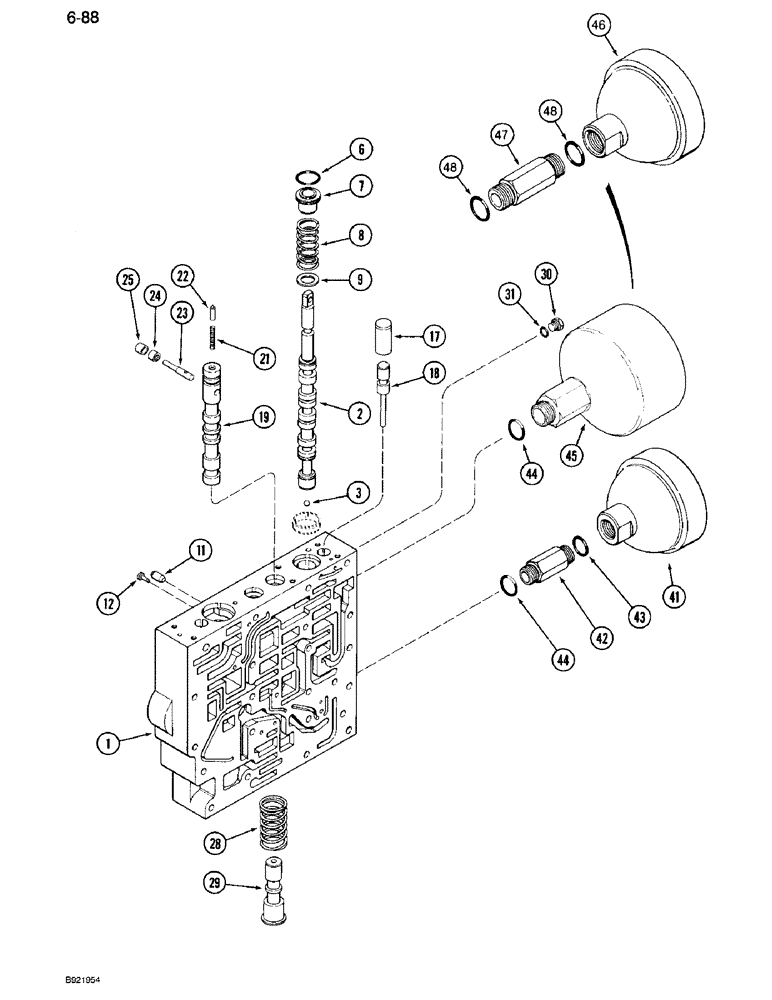

Запчасти Case IH 7110 (6-088) - TRANSMISSION CONTROL VALVE ASSEMBLY, BODY SECTION AND ACCUMULATORS, FOUR SPEED REVERSE VALVES (06) - POWER TRAIN

1981145C2

VALVE

ASSEMBLY - control, without creeper, Includes: Ref. 1 - 48, Serial Range: -AJB0055133

1шт.

1981146C2

VALVE

ASSEMBLY - control, with creeper, Includes: Ref. 1 - 48, Serial Range: -AJB0055133

1шт.

1994672C1

VALVE, CONTROL

VALVE ASSEMBLY - control, without creeper, Includes: Ref. 1 - 48, Serial Range: AJB0055133-AJB0059983

1шт.

1994673C1

VALVE, CONTROL

VALVE ASSEMBLY - control, with creeper, Includes: Ref. 1 - 48, Serial Range: AJB0055133-AJB0059983

1шт.

103182A1

VALVE, CONTROL

VALVE ASSEMBLY - control, without creeper, Includes: Ref. 1 - 48, Start Serial: AJB0059984

1шт.

103183A1

VALVE, CONTROL

VALVE ASSEMBLY - control, with creeper, Includes: Ref. 1 - 48, Start Serial: AJB0059984

1шт.

1

REF

INSTRUCTION

BODY ASSEMBLY - valve, See Figure 6-84

1шт.

2

1963948C5

SPOOL

ASSEMBLY - forward/reverse, Includes: Ref. 3, Serial Range: AJB0055133-AJB0059983

1шт.

2

93145C9

PISTON

SPOOL ASSEMBLY - forward/reverse, Start Serial: AJB0059984

1шт.

3

NSS

NOT SOLD SEPARAT

BALL - steel, 8 mm diameter, 1963948C5 only

1шт.

6

238-5021

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

O RING, -021, 70 Duro, .926" ID x .070" Thk

1шт.

7

1963812C3

INSERT

- seal

1шт.

8

1963822C1

VALVE SPRING

SPRING - detent

1шт.

9

1963818C1

WASHER

- stop

1шт.

11

94771C2

PIN,10.01mm OD x 16.5mm L

- stop, reverse

1шт.

12

94775C1

STOP

- pin

1шт.

17

23097R1

DOWEL,3/4" x 1 1/2"

SPLIT PIN/SAFETY PIN, 3/4" x 1 1/2"

1шт.

18

94798C4

PLUNGER

- valve

1шт.

19

1981069C2

SPOOL

- selector, 1-3-5

1шт.

21

94783C1

VALVE SPRING

SPRING - selector, lock pin

1шт.

22

94781C1

LOCK PIN

PIN - lock, selector

1шт.

23

1286251C3

PIN

- spool, cam

1шт.

24

K620272

BEARING, NEEDLE,Needle, 6.35mm ID x 11.11mm OD x 7.92mm W

BEARING - reaction

1шт.

25

1286264C1

SPACER

- bearing

1шт.

28

92971C1

VALVE SPRING

SPRING - flow, sensor

1шт.

29

1286214C2

SPOOL

- overlap

1шт.

30

9672438

PLUG,7/16" - 20 ORB

Assy, Incl. Ref. 31 Hex Hd, 7/16"-20 ORB

2шт.

31

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

41

117942A1

ACCUMULATOR

RESERVOIR ASSEMBLY - accumulator, odd/even-range, 5.12" dia., Replaces: 93391C4, Serial Range: -AJB0055133

2шт.

41

117942A1

ACCUMULATOR

RESERVOIR ASSEMBLY - accumulator, odd/even, 4.58" dia., Replaces: 93391C4, Serial Range: AJB0055133-AJB0059983

1шт.

41

117942A1

ACCUMULATOR

RESERVOIR ASSEMBLY - accumulator, odd/even, 4.58" dia., Replaces: 93391C4, Start Serial: AJB0059984

1шт.

42

1286252C2

FITTING

CONNECTOR - 7/8-14, used with 1975436C1 reducer, ref. 42A, Serial Range: -AJB0002927

1шт.

42

1542910C1

FITTING

CONNECTOR - 7/8-14 x 1-1/16-12, Start Serial: AJB0002927

1шт.

42a

1975436C1

FITTING

REDUCER - 1-1/16-12 male x 7/8-14 female, if used, not shown, Includes: Ref. 42B

1шт.

42b

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Not shown

1шт.

43

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

44

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

45

1542670C1

ACCUMULATOR

RESERVOIR ASSEMBLY - accumulator, range, 1-3-5, order 93411C3 reservoir, 94778C2 connector, and 2 - 237-6012 O-rings, Ref. 46-48 below, Serial Range: AJB0055133-AJB0059983

1шт.

46

93411C3

ACCUMULATOR

RESERVOIR ASSEMBLY - accumulator, range, 1-3-5, Start Serial: AJB0059984

1шт.

47

116371A1

FITTING

CONNECTOR - 1-1/16-12, Replaces: 94778C2, Start Serial: AJB0059984

1шт.

48

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1-2шт.
