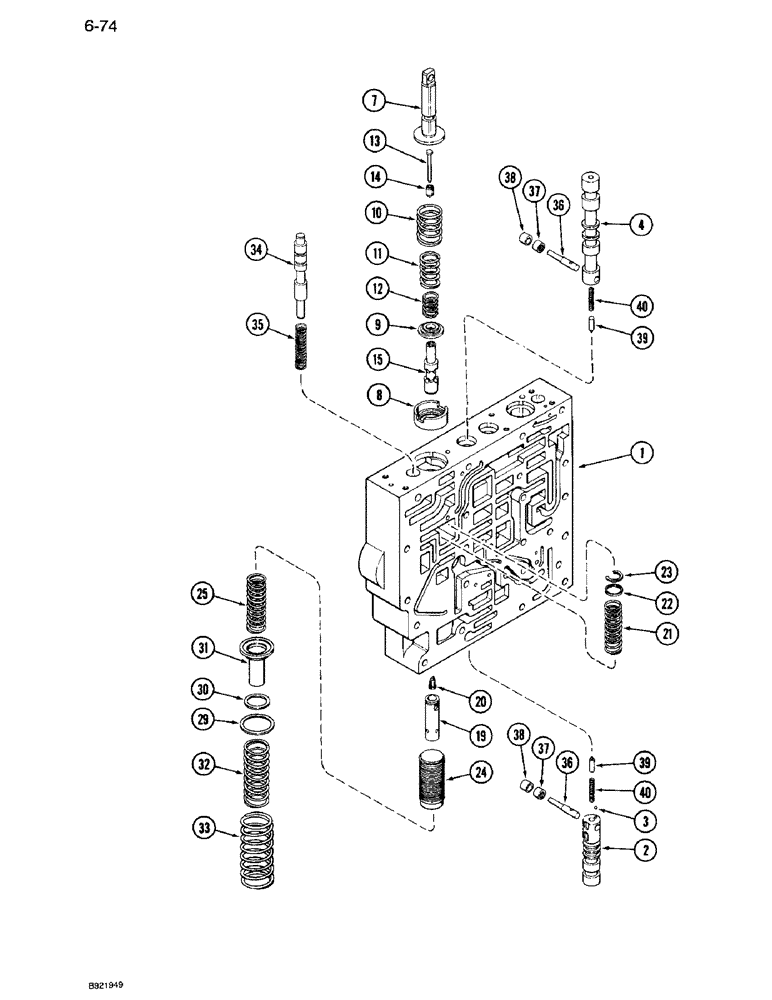

Запчасти Case IH 7110 (6-074) - TRANSMISSION CONTROL VALVE ASSEMBLY, BODY SECTION AND CLUTCH SPOOLS, TWO SPEED REVERSE VALVES (06) - POWER TRAIN

1286200C2

LOCK VALVE

VALVE ASSEMBLY - control, 2-speed reverse, without creeper, order 1981078C1 on Figure 6-60, Includes: Ref. 1 - 40

1шт.

1289333C3

LOCK VALVE

VALVE ASSEMBLY - control, 2-speed reverse, with creeper, See Figure 6-60, Includes: Ref. 1 - 40

1шт.

1

REF

INSTRUCTION

BODY ASSEMBLY - valve, See Figure 6-64

1шт.

2

1963985C1

SPOOL

ASSEMBLY - selector, odd/even clutch, Includes: Ref. 3

1шт.

3

NSS

NOT SOLD SEPARAT

BALL - steel, 2 mm diameter

1шт.

4

93139C5

SPOOL

- selector, high/low

1шт.

1286274C5

SPOOL

ASSEMBLY - control, clutch, Includes: Ref. 7 - 15

1шт.

7

NSS

NOT SOLD SEPARAT

STEM - spool

1шт.

8

NSS

NOT SOLD SEPARAT

STOP - guide, control

1шт.

9

NSS

NOT SOLD SEPARAT

SEAT - spring

1шт.

10

NSS

NOT SOLD SEPARAT

SPRING - return

1шт.

11

NSS

NOT SOLD SEPARAT

SPRING - outer, control

1шт.

12

NSS

NOT SOLD SEPARAT

SPRING - inner, control

1шт.

13

NSS

NOT SOLD SEPARAT

PIN - control, clutch

1шт.

14

NSS

NOT SOLD SEPARAT

PIN - spring

1шт.

15

NSS

NOT SOLD SEPARAT

SPOOL - clutch

1шт.

19

1286135C1

SPOOL

ASSEMBLY - reducing, Includes: Ref. 20

1шт.

20

133519C1

SCREEN

- filter

1шт.

21

1286241C1

VALVE SPRING

SPRING - reducing

1шт.

22

1286189C1

INSULATING WASHER

- retainer, spring

1шт.

23

1286184C1

RING, SNAP

RING - retainer

1шт.

24

92525C3

PISTON ASSY.

PISTON - spool

1шт.

25

92530C1

SPRING

- piston

1шт.

29

1286223C1

SHIM

- spring, outer

1шт.

30

1286224C1

SHIM

- spring, inner

1шт.

31

92534C2

GUIDE

- spring, modulating

1шт.

32

1286242C1

VALVE SPRING

SPRING - modulating, inner

1шт.

33

1286243C1

VALVE SPRING

SPRING - modulating, outer

1шт.

34

92936C3

SPOOL

- safety

1шт.

35

92976C1

VALVE SPRING

SPRING - safety, spool

1шт.

36

1286251C3

PIN

- spool, cam

2шт.

37

K620272

BEARING, NEEDLE,Needle, 6.35mm ID x 11.11mm OD x 7.92mm W

BEARING - reaction

2шт.

38

1286264C1

SPACER

- bearing

2шт.

39

94781C1

LOCK PIN

PIN - lock, selector

2шт.

40

94783C1

VALVE SPRING

SPRING - selector, lock pin

2шт.
