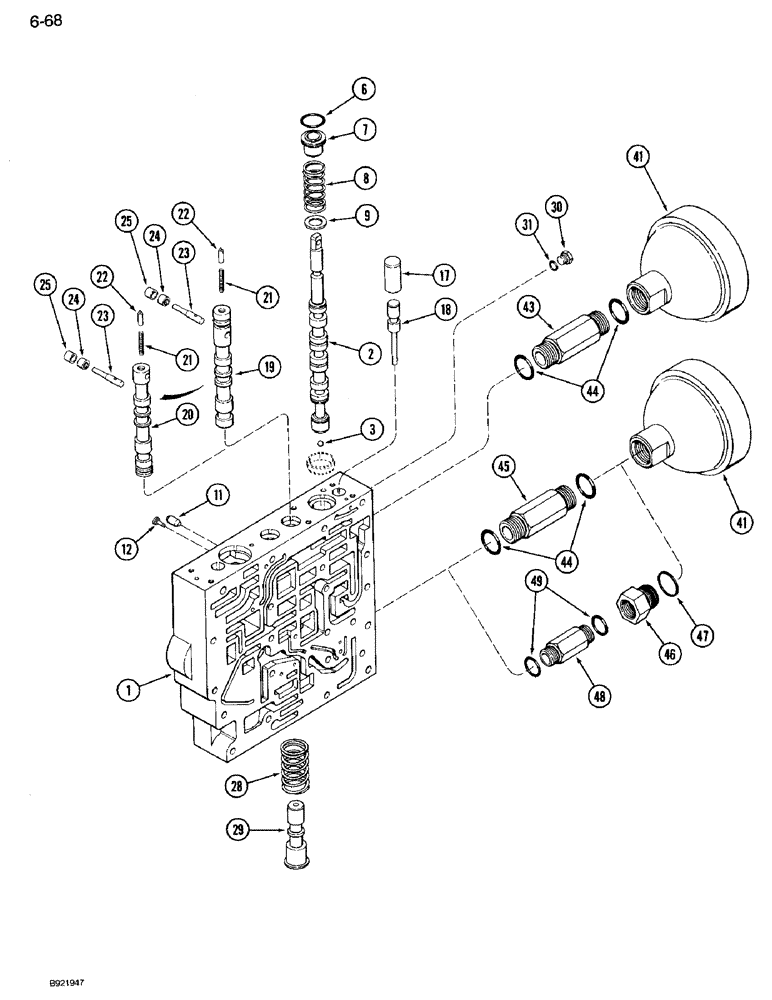

Запчасти Case IH 7110 (6-068) - TRANSMISSION CONTROL VALVE ASSEMBLY, BODY SECTION AND ACCUMULATORS, TWO SPEED REVERSE VALVES (06) - POWER TRAIN

1286200C2

LOCK VALVE

VALVE ASSEMBLY - control, 2-speed reverse, without creeper, order 1981078C1 on Figure 6-60, Includes: Ref. 1 - 49

1шт.

1289333C3

LOCK VALVE

VALVE ASSEMBLY - control, 2-speed reverse, with creeper, See Figure 6-60, Includes: Ref. 1 - 49

1шт.

1

REF

INSTRUCTION

BODY ASSEMBLY - valve, See Figure 6-64

1шт.

2

1963948C5

SPOOL

ASSEMBLY - forward/reverse, with pressed in ball, if used

1шт.

2

93145C9

PISTON

SPOOL - forward/reverse, without ball, if used, Includes: Ref. 3

1шт.

3

NSS

NOT SOLD SEPARAT

BALL - 8 mm diameter, 1963948C5 spool only

1шт.

6

238-5021

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

-021, 70 Duro, .926" ID x .070" Thk

1шт.

7

1963812C3

INSERT

- seal

1шт.

8

1963822C1

VALVE SPRING

SPRING - detent

1шт.

9

1963818C1

WASHER

- stop

1шт.

11

94771C2

PIN,10.01mm OD x 16.5mm L

- stop, reverse

1шт.

12

94775C1

STOP

- pin

1шт.

17

23097R1

DOWEL,3/4" x 1 1/2"

PIN - dowel, 3/4 x 1-1/2 inch

1шт.

18

94798C4

PLUNGER

- valve

1шт.

19

1981069C2

SPOOL

- selector, 1-3-5, if equipped, see Ref. 1, Figure 6-64

1шт.

20

93197C3

SPOOL

- selector, 1-3-5, if equipped - see Ref. 1, Figure 6-64

1шт.

21

94783C1

VALVE SPRING

SPRING - selector, lock pin

1шт.

22

94781C2

LOCK PIN

PIN - lock, selector

1шт.

23

1286251C3

PIN

- spool, cam

1шт.

24

K620272

BEARING, NEEDLE,Needle, 6.35mm ID x 11.11mm OD x 7.92mm W

BEARING - reaction

1шт.

25

1286264C1

SPACER

- bearing

1шт.

28

92971C1

VALVE SPRING

SPRING - flow, sensor

1шт.

29

1286214C2

SPOOL

- overlap

1шт.

30

9672438

PLUG,7/16" - 20 ORB

Assy, Incl. Ref. 31 Hex Hd, 7/16"-20 ORB

2шт.

31

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

41

93411C3

ACCUMULATOR

- range, 1-3-5 and odd/even, Replaces: 93411C2

2шт.

43

94778C2

FITTING

CONNECTOR - 1-1/16-12 inch O-ring boss

1шт.

44

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

45

94778C2

FITTING

CONNECTOR - 1-1/16-12 inch O-ring boss, Start Serial: AJB0002927

1шт.

46

1975436C1

FITTING

REDUCER ASSEMBLY - 1-1/16-12 male x 7/8-14 inch female O-ring, Includes: Ref. 47, Serial Range: -AJB0002927

1шт.

47

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

48

1286252C2

FITTING

CONNECTOR - 7/8-14 inch O-ring boss, Serial Range: -AJB0002927

1шт.

49

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.
