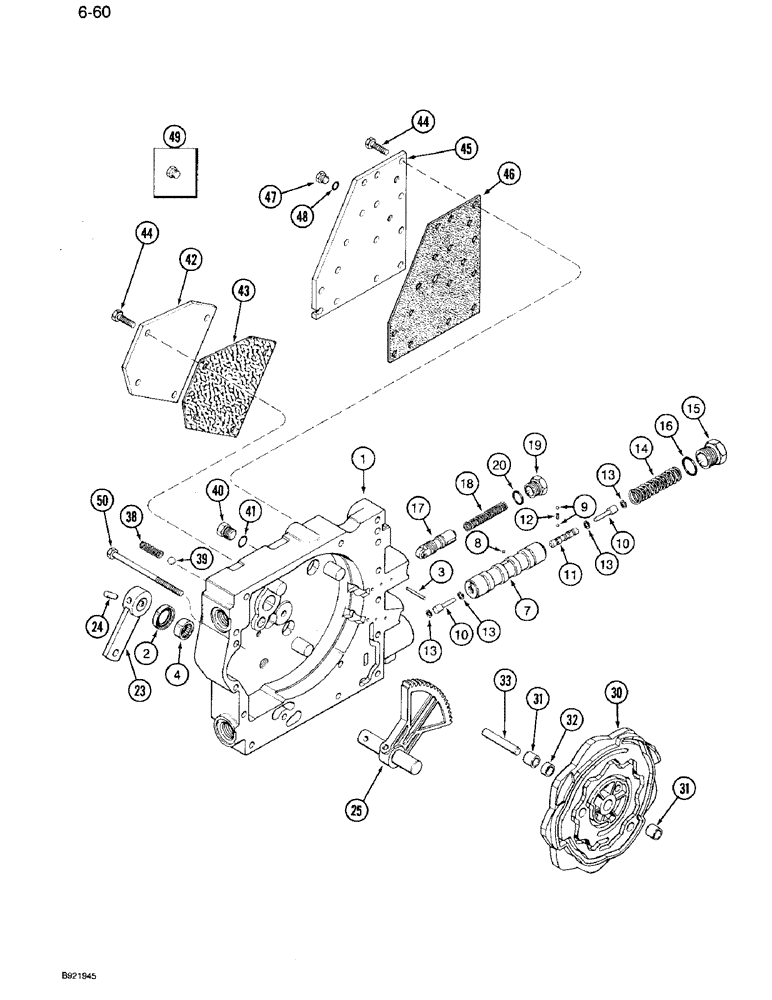

Запчасти Case IH 7110 (6-060) - TRANSMISSION CONTROL VALVE ASSEMBLY, CAM HOUSING SECTION, TWO SPEED REVERSE VALVES (06) - POWER TRAIN

1981078C1

SET OF PARTS

VALVE KIT - control, 2-speed reverse, without creeper, Includes: Figures on 6-58, 6-76, and Ref. 43 this figure, Includes: Ref. 1 - 50

1шт.

1286200C2

LOCK VALVE

VALVE ASSEMBLY - control, 2-speed reverse, without creeper, order 1981078C1, Includes: Ref. 1 - 50, Serial Range: -AJB0014000

1шт.

1289333C3

LOCK VALVE

VALVE ASSEMBLY - control, 2-speed reverse, with creeper, Includes: Ref. 1 - 50, Serial Range: -AJB0014000

1шт.

1

1286277C5

HOUSING

ASSEMBLY - cam, Includes: Ref. 2 - 4

1шт.

2

G105118

OIL SEAL

- oil, Replaces: A50421

1шт.

3

26081R1

DOWEL,1/8" x 1 1/4"

PIN - dowel, 1/8 x 1-1/4 inch

2шт.

4

D65128

NEEDLE BEARING,Needle, 19.05mm ID x 25.4mm OD x 9.53mm W

BEARING - shaft

1шт.

7

94777C5

SPOOL

ASSEMBLY - drive, detent, Includes: Ref. 8 - 13

1шт.

8

31271R1

BALL,2mm Dia

- 2 mm diameter

3шт.

9

31279R1

BALL,2.5mm Dia

- 2.5 mm diameter

4шт.

10

NSS

NOT SOLD SEPARAT

STOP - spool, pilot

2шт.

11

NSS

NOT SOLD SEPARAT

SPOOL - pilot

1шт.

12

NSS

NOT SOLD SEPARAT

SPRING - friction, shuttle

2шт.

13

321298R1

SNAP RING,0.375", Int, #37

Ring, Snap, 0.375", Int, #37

4шт.

14

1963882C1

VALVE SPRING

SPRING - shuttle, detent

1шт.

15

1963881C1

PLUG

- spool, drive

1шт.

16

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

17

93099C4

COMPRESSION SPRING

DETENT - cam

2шт.

18

1286235C1

VALVE SPRING

SPRING - detent, cam

2шт.

19

92957C1

PLUG

- detent

2шт.

20

876106C1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 8, 90 Duro

- 41/64 ID x 3/32 inch

2шт.

23

1283927C1

LEVER

- speed

1шт.

24

30324R1

DOWEL,M8 x 20

PIN - dowel, 8 x 20 mm

1шт.

25

92498C1

SHAFT

- control cam

1шт.

30

93097C2

CAM

ASSEMBLY - gear selector, Includes: Ref. 31 and 32

1шт.

31

A35822

NEEDLE BEARING,Needle, 9.52mm ID x 14.29mm OD x 12.7mm W

BEARING - cam

2шт.

32

1286263C2

CAMSHAFT BEARING

- bearing, cam

1шт.

33

92945C1

SHAFT

- cam

1шт.

38

92972C3

SPRING

- compression

1шт.

39

211-210

BALL,3/8" Dia

- detent, 3/8 inch diameter

1шт.

40

76349

PLUG,9/16" - 18 ORB

Assy, If equipped, Incl. Ref. 41 Hex Hd, 9/16"-18 ORB

2шт.

41

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

42

1286209C3

PLATE ASSY.

PLATE - cover, valve

1шт.

43

1286265C4

GASKET

- plate, cover

1шт.

Part of Mounting Plate Kit, P/N 1975531C1

1шт.

Part of Body Plate Kit, P/N 1975530C1

1шт.

Part of Control Valve Kit, P/N 1981078C1

1шт.

44

REF

INSTRUCTION

BOLT - hex, 8 x 25 mm, See Figure 6-76

1шт.

45

1981142C1

LARGE PLATE

PLATE - cover, valve

1шт.

46

92654C5

GASKET

- plate, cover, Replaces: 92654C4

1шт.

47

86529630

PLUG,Hex Soc, 3/8"-24 ORB

Assembly, Includes Ref. 48 Hex Soc, 3/8"-24 ORB

2шт.

48

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

49

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket, 1/8 inch PT, use with plate 92644C3 only

2шт.

50

REF

INSTRUCTION

BOLT - hex, 8 x 120 mm, class 10.9, See Figure 6-76

1шт.

1975531C1

PACKAGE

PLATE KIT - mounting, Includes: Ref. 43, See Figure 6-58

1шт.

1975530C1

PACKAGE

PLATE KIT - body, Includes: Ref. 43, See Figure 6-64

1шт.

1981078C1

SET OF PARTS

VALVE KIT - control, Includes: Ref. 43, See Figure 6-60

1шт.
