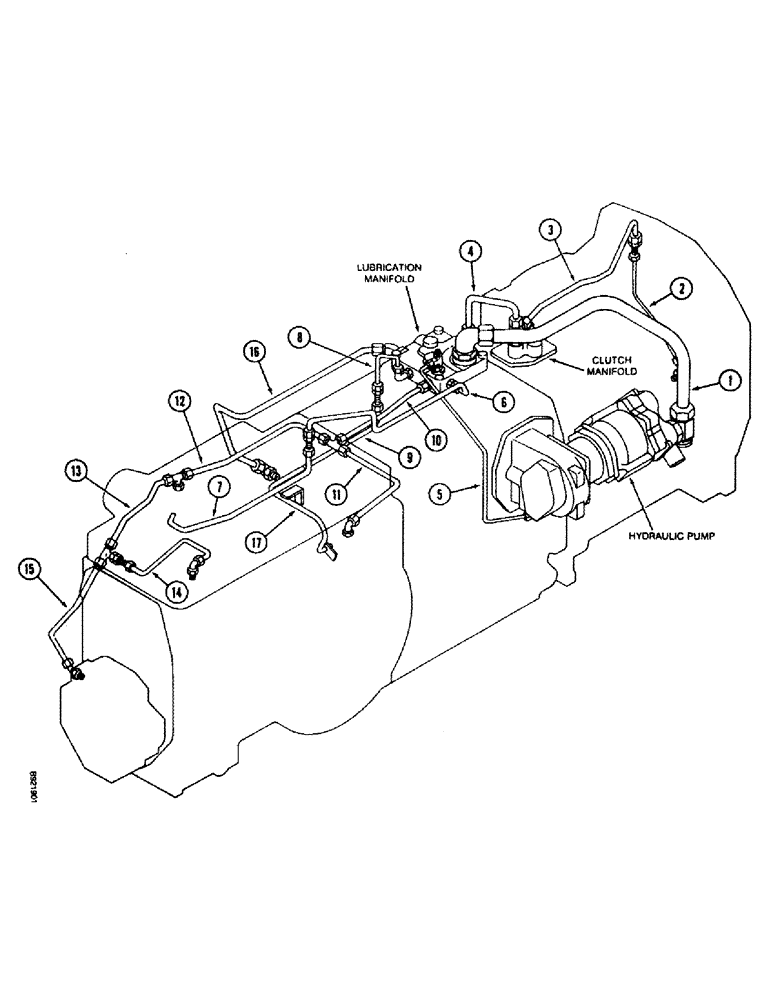

Запчасти Case IH 7110 (1-18) - PICTORIAL INDEX, LUBRICATION HYDRAULICS, PRIOR TO TRANSMISSION SERIAL NUMBER AJB0044915 (00) - PICTORIAL INDEX

1

Manifold Lubrication Tube, Pg 8-27

1шт.

2

Lubrication Supply Tube, Pg 6-23

1шт.

3

Creeper Drive Lubrication Tube, Pg 6-47

1шт.

4

Clutch Lubrication Tube, Pg 6-47

1шт.

5

Pump Drive Lubrication Tube, Pg 6-47

1шт.

6

Cylinder External Lubrication Tube, Pg 8-43

1шт.

7

Internal Lubrication Tube, Pg 8-43

1шт.

8

Range Spray Lubrication Tube, Pg 6-47

1шт.

9

Range Lubrication Tube, Pg 6-47

1шт.

10

Main Supply Lubrication Tube, Pg 6-49

1шт.

11

Right Brake Lubrication Tube, Pg 6-49

1шт.

12

Left Brake Lubrication Tube, Pg 6-49

1шт.

13

PTO Shaft Lubrication Tube, Pg 6-49

1шт.

14

Lubrication Gear Tube, Pg 6-173

1шт.

15

PTO Rear Lubrication Tube, Pg 6-49

1шт.

16

Range Input Lubrication Tube, Pg 6-47

1шт.

17

Bevel Gear Lubrication Tube, Pg 6-123

1шт.
