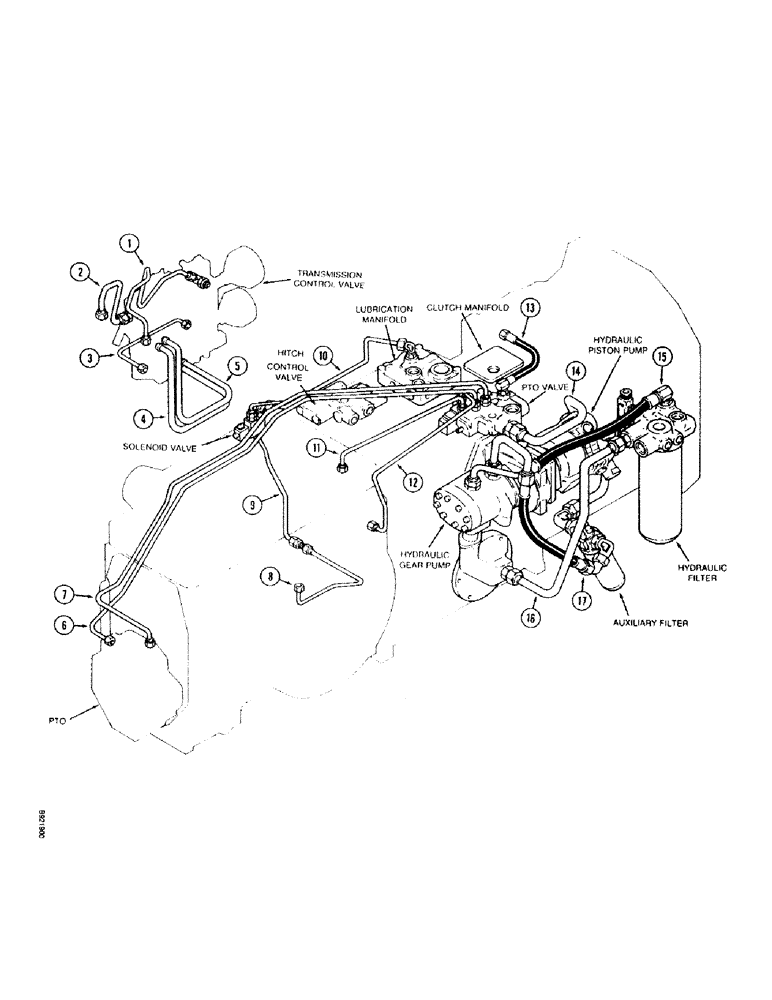

Запчасти Case IH 7110 (1-16) - PICTORIAL INDEX, MAIN HYDRAULICS, TRANSMISSION SERIAL NUMBER AJB0055386 AND AFTER (00) - PICTORIAL INDEX

1

Valve Inlet Tube, Pg 6-57

1шт.

2

Master Clutch Tube, Pg 6-57

1шт.

3

Jumper Tube, Pg 6-57

1шт.

4

Odd Clutch Tube, Pg 6-57

1шт.

5

Even Clutch Tube, Pg 6-57

1шт.

6

PTO Clutch Tube, Pg 8-13

1шт.

7

PTO Brake Tube, Pg 8-13

1шт.

8

Transmission Pressure Tube, Pg 6-31

1шт.

9

Valve Pressure Tube, Pg 8-21

1шт.

10

Valve Return Tube, Pg 8-21

1шт.

11

Regulator Valve Return Tube, Pg 8-13

1шт.

12

Differential Lock Tube, Pg 8-13

1шт.

13

PTO Drain Hose, Pg 8-13

1шт.

14

Auxiliary Filter to PTO Valve Tube, Pg 8-9

1шт.

15

Pump to Filter Hose Assembly, Pg 8-7

1шт.

16

Filter Return Tube, Pg 8-7

1шт.

17

Auxiliary Filter to Pump Hose Assembly, Pg 8-9

1шт.
