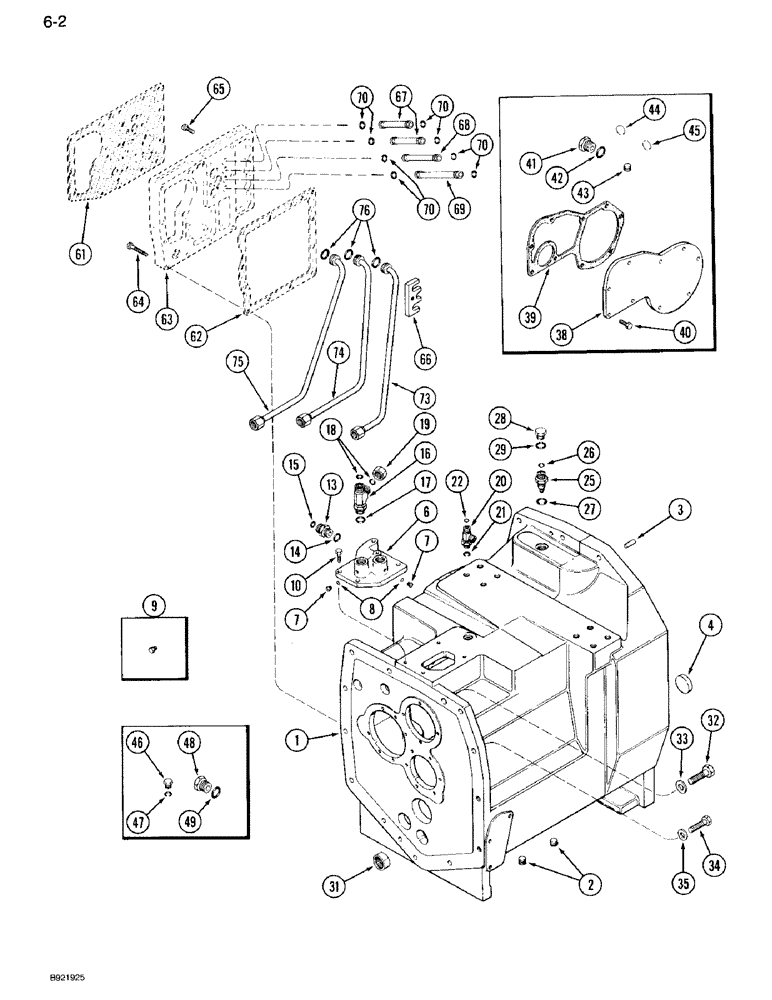

Запчасти Case IH 7110 (6-002) - CLUTCH HOUSING, PRIOR TO TRANSMISSION SERIAL NUMBER AJB0055133 (06) - POWER TRAIN

1

93356C3

HOUSING

ASSEMBLY - clutch, Includes: Ref. 2 - 4

1шт.

2

273469

PLUG

- square countersink, 3/4-12 inch thread

2шт.

3

837-12030

DOWEL,M12 x 30mm OAL

2шт.

4

30357R1

PLUG,M50, Tapered

- tapered cup, 50 mm, without MFD

1шт.

6

1981141C1

MANIFOLD

- clutch

1шт.

7

86529630

PLUG,Hex Soc, 3/8"-24 ORB

Assembly, Replaces 217-84, Includes Ref. 8 Hex Soc, 3/8"-24 ORB

4шт.

8

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

9

217-84

PLUG,Hex Hd, 1/8"-27, Brass

- hex, 1/8 inch PT, use with 1963889C2 only

4шт.

10

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

3шт.

10

828-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

1шт.

13

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

CONNECTOR, HYD., , Includes Ref. 14 and 15 1"-14 ORFS x 7/8"-14 ORB

2шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Boss end

1шт.

15

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face end -016, 90 Duro, .614" ID x .070" Thk

1шт.

16

201-420

TEE,1"-14 x 7/8"-14 Run, ORFS

- 1-14 face branch x face x 7/8-14 inch adj O-ring, Includes: Ref. 17 and 18

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Boss end

1шт.

18

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face end -016, 90 Duro, .614" ID x .070" Thk

2шт.

19

201-906

CAP,1"-14 ORFS

- hex, 1 inch thread, without creep

1шт.

20

201-406

TEE,11/16"-16 x 9/16"-18 Run, ORFS

Adj, Incl Ref 21 and 22 11/16"-16 x 9/16"-18 Run, ORFS

1шт.

22

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face end -012, 90 Duro, .364" ID x .070" Thk

2шт.

25

93105C1

UNION

ADAPTER - bulkhead, 13/16-16 face x 3/4-16 inch O-ring, with creeper

1шт.

26

G102845

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- 31/64 ID x 5/64 inch, face end

1шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Boss end

1шт.

28

214389

PLUG,3/4" - 16 ORB

without creep, Includes Ref. 29 Hex Hd, 3/4"-16 ORB

1шт.

29

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

31

38834

ROLLER BEARING,Needle, 34.92mm ID x 41.29mm OD x 19.05mm W

BEARING ASSEMBLY - needle

1шт.

32

628-20060

SCREW,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

BOLT - hex, 20 - 2.5 x 60 mm, class 10.9

1шт.

33

896-12020

WASHER,22mm ID x 37mm OD x 4mm Thk

- flat, 22 x 37 x 4 mm

1шт.

34

813-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 8.8

Hex, M16 x 55, 8.8

9шт.

35

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

Flat M17.5 x 30 x 4, HT

9шт.

38

1289110C1

PLATE ASSY.

PLATE - cover, filter base

1шт.

39

139228C1

GASKET

- base

1шт.

40

30020R1

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, 10 x 25 mm

9шт.

41

9410361

PLUG

- hex, 1-1/16 inch thread, if equipped

1шт.

42

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

43

217-470

DRAIN PLUG,Sq Soc, 3/4" - 14 NPTF

PLUG - hex, 3/4 inch thread, if equipped

1шт.

44

30591R1

PLUG,M25, Tapered

- cup, 25 mm, if equipped

1шт.

45

318300R1

PLUG,Cup, 1"

- cup, 1 inch, if equipped

1шт.

46

76349

PLUG,9/16" - 18 ORB

Assy, Incl. Ref. 47 Hex Hd, 9/16"-18 ORB

1шт.

48

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

ASSEMBLY - hex, 1-1/16-12 inch O-ring boss, Includes: Ref. 49

1шт.

49

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

61

REF

INSTRUCTION

GASKET - body plate to mounting plate, See Figures 6-58 and 6-78

1шт.

62

REF

INSTRUCTION

GASKET - mounting plate to clutch housing, See Figures 6-58 and 6-78

1шт.

63

REF

INSTRUCTION

PLATE ASSEMBLY - mounting, transmission control valve, See Figures 6-58 and 6-78

1шт.

64

814-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8

4шт.

65

905261R1

HEX SOC SCREW,M10 x 40mm, Cl 12.9

BOLT - hex socket, 10 x 40 mm, Grade 12.9

2шт.

66

1286093C1

RETAINER

- tube

1шт.

67

1963936C1

TUBE,12.95 mm ID, 17 mm OD

- first, second, third and fourth speed, steel

2шт.

67

1342637C1

TUBE,12.95 mm ID, 19 mm OD

- first, second, third, fourth speed

2шт.

68

1963937C1

TUBE,12.95 mm ID, 17 mm OD

- fifth and sixth speed, steel

1шт.

68

1342638C1

TUBE,12.7 mm ID, 19 mm OD

- fifth and sixth speed

1шт.

69

1963938C1

TUBE,12.95 mm ID, 17 mm OD

- reverse, steel

1шт.

69

1342639C1

TUBE,12.7 mm ID, 19 mm OD

- reverse

1шт.

70

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

8шт.

73

1286090C1

HYD TUBE

TUBE - clutch, low

1шт.

74

1286091C1

HYD TUBE,0.625" OD, 505.7, 141 mm Length

TUBE - clutch, front medium

1шт.

75

1286092C1

HYD TUBE

TUBE - clutch, front high

1шт.

76

238-6212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 6, 90 Duro

3шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.

47

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
