(5-62) - FRONT WHEELS, TWO WHEEL DRIVE

Запчасти Case IH 7110 (5-62) - FRONT WHEELS, TWO WHEEL DRIVE (05) - STEERING

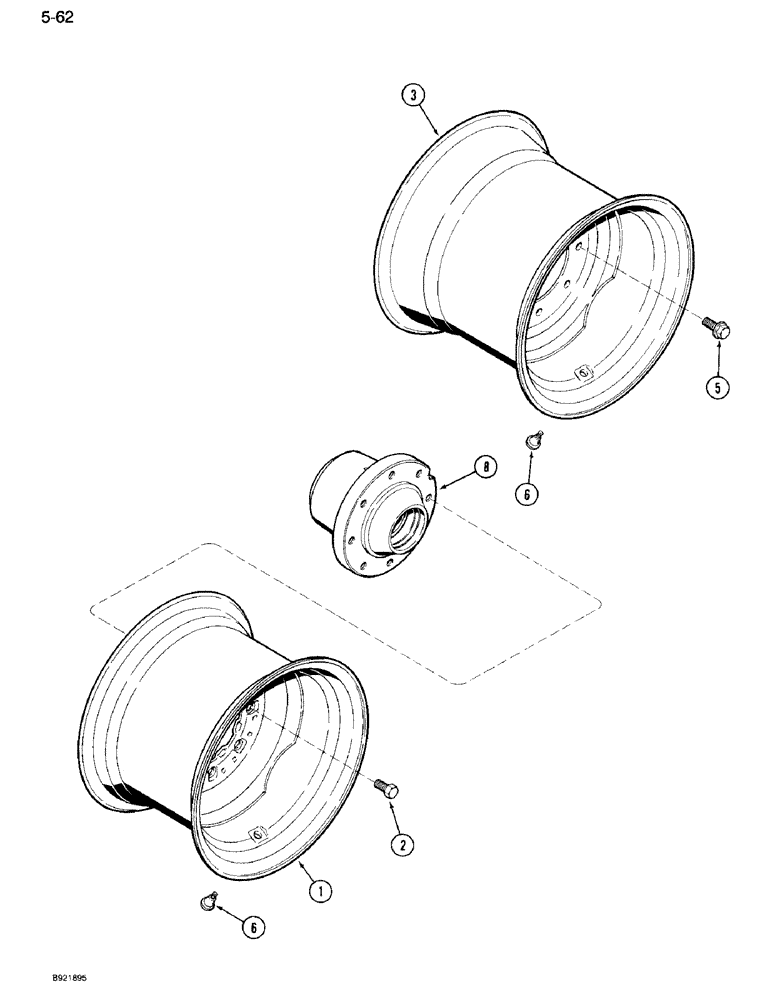

Схема запчастей Case IH 7110 - (5-62) - FRONT WHEELS, TWO WHEEL DRIVE (05) - STEERING
5
3
2
8
6
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1270630C1

RIM

WHEEL - front, for 11.00 x 16 tire

2шт.

2

403538R2

WHEEL BOLT,Hex, 9/16" - 18 x 1.21"

BOLT - hex special

16шт.

3

1270629C1

RIM

WHEEL - front, for 14 x 16.1 tire

2шт.

3

1270628C1

RIM

WHEEL - front, for 16.5 x 16.1 tire

2шт.

5

1342033C1

BOLT

- hex flange special

16шт.

6

A38261

VALVE

- tire, tubeless

2шт.

8

REF

INSTRUCTION

HUB ASSEMBLY - wheel, front, See Figure 5-40

2шт.
