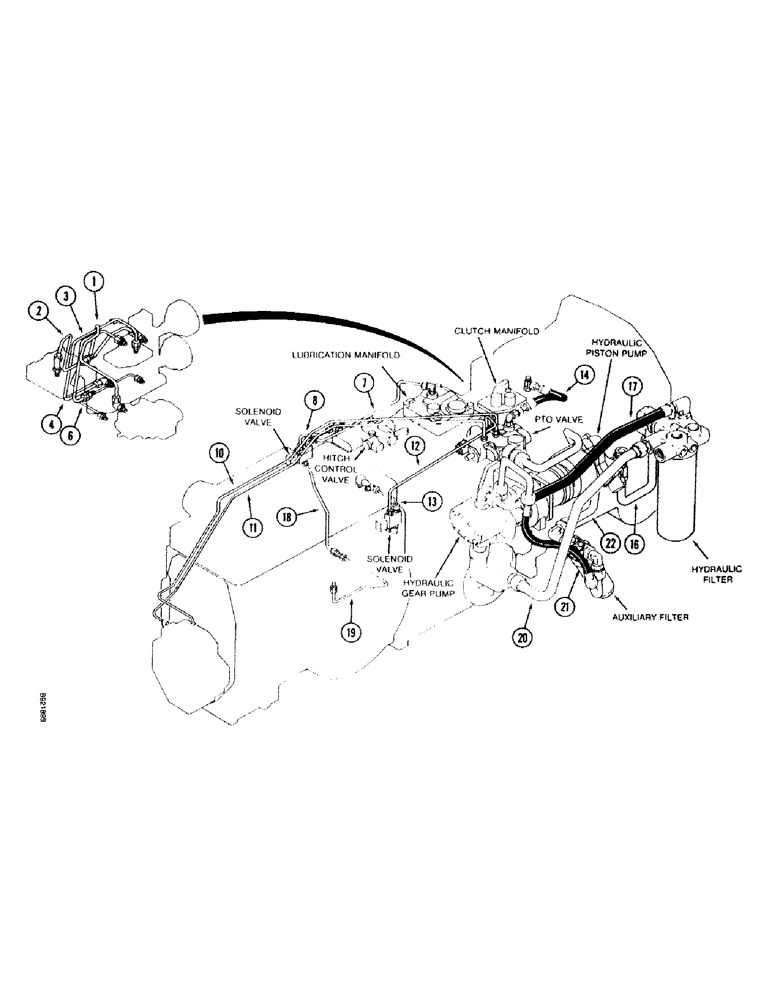

Запчасти Case IH 7110 (1-14) - PICTORIAL INDEX, MAIN HYDRAULICS, TRANSMISSION SERIAL NUMBER AJB0044915 THROUGH AJB0055385 (00) - PICTORIAL INDEX

1

Valve Inlet Tube, Pg 6-55, 6-57

1шт.

2

Master Clutch Tube, Pg 6-55, 6-57

1шт.

3

Odd Clutch Tube, Pg 6-55, 6-57

1шт.

4

Even Clutch Tube, Pg 6-55, 6-57

1шт.

6

Jumper Tube, Pg 6-55, 6-57

1шт.

7

Valve Return Tube, Pg 8-21

1шт.

8

Valve Supply Tube, Pg 8-21

1шт.

10

PTO Clutch Tube, Pg 8-13

1шт.

11

PTO Brake Tube, Pg 8-13

1шт.

12

Differential Lock Supply Tube, Pg 8-23

1шт.

13

Differential Lock Return Tube, Pg 8-23

1шт.

14

PTO Drain Tube, Pg 8-13

1шт.

16

Pump Inlet Tube, Pg 8-29

1шт.

17

Pump to Filter Hose, Pg 8-5, 8-29

1шт.

18

Valve Pressure Tube, Pg 8-21

1шт.

19

Transmission Pressure Tube, Pg 6-31

1шт.

20

Filter Return Tube, Pg 8-5

1шт.

21

Pump to Auxiliary Filter Hose, Pg 8-9

1шт.

22

Auxiliary Filter to PTO Valve Tube, Pg 8-9

1шт.
